THREE-POINT HITCH & DRAWBAR
6
-
4
LK30 / LK35
The drawbar load rating is listed in the
“IMPLEMENT LIMITATIONS” section.

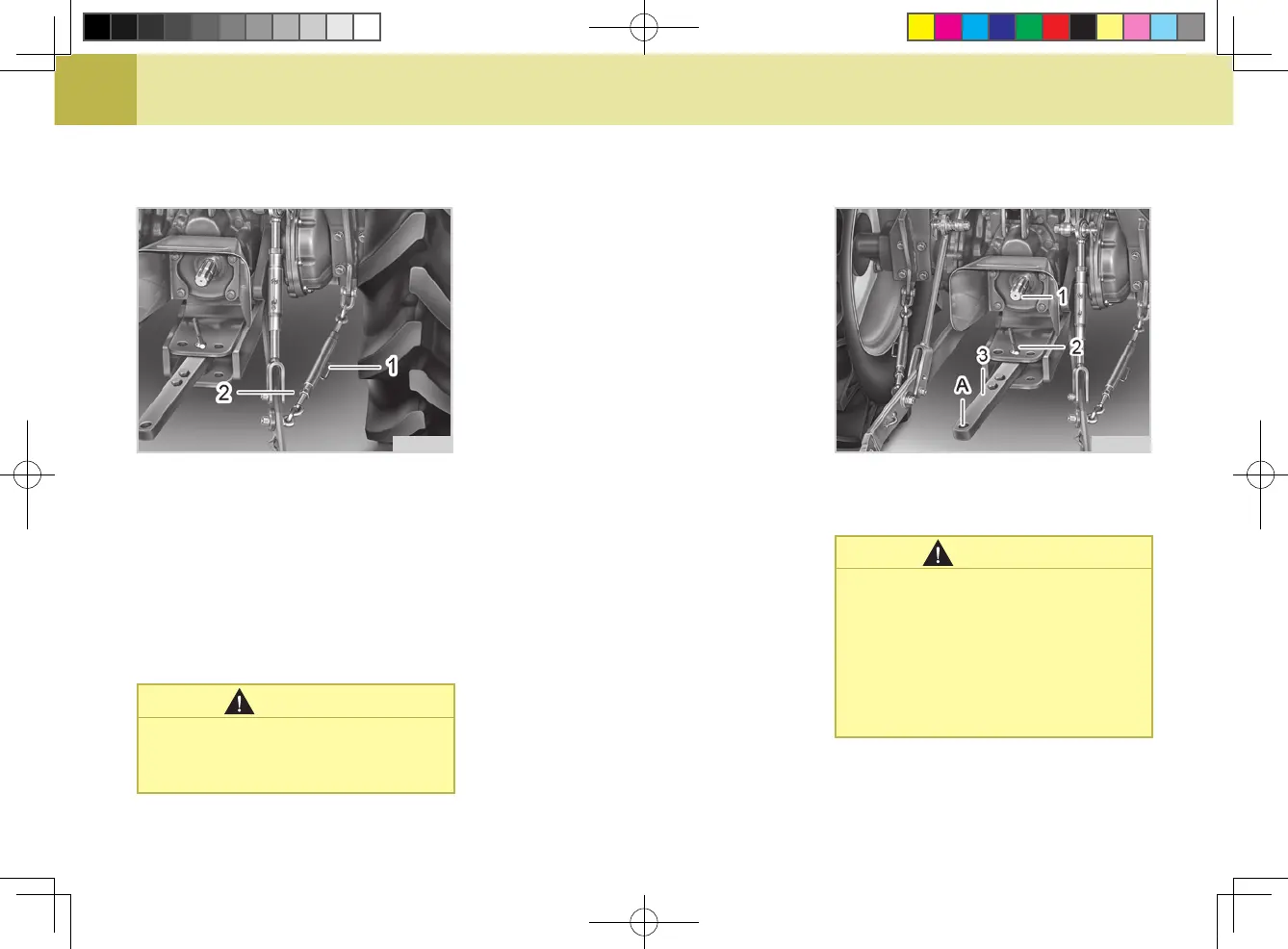

DRAWBAR
(1) P.T.O Shaft (3) Drawbar
(2) Drawbar Pin (A) Holes
CHECK CHAIN
Check Chain are used to adjust the
side sway that your implement has
while in use. Check Chain are also
used to center the implement on the
rear of the tractor.
(1) Turn Buckle (2) Nut
S41O604aS41O603a
Adjust the check chain so that the
implement can move 5 to 6 cm(2.0 to
2.4 in.) laterally.
Check chain shouid be tight enough to
prevent excessive implement move-
ment when implement is in raised po-
sition.
Use caution when adjusting
the check chain. Heavy imple-
ment can move causing harm.
WARNING
To avoid personal injury:
Never pull from the top link, the
rear axle or any point above
the drawbar. Doing so could
cause the tractor to tip over
rearward causing personal in-
jury or death.
WARNING
