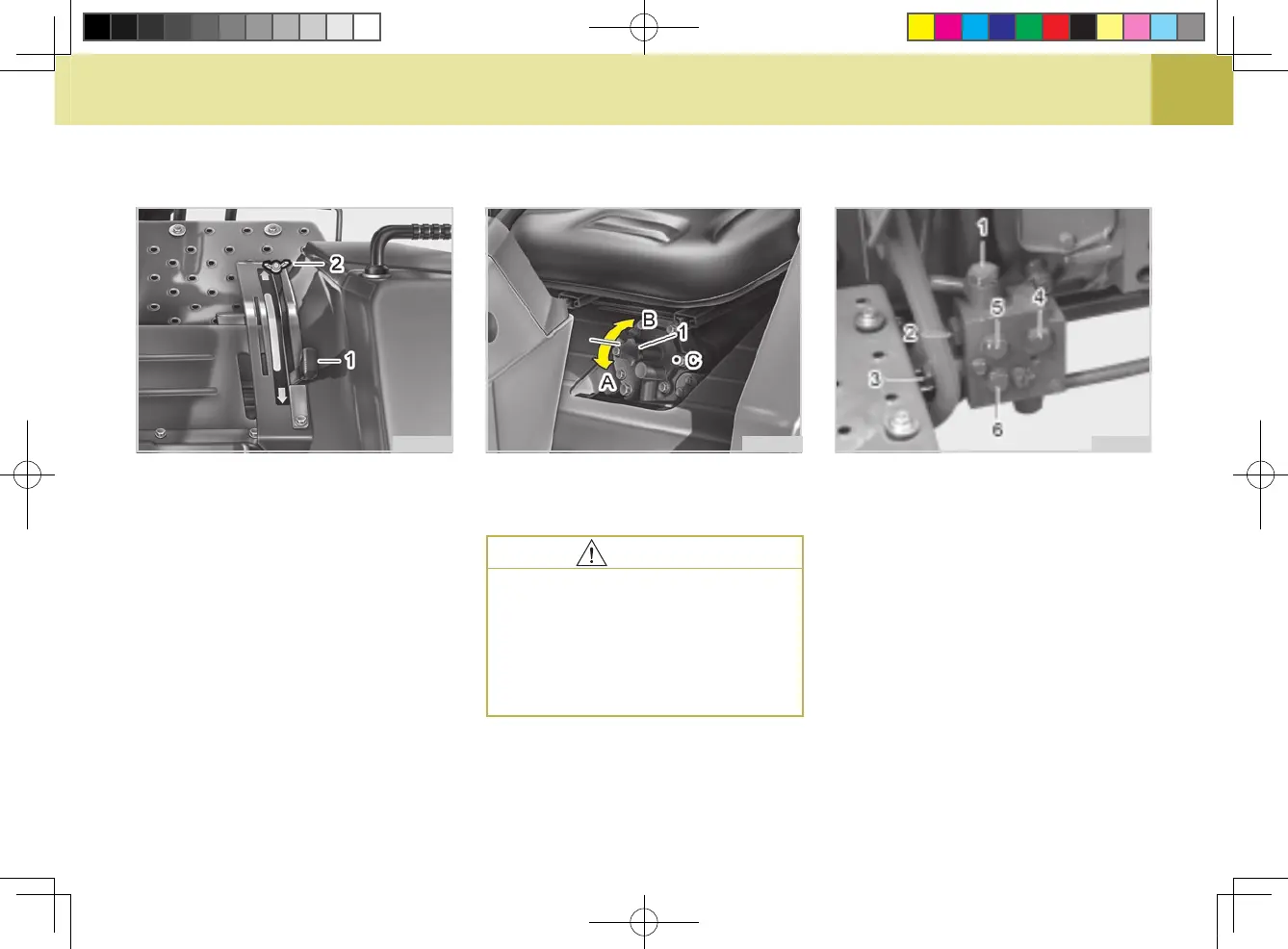

(1) Position Control Lever
(2) Lock Bolt
IMPLEMENT LOWERING LIMIT
The lower limit can be adjusted by
moving the position of the locker.
IMPLEMENT LOWERING LIMIT
Shifting the locker backward raises
the lower limit and shifting the locker
forward lowers the lower limit.
The lowering speed of the 3-point
hitch can be controlled by adjusting
the 3-point lowering speed knob.
(1) 3-Point Lowering Speed Knob
(A) “FAST” (B) “SLOW”
(C) “LOCK”
3-POINT HITCH LOWERING
SPEED
T46O703AT46O702A
AUXILIARY VALVE
HYDRAULIC RELIEF VALVE
(1) To the Tank
(2) Relief Valve
(3) To The Hydraulic Cylinder
(4) OUT PORT (To The Exterior Implement)
(5) IN PORT (“T” PORT Of The Exterior
Implement)
(6) R PORT (Carry-Over Port Of The
Exterior Implement)
T46O705A
To avoid personal injury:
Fast lowering speed may
cause damage or injury. Low-
ering speed of implement
should be adjusted to two or
more seconds.
CAUTION
To Next Page
