Kirk SKPM - Type SKPM

®
KIRK Solenoid Panel Mounted (
The SKPM consists of a keyed interlock, a solenoid, and a pair of auxiliary switches (2 N.O. and 2
N.C. contacts). The SKPM is designed to permit removal of the interlock key in response to an
electric signal. Upon energizing the solenoid, the key can be turned and released. Turning the key
operates the auxiliary switch.
Type SKPM)
PAGE 2

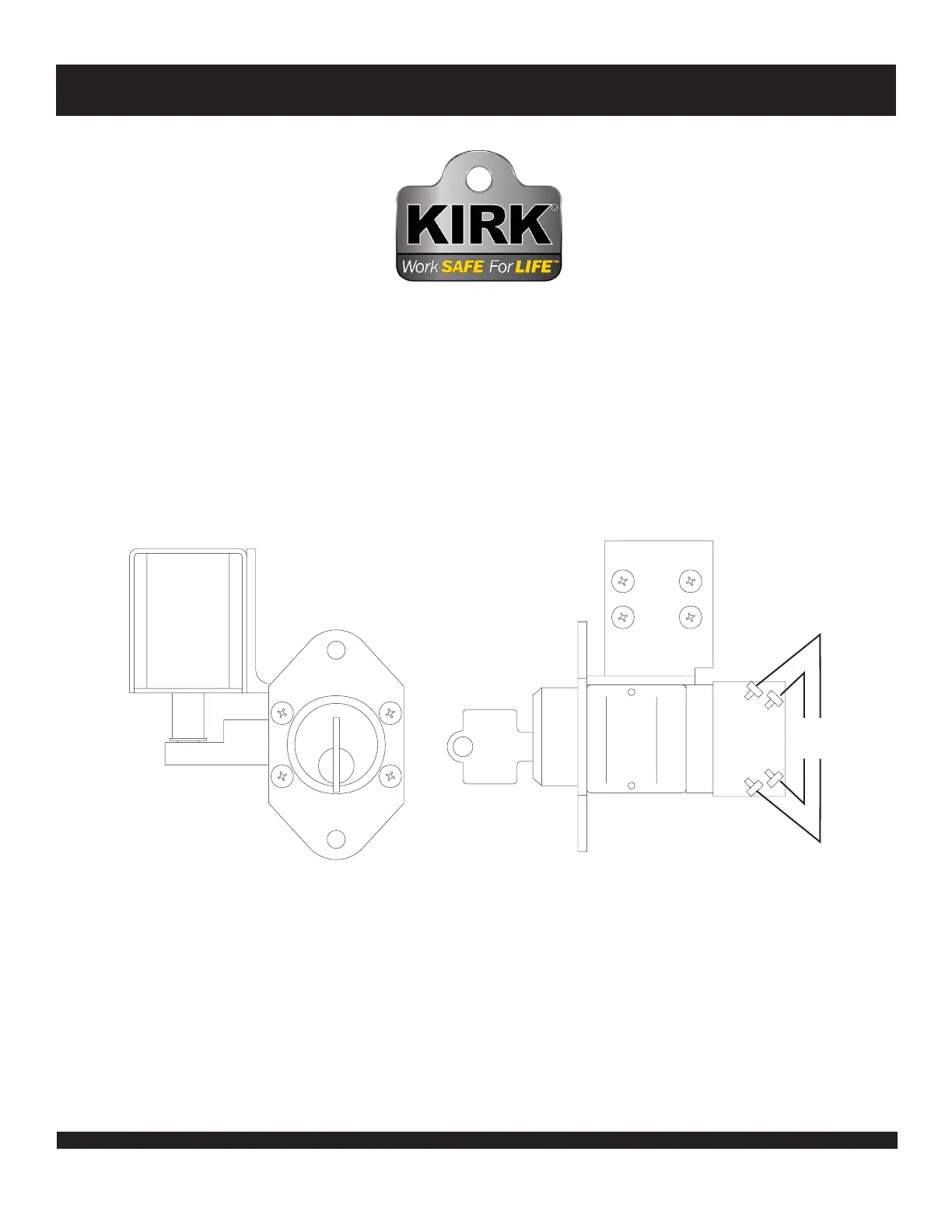

NOT E : The ke y i s h e ld in th e S K P M until th e s o l e noid is e n e r gized. T h e d rawing sh o w s t h e positio n of th e c o n ta c ts w hen the key i s held. Onc e t h e
solenoid is energized and the key is rotated and released, the contacts will change state.
FRONT VIEW
SIDE VIEW
N.C. N.O.
Instruction Manual for:
Solenoid Key Release Unit and Time Delay Key Release Unit
SKPM Wiring Instructions
1) Mount SKPM in the panel or enclosure.
2) Connect solenoid leads to the appropriate circuit.
3) Wire the auxiliary contacts (if required).
4) Test the wiring to verify that the circuitry corresponds to the proper key position (trapped vs.
free).
IB/KRU/06
