KIRLOSKAR Non-Clog Submersible Series User Manual

10
This is a proprietary document of Kirloskar Brothers Limited,
YAMUNA’ Survey No. 98/ 3 to 7, Baner, Pune
–
411045, India.
NS IOM MANUAL
1
Sept
2018
CABLE
CABLE P R O T E C T ION
TUBE
CABLE G LAND
MOTO R END
COVER
HOLDER
GUIDE
PIPE
RUB BER
DIAPHRAG M
GUIDE
SH O E
DUC K F O O T
BEND
GUIDE
PIPE
AD A PTE R
EYE
BOLTS
MOTO R END
COVER
CABLE
BR A CKET
STU FF ING
BOX BU SH
CASIN G
STA ND
SUPPORT
BRACKET
ST A TO R
HOUSIN G

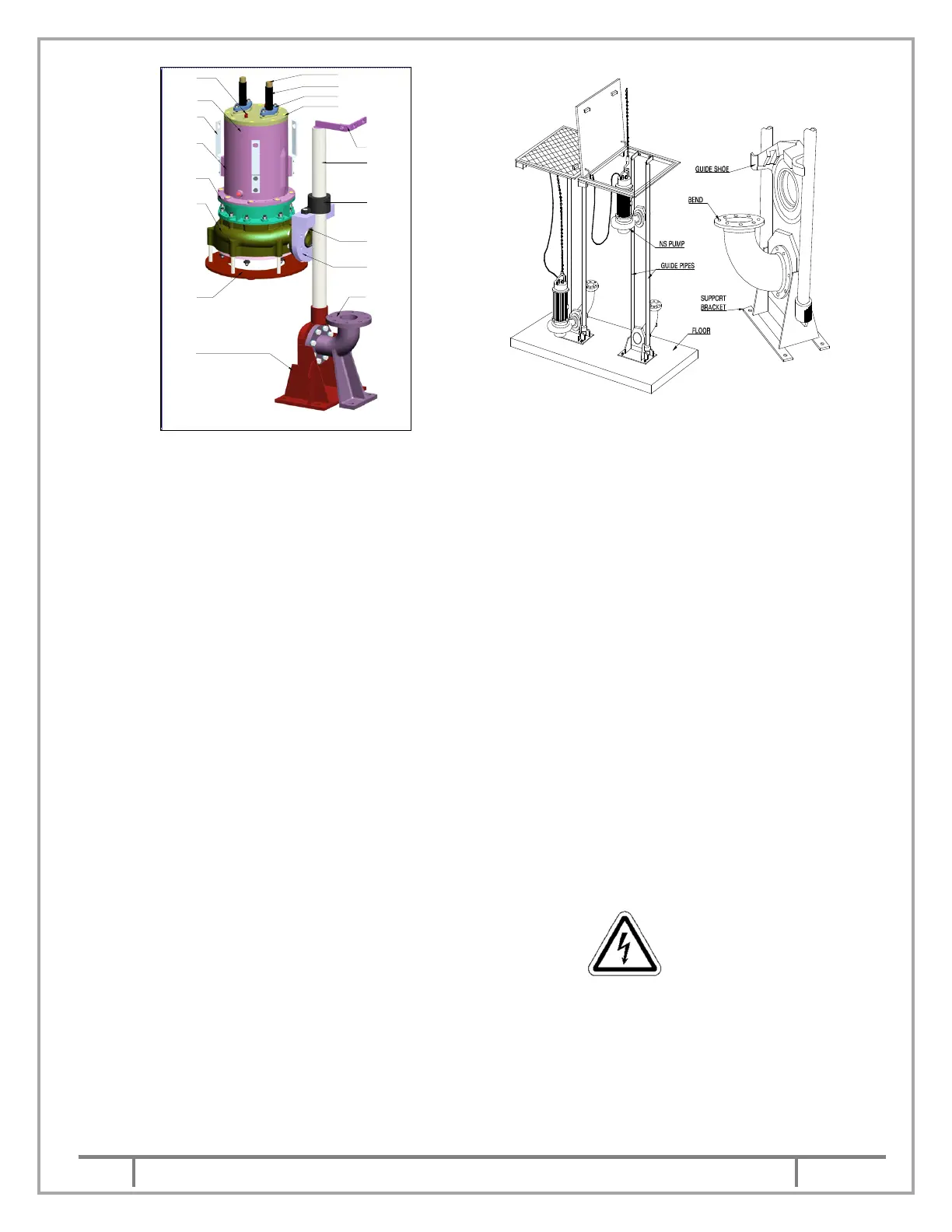

Single guide pipe arrangement (iNS) Double guide pipe arrangement
Stationary Installation view.
3.1.1 Installation of support bracket & bend –
Before installing the pump, ensure that sump bottom is flat and leveled. The support bracket &
bend should be attached and fixed to the sump bottom with foundation bolts, so that the guide pipe
shall be exactly vertical.
Ensure that support bracket and bend are located correctly relative to descending pump vertical
guide pipe and discharge pipe.
3.1.2 Lowering the pump - Attach the guide shoe & guide pipe adapter to the pump. The unsupported
length of guide pipe should not exceed 6 m.
3.1.3 Fix the guide pipe in the support bracket and locate the vertical position of guide pipe holder at the
top of the pit. Now grout the guide pipe holder.
3.1.4 Insert the above assembly in the guide pipe by dismantling the guide pipe holder & refit the holder
in the guide pipe.
3.1.5 Check- Lower the pump with the help of chain. While sliding over the guide pipe into the sump,
check that the cable is not slagging and is not under tension.
3.1.6 Ensure that the pump position is exactly vertical on the support bracket. Check by giving a jerk.
3.1.7 Before taking the pumping station into use, check that there are no loose solid pieces or other
material on bottom of sump that would damage the pump.
3.1.8 DO NOT LIFT THE PUMP WITH THE HELP OF CABLES.
3.2 The NS pumps supplied for portable installation requires no foundation. Only ensure that the
delivery pipe line is well supported and its weight is not acting on pump casing directly.
3.3 Use chain with intermediate hooks for holding to lower or lift the pump. This type of chain is specially
designed to avoid the tendency of the operator to lift the pump with the help of cable causing
damage & replacement of the cable unit. While selecting size of the chain, refer weight of the pump
given in 7.6. and chain capacity as per chart in 3.4. We recommend use of non-return valve in
delivery pipe line located before sluice valve.
