Kitables BLUETOOTH SPEAKER V.1 - Page 10

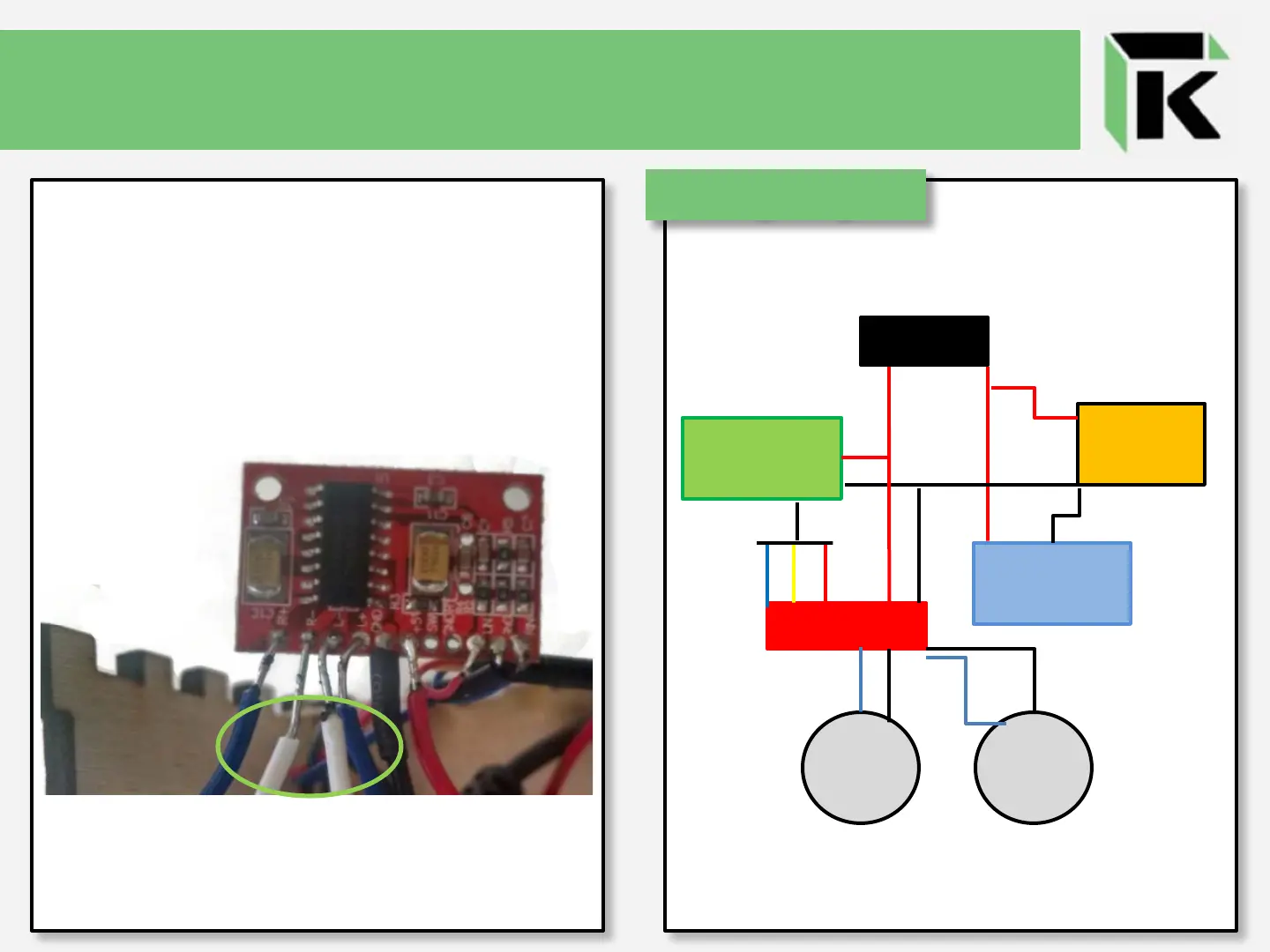

Solder the speaker wires to amplifier as
outlined. Fitting all the wires from the
audio cable, battery and speakers gets
very tight and requires a lot of patience!
R+: blue
R-: white
L+: blue
L-: white
Lipo
Battery
Amplifier
Bluetooth
Adapter
Charging
Module
Speaker
Switch
Speaker
+
+
-
-
L-
R-
R+
L+
LN
RN GND
BAT+ BAT-
GND
+5
Wiring Diagram
Bluetooth Speaker Kit Instructions V.1
