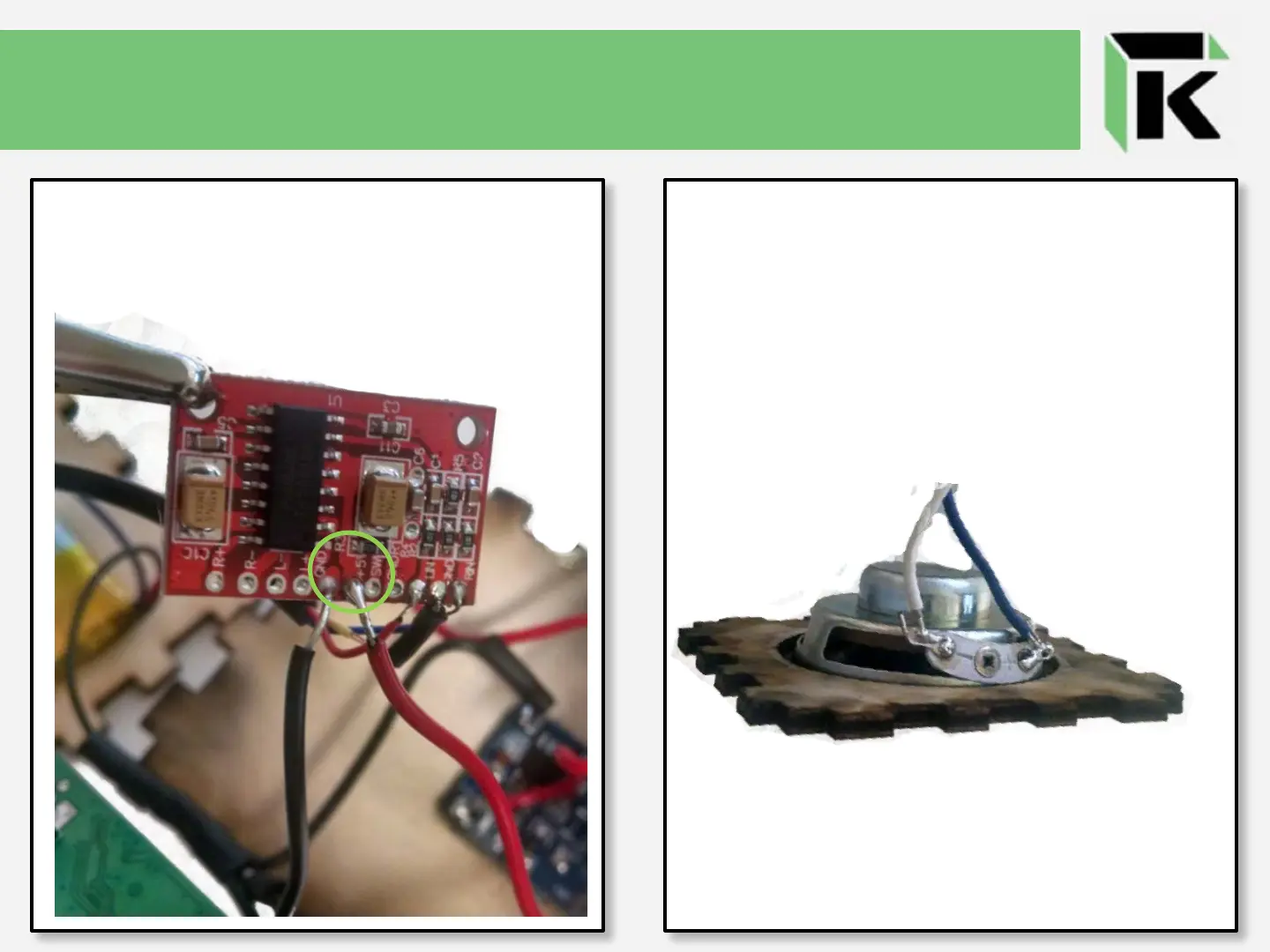

Solder remaining red switch wire and
remaining black battery wire to the
amplifier board.
GND: black wire
+5: red wire
Solder 1 blue and 1 white wire to each
of the speaker terminals. Positive and
Negative terminals just need to be
consistent with your colors and the
location on the amplifier.
+: blue
-: white
Bluetooth Speaker Kit Instructions V.1
