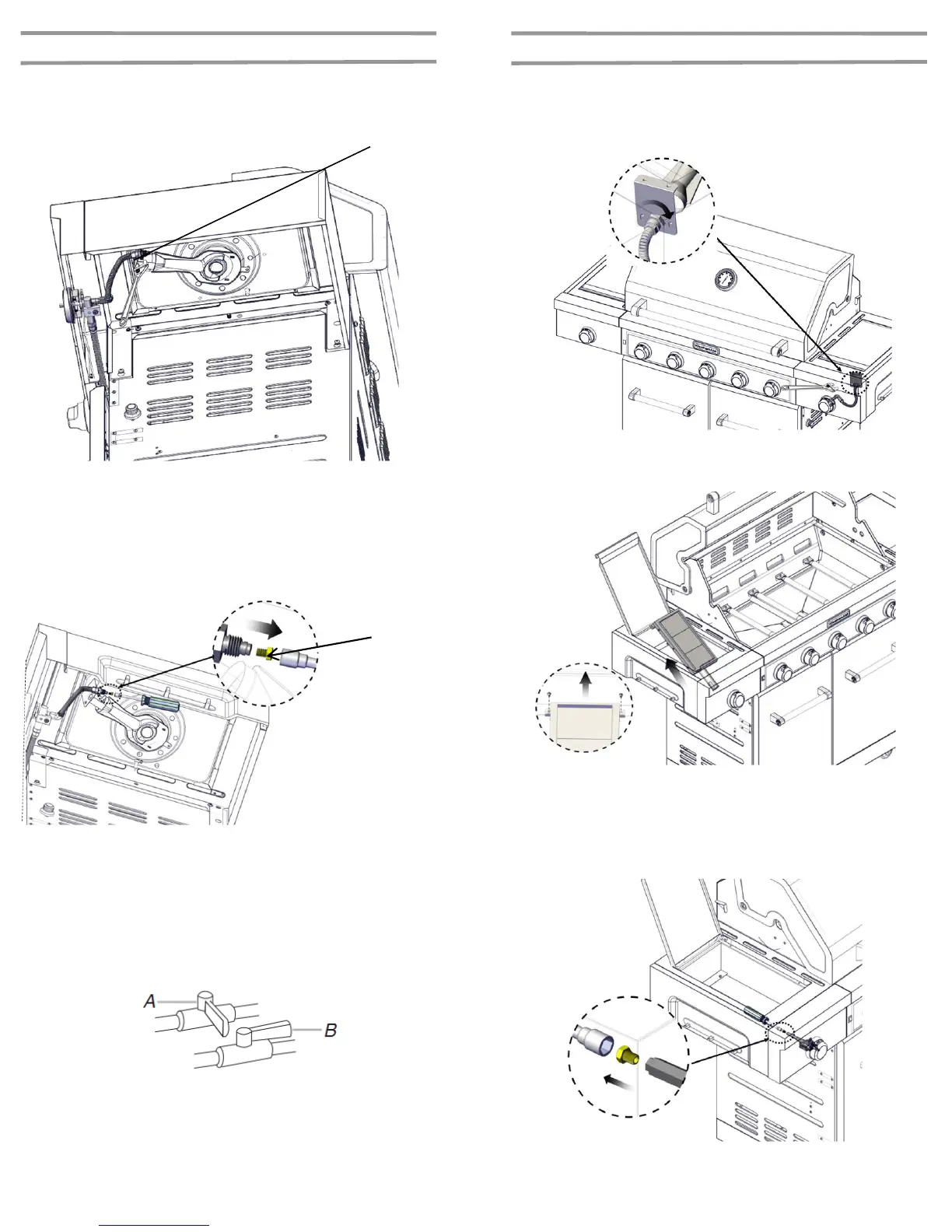

Change the Side burner Orifices
1. Use a wrench to remove the side burner orifice brass
connector with flex line end to side burner tube.
A. Side burner flex end
2. Use 6 mm socket wrench or 6 mm nut driver to remove the
orifice. Replace with the Natural gas orifice.
A. Orifice
IMPORTANT: Check that the orifice is properly installed inside of
the valve.
3. Reinstall side burner, tighten the side burner orifice brass
connector and side burner tube by using a wrench.
4. Open the manual shutoff valve in the gas supply. Then valve is
open when the handle is parallel to the gas pipe.
A
A
30
5. Test all connections using an approved noncorrosive leak-
detection solution. Bubbles will show a leak. Correct any
leak found
A. Closed valve
B. Open valve
2. Use 6 mm socket wrench or 6 mm nut driver to remove the
orifice. Replace with the Natural gas orifice.
1. Use a wrench to remove the sear burner orifice brass
connector with flex line end to sear burner tube.
Change the Sear burner Orifices
