Figure 4
Figure 5

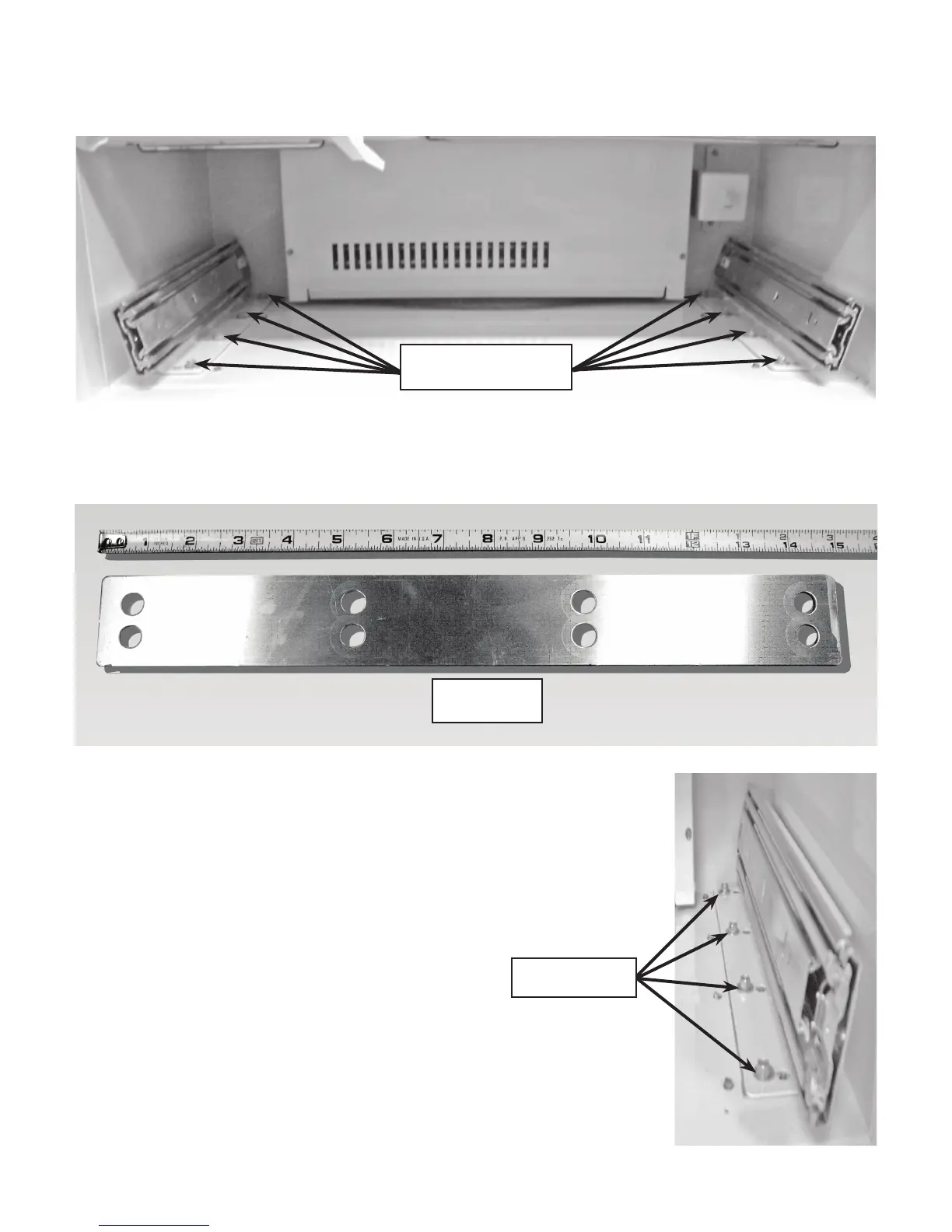

4. If the gap is still uneven, remove the four freezer basket screws, the basket, and the freezer drawer to access the drawer rails.
See gure 4.
1.5mm
Metal Shim
5. If the rail screws are tight, and the gap is still uneven after replacing the freezer drawer and basket, order metal shim part
number W10123657, to be installed under the rail on the side of the drawer that needs to be raised. A maximum of two shims
can be added if necessary. See gure 5.
6. To install shim(s), remove the four screws securing the rail to the cabinet.
See gure 6. Slide the shim under the rail; reinstall and tighten the screws.
Figure 6
Eight Rail Screws
Four Rail Screws
7. Replace the freezer basket and freezer drawer. Check that the drawer gasket is
sealing completely and verify that the basket is activating the freezer light switch.
