WARNING
Electrical Shock Hazard
Disconnect power before removing doors.
Failure to do so can result in death or electrical shock.
3-2

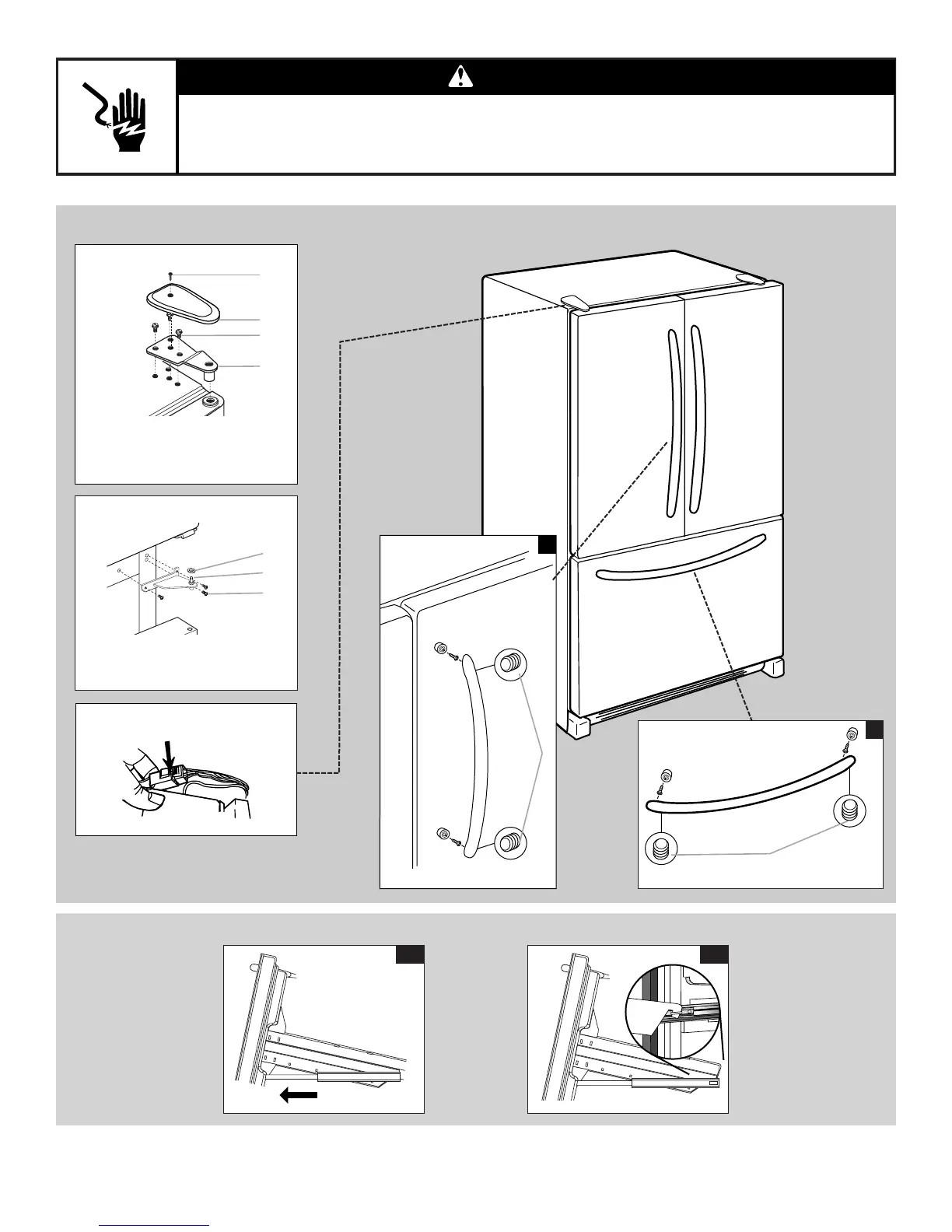

Drawer Removal & Replacement
3-1
Door Removal & Replacement
Top Hinges
A. Hinge Cover Screw
B. Top Hinge Cover
C.
5
/ 16 " Hex-Head Hinge Screws
D. Top Hinge
B
A
C
D
A. Shim
C. Hinge Screws
B. Bottom Hinge
Bottom Hinges
Wire Harness
A
B
C
1
A.
3
/ 32 " Set Screw
A.
3
/ 32 " Set Screw
2
A
A
