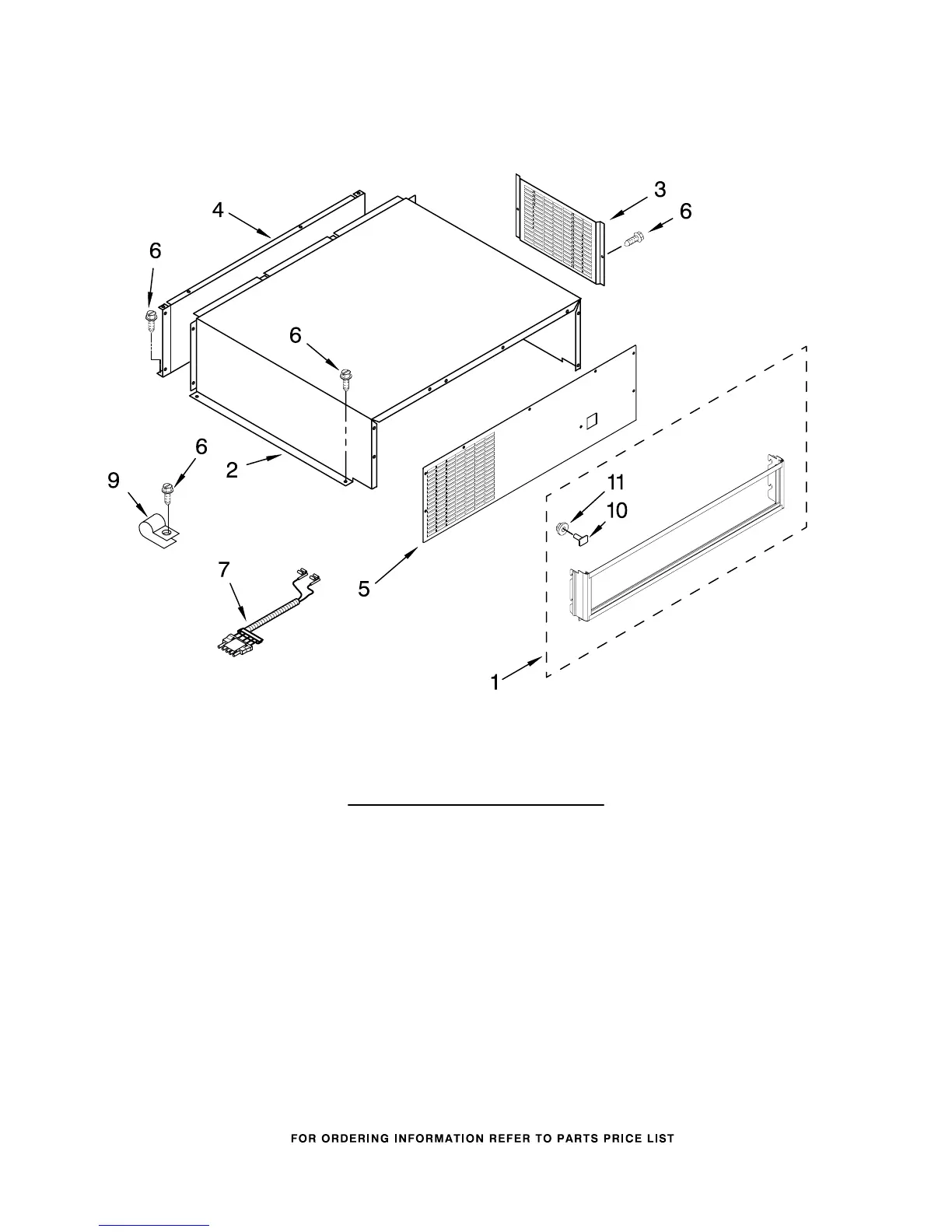

TOP GRILLE AND UNIT COVER PARTS
4
8214881
Illus. Part
No. No. DESCRIPTION
1 2317080S Top Grille
Assembly
2 2320502 Cover, Unit
3 2317881 Grille, Condenser
4 2256466 Back Panel
5 2307682 Front,
Unit Cover
6 487415 Screw
7 2187946 Wire Assembly,
Light Switch
9 489348 Clamp
10 2003347 Tee Bolt (4)
11 1161548 Nut (4)
For Model: KBFO42FSX00
(Brushed Aluminum)
