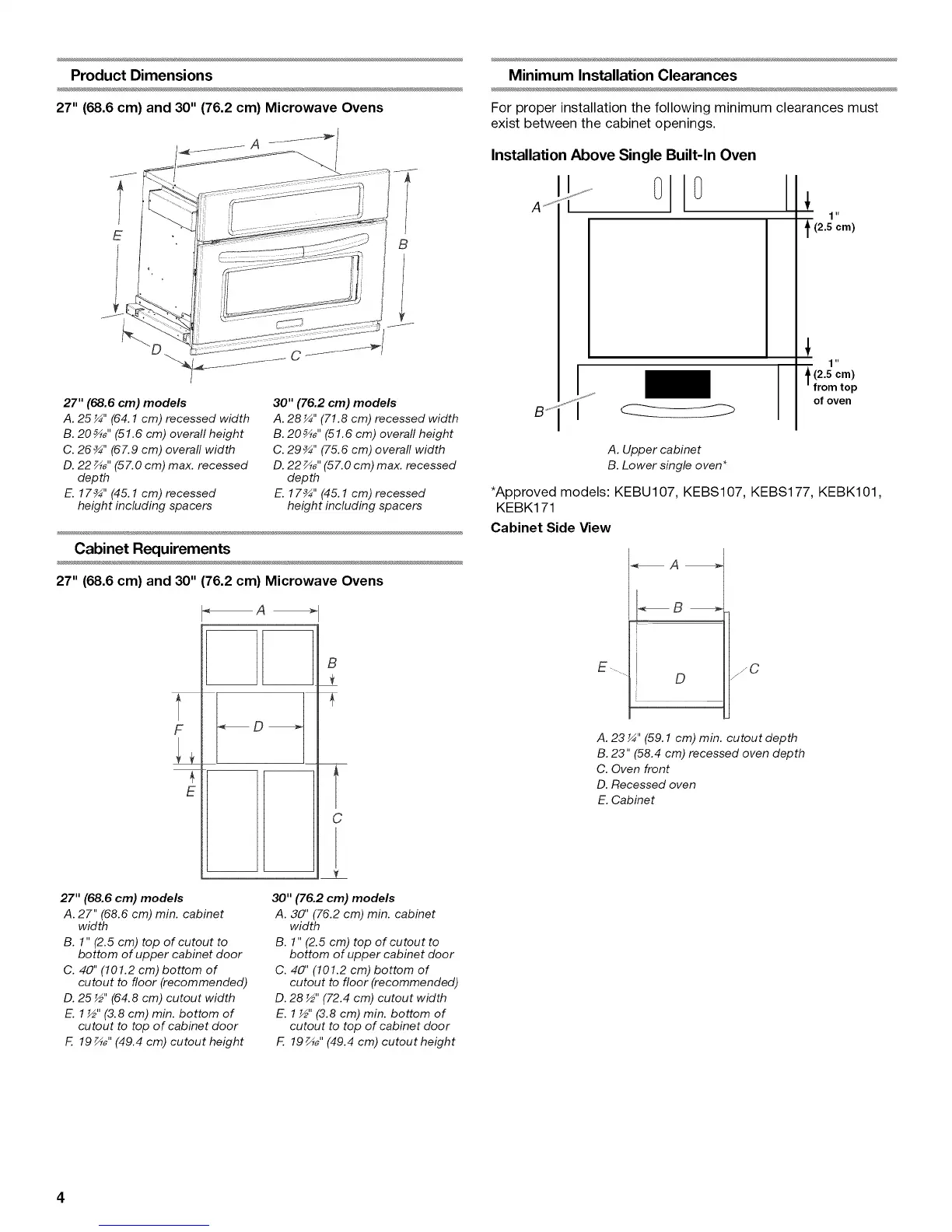

Product Dimensions
27" (68.6 cm) and 30" (76.2 cm) Microwave Ovens
27" (68.6 cm) models
A. 25 ¼" (64.1 cm) recessed width
B. 20_" (51.6 cm) overall height
C. 26¾" (67.9 cm) overafl width
D. 22 _" (57.0 cm) max. recessed
depth
E. 17¾" (45.1 cm) recessed
height including spacers
30" (76.2 cm) models
A. 28¼" (71.8 cm) recessed width
B. 20_" (51.6 cm) overafl height
C. 29_" (75.6 cm) overafl width
D. 22 _" (57.0 cm) max. recessed
depth
E. 17_" (45.1 cm) recessed
height including spacers
Cabinet Requirements
27" (68.6 cm) and 30" (76.2 cm) Microwave Ovens
F
E
27" (68.6 cm) models
A. 27" (68.6 cm) min. cabinet
width
B. 1" (2.5 cm) top of cutout to
bottom of upper cabinet door
C. 40" (101.2 cm) bottom of
cutout to floor (recommended)
D. 25½" (64.8 cm) cutout width
E. 1½" (3.8 cm) min. bottom of
cutout to top of cabinet door
F. 19 _" (49.4 cm) cutout height
_A_
_D_
B
C
30" (76.2 cm) models
A. 30" (76.2 cm) min. cabinet
width
B. 1" (2.5 cm) top of cutout to
bottom of upper cabinet door
C. 40" (101.2 cm) bottom of
cutout to floor (recommended)
D. 28 ½" (72.4 cm) cutout width
E. 1 ½" (3.8 cm) min. bottom of
cutout to top of cabinet door
F. 19 _" (49.4 cm) cutout height
Minimum Installation Clearances
For proper installation the following minimum clearances must
exist between the cabinet openings.
Installation Above Single Built-In Oven
!,j,yj,
t
1 "
t(2.5 cm)
of oven
A. Upper cabinet
B. Lower single oven*
*Approved models: KEBU107, KEBS107, KEBS177, KEBK101,
KEBK171
Cabinet Side View
_A_
i
E. M ._/C
A. 23 ¼" (59.1 cm) min. cutout depth
B. 23" (58.4 cm) recessed oven depth
C. Oven front
D. Recessed oven
E. Cabinet
