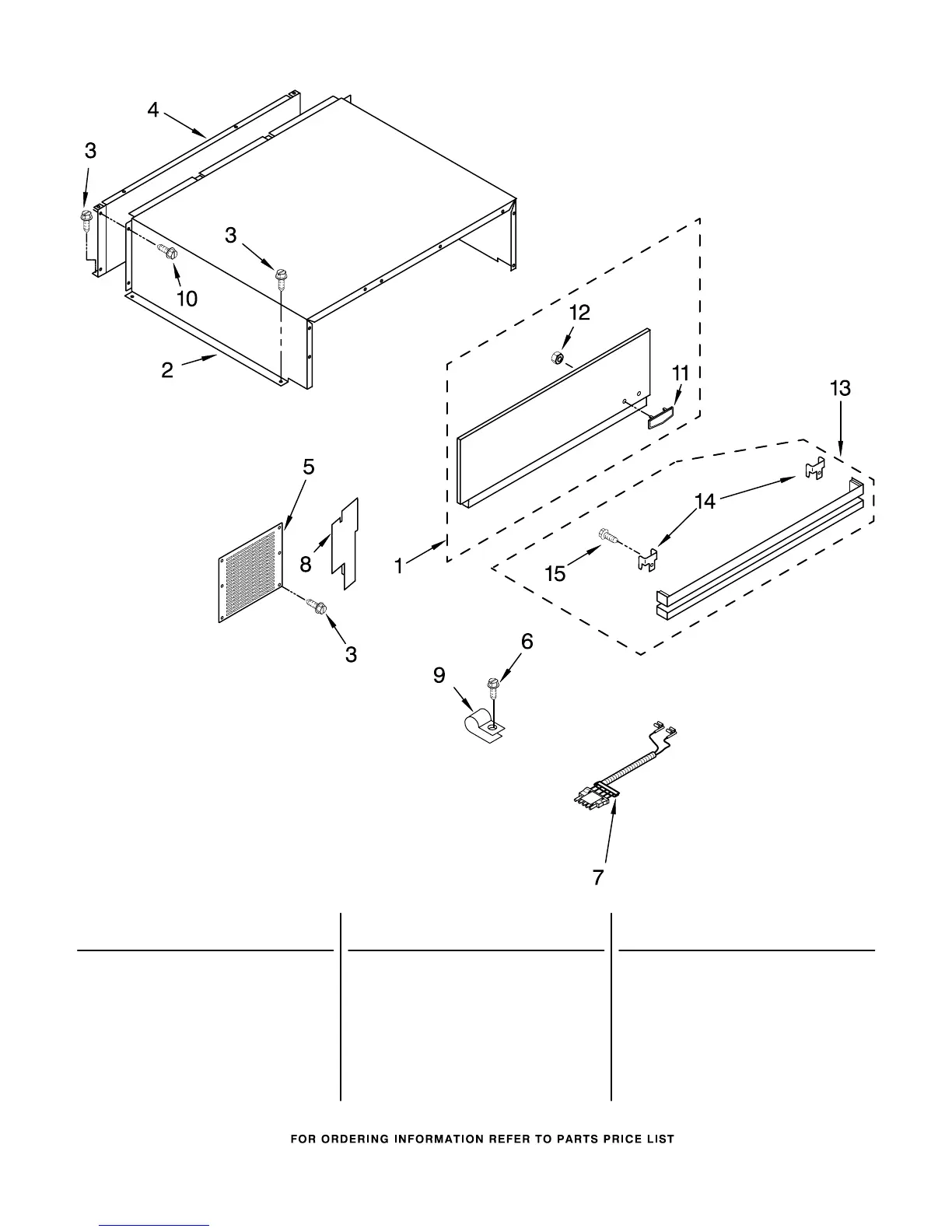

TOP GRILLE AND UNIT COVER PARTS
4
For Models: KBRC36FKB00, KBRC36FKS00, KBRC36FKU00
(Black) (Stainless Steel) (Cobalt Blue)
8197683
Illus. Part
No. No. DESCRIPTION
Illus. Part
No. No. DESCRIPTION
Illus. Part
No. No. DESCRIPTION
1 Top Grille
Assembly
2220996B Black
2215952S Stainless Steel
2215952CB Cobalt Blue
2 2209490 Cover, Unit
3 1157158 Screw, 8−18 x 3/8
4 2215830 Back Panel
5 2209492 Guard, Wiring
6 487415 Screw
7 2221008 Wire Assembly
8 8201530 Baffle−Air,
Condenser
9 489348 Clamp
10 488908 Screw, 10−12 x 1/2
11 Nameplate
2005292 Flat Black
8270201 Cobalt Blue
12 2004333 Nut
13 Louver, Vent
2215970B Black
2215970S Stainless Steel
14 2005483 Bracket, Louver
15 488879 Screw 8−32 x 5/16
