KitchenAid KBRC36FMS01 - Page 9

0
Hinge
®
NOTE: Do not place the door stop screw in
the 130 ° position on Overlay Series models.
See "Adjust and Remove Door."
O

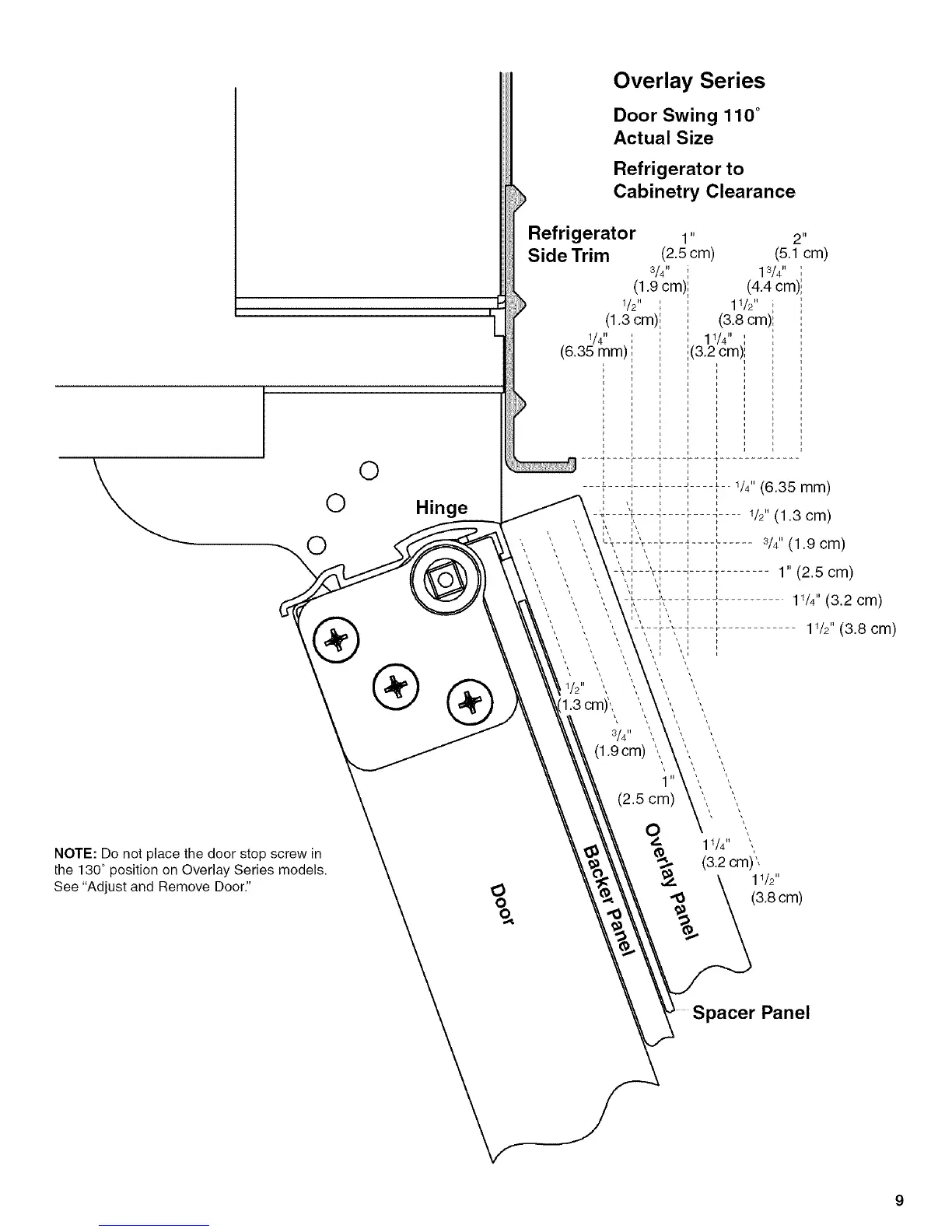

Overlay Series
Door Swing 110 °
Actual Size
Refrigerator to
Cabinetry Clearance
Refrigerator 1"
Side Trim (2.5cm)
3/4"
(1.9 cm)
1/2" E
(1.3 cm)
1/4"
(6.35 mm)
(5.1 cm)
13/4" _J
J
(4.4 cm),,
11/2" '
(3.8 cm)',
11/4 '' '
(3.2 cm)',
1/4"(6.35 mm)
1/2"(1.3 cm)
3/4"(1.9 cm)
1" (2.5 cm)
11/4"(3.2 cm)
11/2"(3.8 cm)
Spacer Panel
