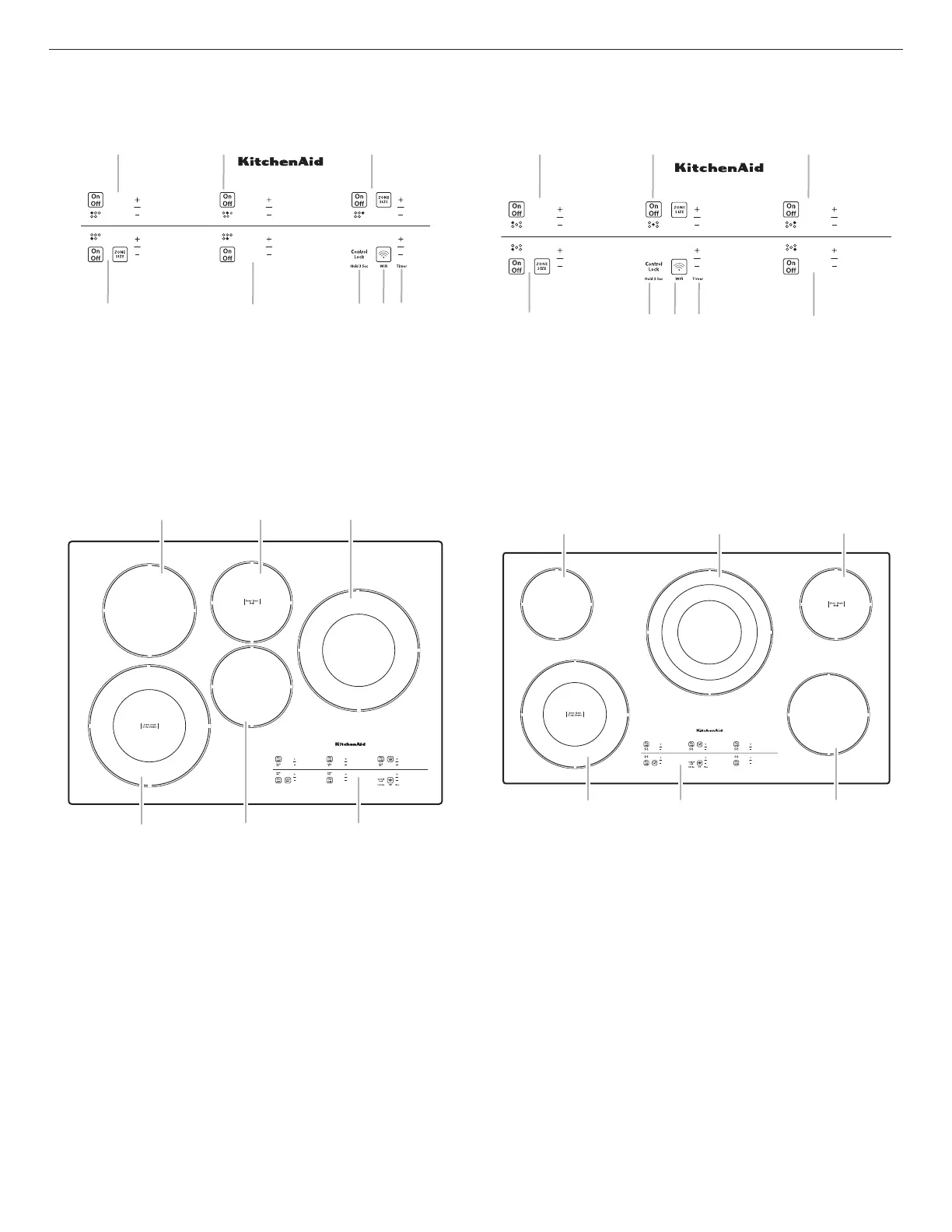

PARTS AND FEATURES – ELECTRONIC TOUCH CONTROLS
This manual covers different models. The cooktop you have purchased may have some or all of the items listed.
30" (76.2 cm) Control Panel
30" (76.2 cm) Cooktop
36" (91.4 cm) Control Panel
36" (91.4 cm) Cooktop
AB C
D
EFGH
A. Left rear single element
electronic touch control
B. Center rear single element
(even-heat melt) electronic
touch control
C. Right rear dual element
electronic touch control
D. Timer electronic touch
control
E. Wi-Fi electronic touch
control
F. Control lock hold 3 sec
G. Center front single element
electronic touch control
H. Left front dual element (even-
heat ultra power) electronic
touch control
FE D
ABC
A. Left rear single element
B. Center rear single element (even-heat melt)
C. Right rear dual element
D. Control panel
E. Center front single element
F. Left front dual element (even-heat ultra power)
A B C
D
EFG
H
A. Left rear single element electronic touch control
B. Center triple element electronic touch control
C. Right rear single element (even-heat melt) electronic touch control
D. Right front single element electronic touch control
E. Timer electronic touch control
F. Wi-Fi electronic touch control
G. Control lock hold 3 sec
H. Left front dual element (even-heat ultra power) electronic touch
control
A B
C
DE
F
A. Left rear single element
B. Center triple element
C. Right rear single element (even-heat melt)
D. Right front single element
E. Control panel
F. Left front dual element (even-heat ultra power)
