5

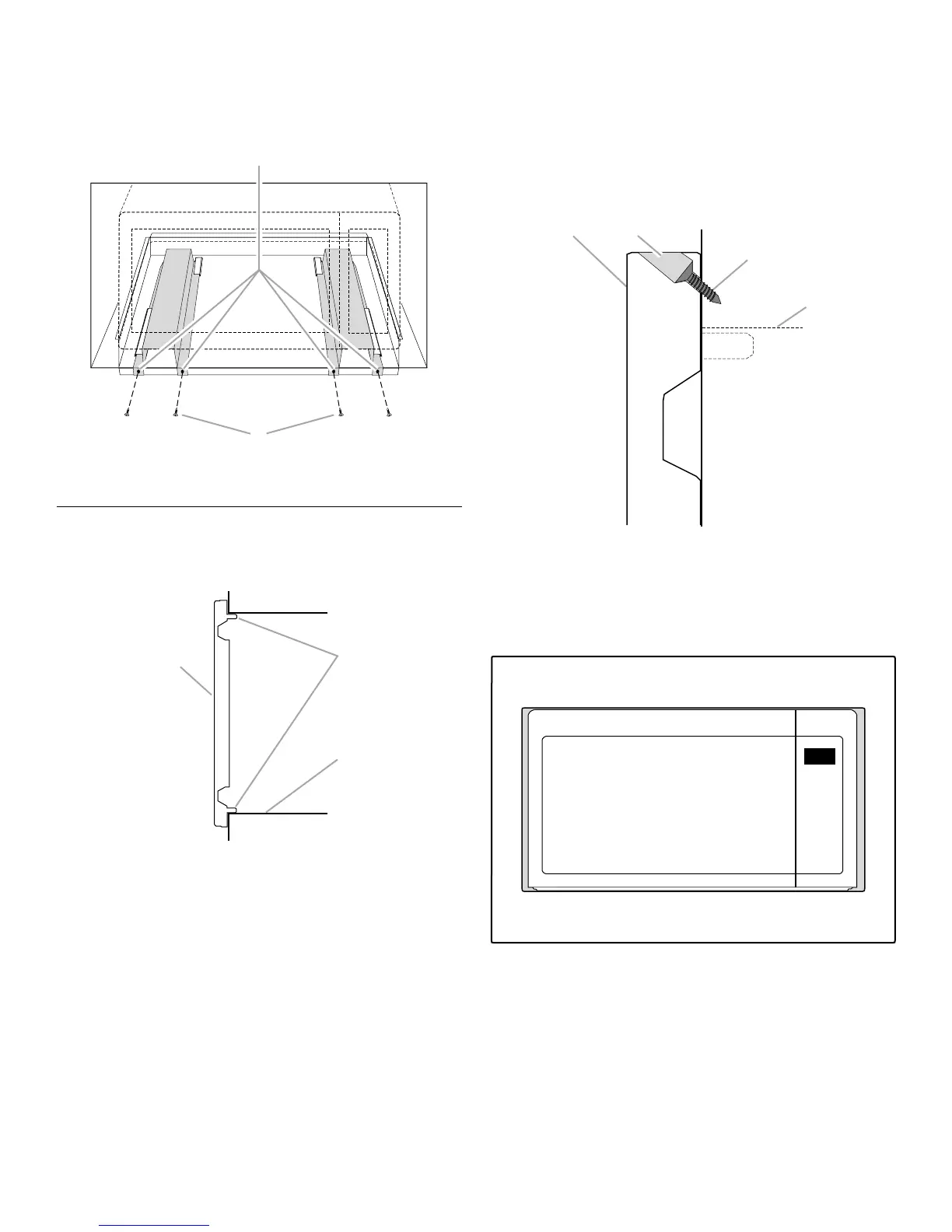

5. Slide the microwave oven back and into place. The mounting
holes of the rail flanges and bottom duct flange will align
against the bottom front facing of the cutout/cabinet opening.
6. Secure the microwave oven to the cutout/cabinet by installing
four short screws into the mounting holes.
Install Trim Kit Frame
1. Position trim kit frame over the opening so that the lower tabs
rest on the cutout floor, as shown.
2. Holding the trim kit frame in place, use 7/64" drill to drill four
pilot holes into the front facing of the cutout/cabinet through
the mounting hole guides in the upper and lower corners of
the trim kit frame.
NOTES:
■ The holes will be drilled downward from the top, and
upward from the bottom at an angle of about 45°.
■ To avoid damage to the trim kit frame, do not overtighten
screws.
3. Secure trim kit frame to cutout/cabinet by installing four long
wood screws (painted) into the pilot holes drilled in Step 2
above.
Installation is now complete. Replace any loose items that have
been removed from microwave oven cavity.
Save these Installation Instructions for future reference.
A. Mounting holes
B. Short screws (4)
A. Front of trim kit frame
B. Tabs (upper and lower)
C. Cutout/cabinet floor
A
B
A
A. Trim kit frame
B. Mounting hole guide
C. Long wood screw (4 - painted)
D. Cutout ceiling
AB
C
