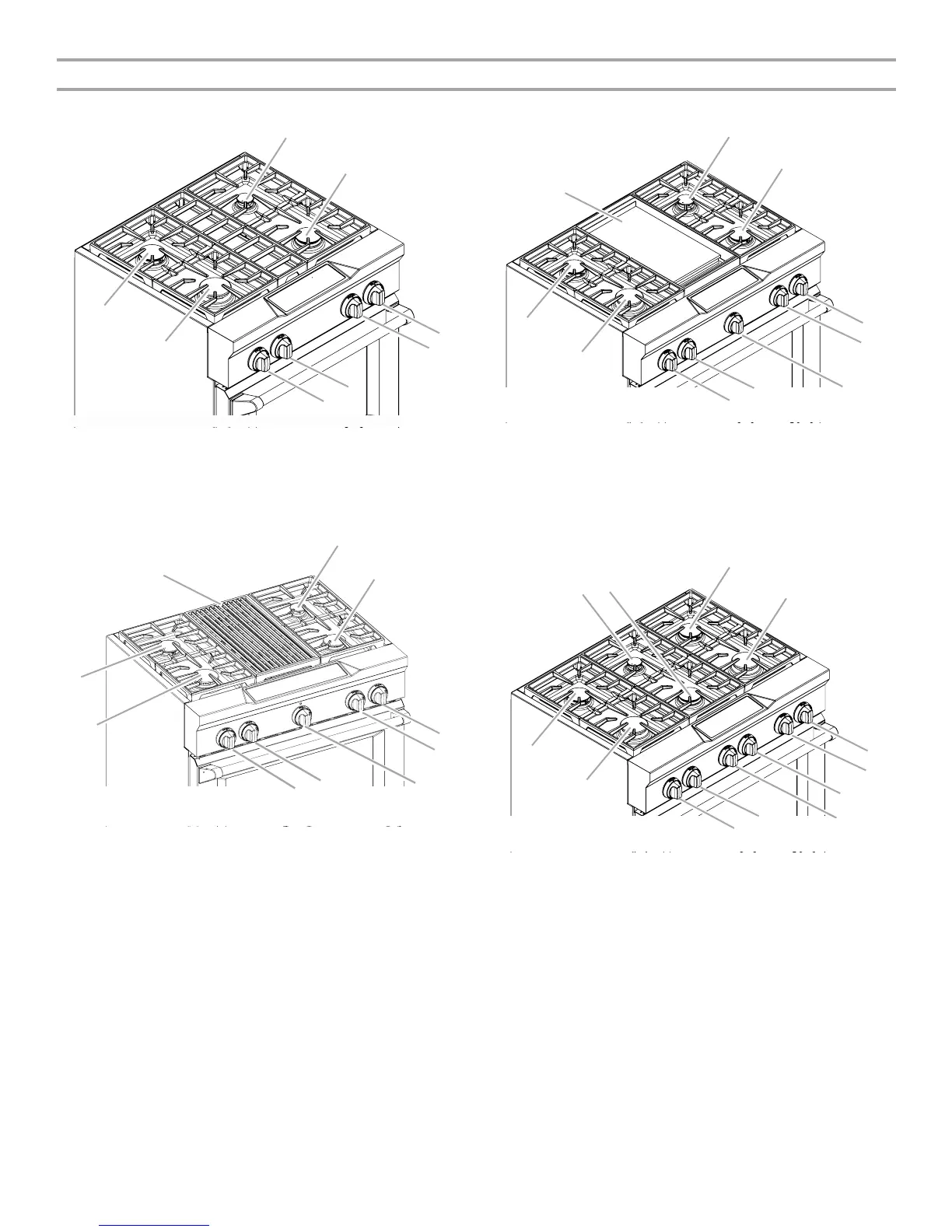

Control Panels
KDRS407
KDRS462
KDRS463
KDRS467
A. Left rear control knob
B. Left front control knob
C. Right rear control knob
D. Right front control knob
E. 15,000 Btu/h burner
F. 5,000 Btu/h burner
G. 15,000 Btu/h burner
H. 20,000 Btu/h burner
A. Left rear control knob
B. Left front control knob
C. Grill control knob
D. Right rear control knob
E. Right front control knob
F. 15,000 Btu/h burner
G. 5,000 Btu/h burner
H. Even-Heat™ Grill
I. 15,000 Btu/h burner
J. 20,000 Btu/h burner
A
B
C
D
E
F
G
H
A
B
C
G
H
E
F
D
I
J
A. Left rear control knob
B. Left front control knob
C. Griddle control knob
D. Right rear control knob
E. Right front control knob
F. 15,000 Btu/h burner
G. 5,000 Btu/h burner
H. Even-Heat™ electric
chrome griddle
I. 15,000 Btu/h burner
J. 20,000 Btu/h burner
A. Left rear control knob
B. Left front control knob
C. Center rear control knob
D.Center front control knob
E. Right rear control knob
F. Right front control knob
G. 20,000 Btu/h burner
H. 15,000 Btu/h burner
I. 15,000 Btu/h burner
J. 5,000 Btu/h burner
K. 15,000 Btu/h burner
L. 20,000 Btu/h burner
A
B
C
G
H
E
F
D
I
J
A
B
C
G
H
K
L
E
F
D
I
J
