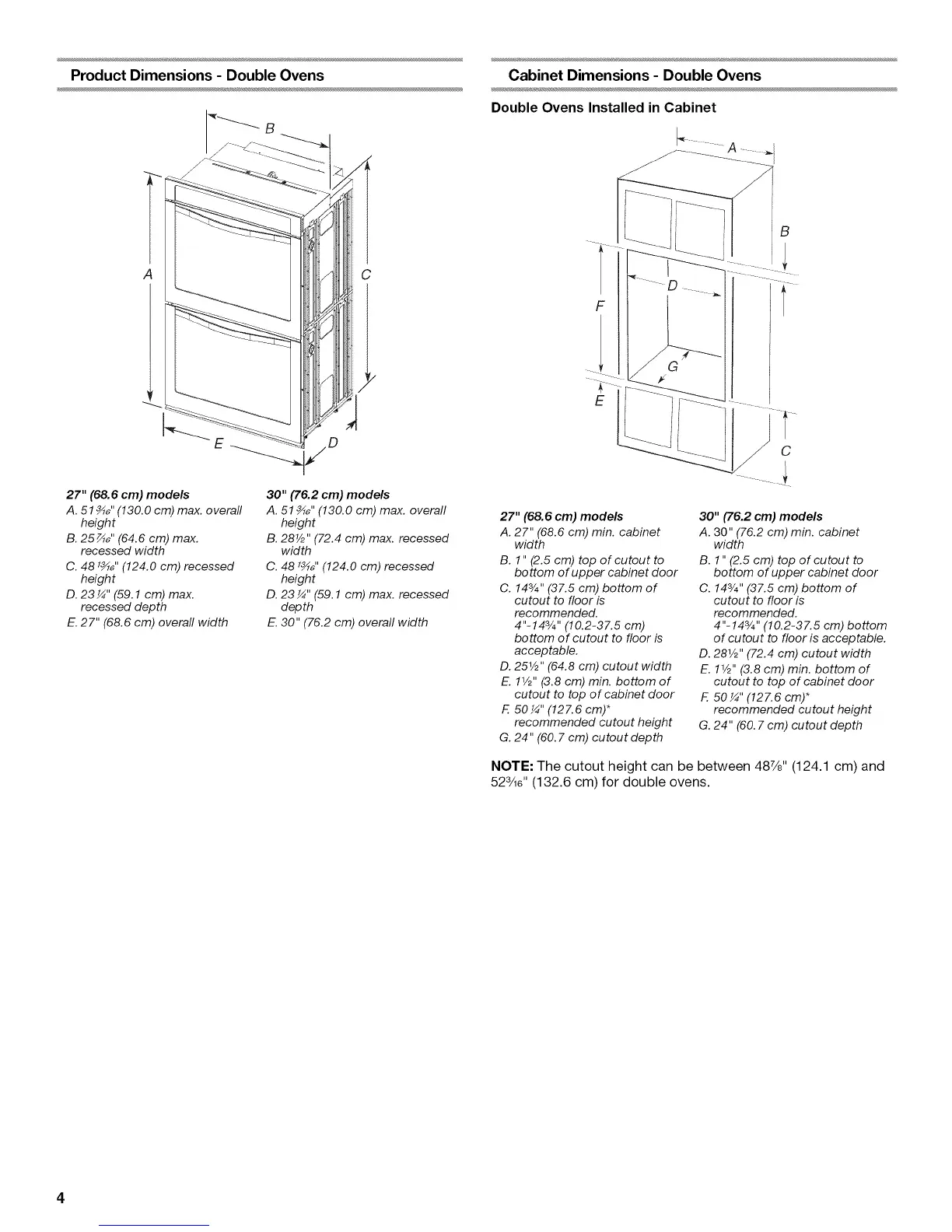

Product Dimensions - Double Ovens Cabinet Dimensions - Double Ovens
Double Ovens Installedin Cabinet
A C
F
B
E
27" (68.6 cm) models
A. 51 _" (130.0 cm) max. overall
height
B. 25_" (64.6 cm) max.
recessed width
C. 481_,, (124.0 cm) recessed
height
D. 23 ¼" (59.1 cm) max.
recessed depth
E. 27" (68.6 cm) overall width
30" (76.2 cm) models
A. 51 _" (130.0 cm) max. overall
height
B. 28V2" (72.4 cm) max. recessed
width
C. 48 _" (124.0 cm) recessed
height
D. 23 ¼" (59.1 cm) max. recessed
depth
E. 30" (76.2 cm) overall width
C
I
27" (68.6 cm) models
A. 27" (68.6 cm) min. cabinet
width
B. 1" (2.5 cm) top of cutout to
bottom of upper cabinet door
C. 143/4"(37.5 cm) bottom of
cutout to floor is
recommended.
4"-143/4 ''(10.2-37.5 cm)
bottom of cutout to floor is
acceptable.
D. 251A" (64.8 cm) cutout width
E. 11/2'' (3.8 cm) min. bottom of
cutout to top of cabinet door
F. 50¼" (127.6cm)*
recommended cutout height
G. 24" (60.7 cm) cutout depth
30" ('76.2 cm) models
A. 30" (76.2 cm) min. cabinet
width
B. 1" (2.5 cm) top of cutout to
bottom of upper cabinet door
C. 143/4'' (37.5 cm) bottom of
cutout to floor is
recommended.
4"-143/4 ''(10.2-37.5 cm) bottom
of cutout to floor is acceptable.
D. 281/2"(72.4 cm) cutout width
E. 1W' (3.8 cm) min. bottom of
cutout to top of cabinet door
F. 50 ¼" (127.6 cm)*
recommended cutout height
G. 24" (60.7 cm) cutout depth
NOTE: The cutout height can be between 487/8" (124.1 cm) and
523A6'' (132.6 cm) for double ovens.
