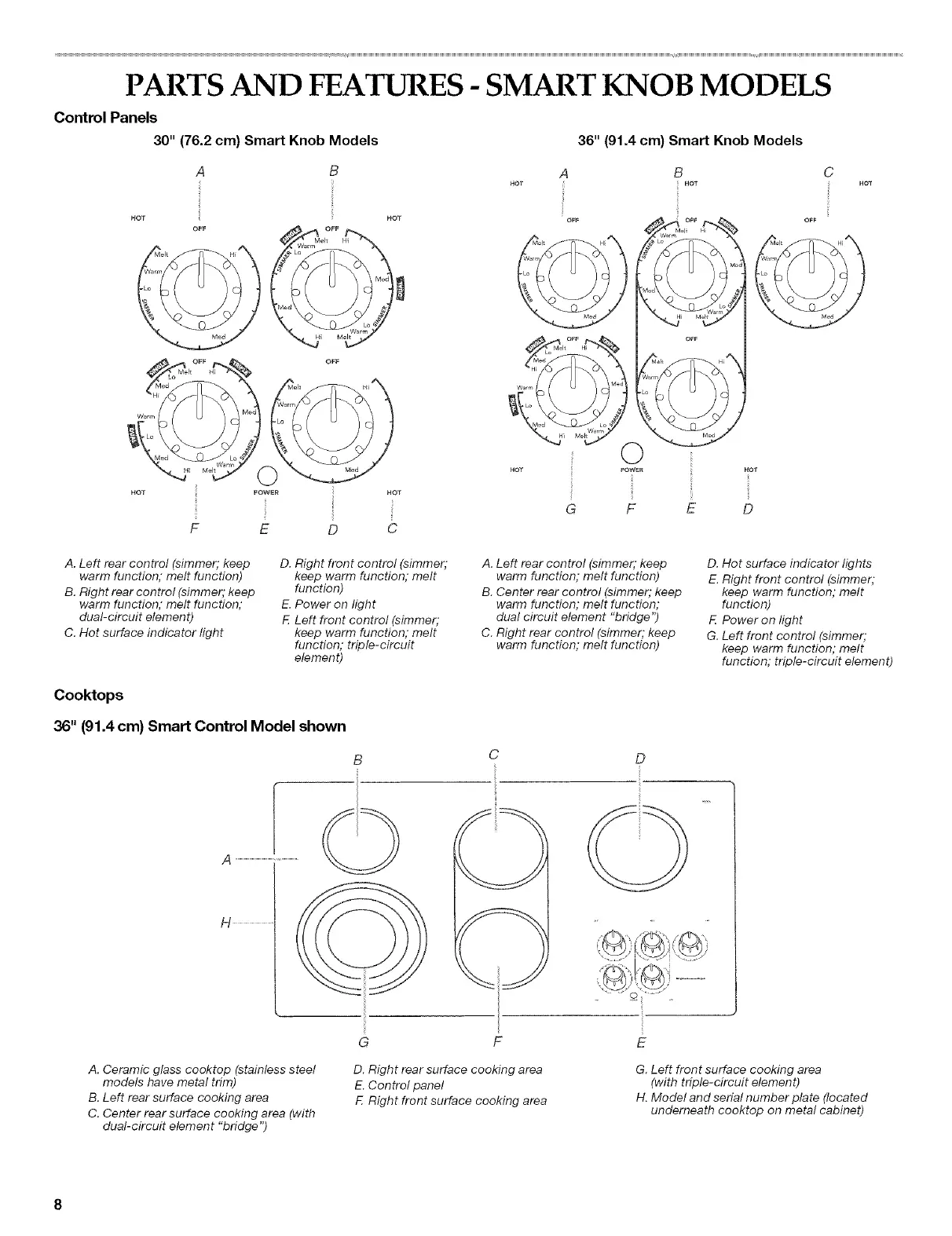

PARTS AND FEATURES- SMART KNOB MODELS
Control Panels
30" (76.2 cm) Smart Knob Models 36" (91.4 cm) Smart Knob Models
A B A B C
NOT HOT
HOT
_Lo
Ned _
i HOT
F E D C
G F E D
A. Left rear control (simmer; keep
warm function; melt function)
B. Right rear control (simmer; keep
warm function; melt function;
dual-circuit element)
C. Hot surface indicator light
D. Right front control (simmer,"
keep warm function; melt
function)
E. Power on light
E Left front control (simmer,"
keep warm function; melt
function; triple-circuit
element)
A. Left rear control (simmer," keep
warm function; melt function)
B. Center rear control (simmer; keep
warm function; melt function;
dual circuit element "bridge")
C. Right rear control (simmer; keep
warm function; melt function)
D. Hot surface indicator lights
E. Right front control (simmer,"
keep warm function; melt
function)
F Power on light
G. Left front control (simmer;
keep warm function; melt
function; triple-circuit element)
Cooktops
36" (91.4 cm) Smart Control Model shown
D
A ....................................................................
H
A. Ceramic glass cooktop (stainless steel
models have metal trim)
B. Left rear surface cooking area
C. Center rear surface cooking area (with
dual-circuit element "bridge")
F
D. Right rear surface cooking area
E. Control panel
F. Right front surface cooking area
E
G. Left front surface cooking area
(with triple-circuit element)
H. Model and serial number plate (located
underneath cooktop on metal cabinet)
