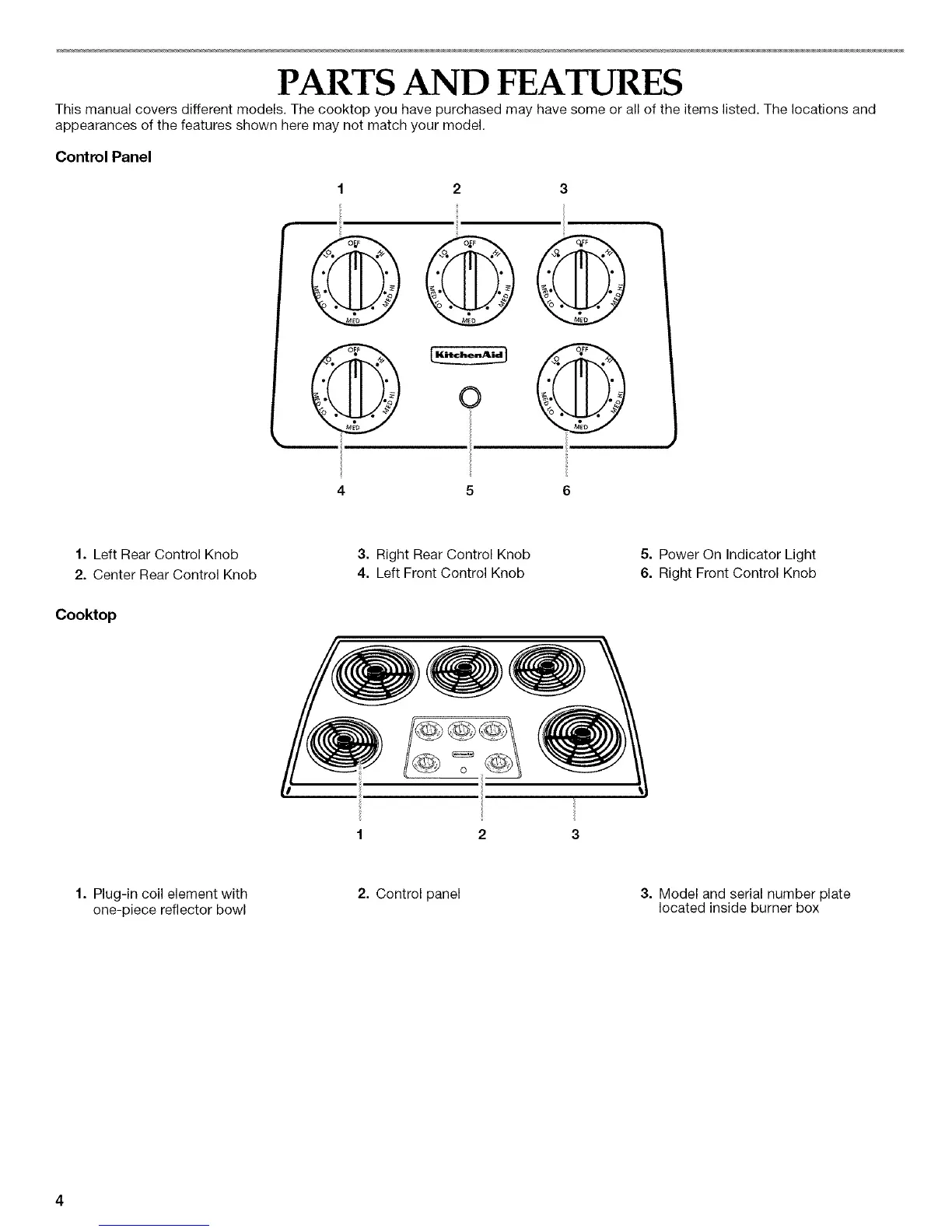

PARTS AND FEATURES
This manual covers different models. The cooktop you have purchased may have some or all of the items listed. The locations and
appearances of the features shown here may not match your model.
Control Panel
i
0
5
1. Left Rear Control Knob
2. Center Rear Control Knob
Cooktop
3. Right Rear Control Knob
4. Left Front Control Knob
2 3
5. Power On Indicator Light
6. Right Front Control Knob
1. Plug-in coil element with
one-piece reflector bowl
2. Control panel 3. Model and serial number plate
located inside burner box
