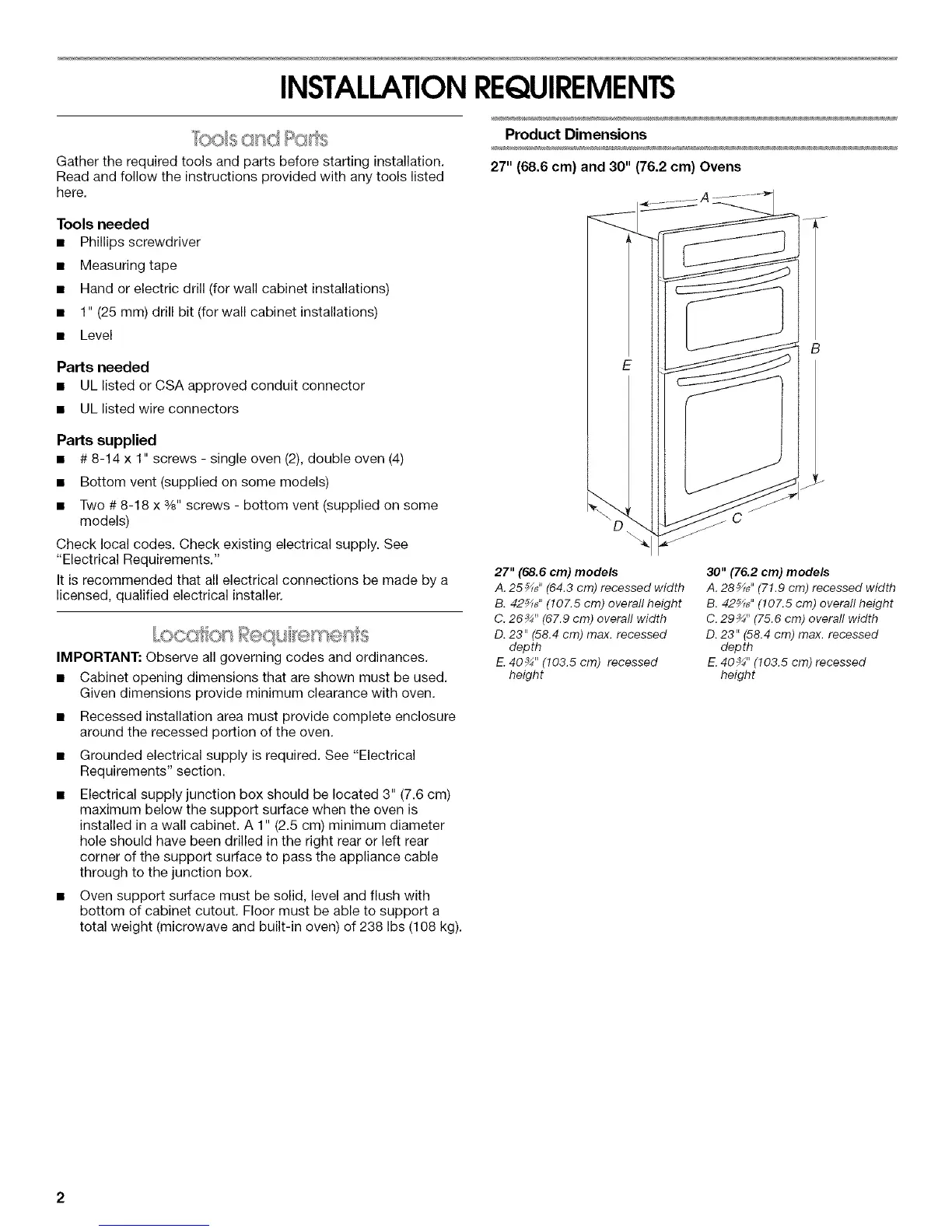

INSTALLATIONREQUIREMENTS
Gather the required tools and parts before starting installation.
Read and follow the instructions provided with any tools listed
here.
Tools needed
• Phillips screwdriver
• Measuring tape
• Hand or electric drill (for wall cabinet installations)
• 1" (25 mm) drill bit (for wall cabinet installations)
• Level
Parts needed
• UL listed or CSA approved conduit connector
• UL listed wire connectors
Parts supplied
• # 8-14 x 1" screws - single oven (2), double oven (4)
• Bottom vent (supplied on some models)
• Two # 8-18 x %" screws - bottom vent (supplied on some
models)
Check local codes. Check existing electrical supply. See
"Electrical Requirements."
It is recommended that all electrical connections be made by a
licensed, qualified electrical installer.
IMPORTANT: Observe all governing codes and ordinances.
• Cabinet opening dimensions that are shown must be used.
Given dimensions provide minimum clearance with oven.
• Recessed installation area must provide complete enclosure
around the recessed portion of the oven.
• Grounded electrical supply is required. See "Electrical
Requirements" section.
Electrical supply junction box should be located 3" (7.6 cm)
maximum below the support surface when the oven is
installed in a wall cabinet. A 1" (2.5 cm) minimum diameter
hole should have been drilled in the right rear or left rear
corner of the support surface to pass the appliance cable
through to the junction box.
• Oven support surface must be solid, level and flush with
bottom of cabinet cutout. Floor must be able to support a
total weight (microwave and built-in oven) of 238 Ibs (108 kg).
Product Dimensions
27" (68.6 cm) and 30" (76.2 cm) Ovens
E B
27" (68.6 era) models
A. 25 _8" (64.3 cm) recessed width
B. 42_£' (107.5 cm) overafl height
C. 26_" (67.9 cm) overafl width
D. 23" (58.4 cm) max. recessed
dep th
E. 40_" (103.5 cm) recessed
height
30" (76.2 cm) models
A. 28 _J' (71.9 cm) recessed width
B. 42_£' (107.5 cm) overafl height
C. 29_" (75.6 cm) overafl width
D. 23" (58.4 cm) max. recessed
depth
E. 40_" (103.5 cm) recessed
height
