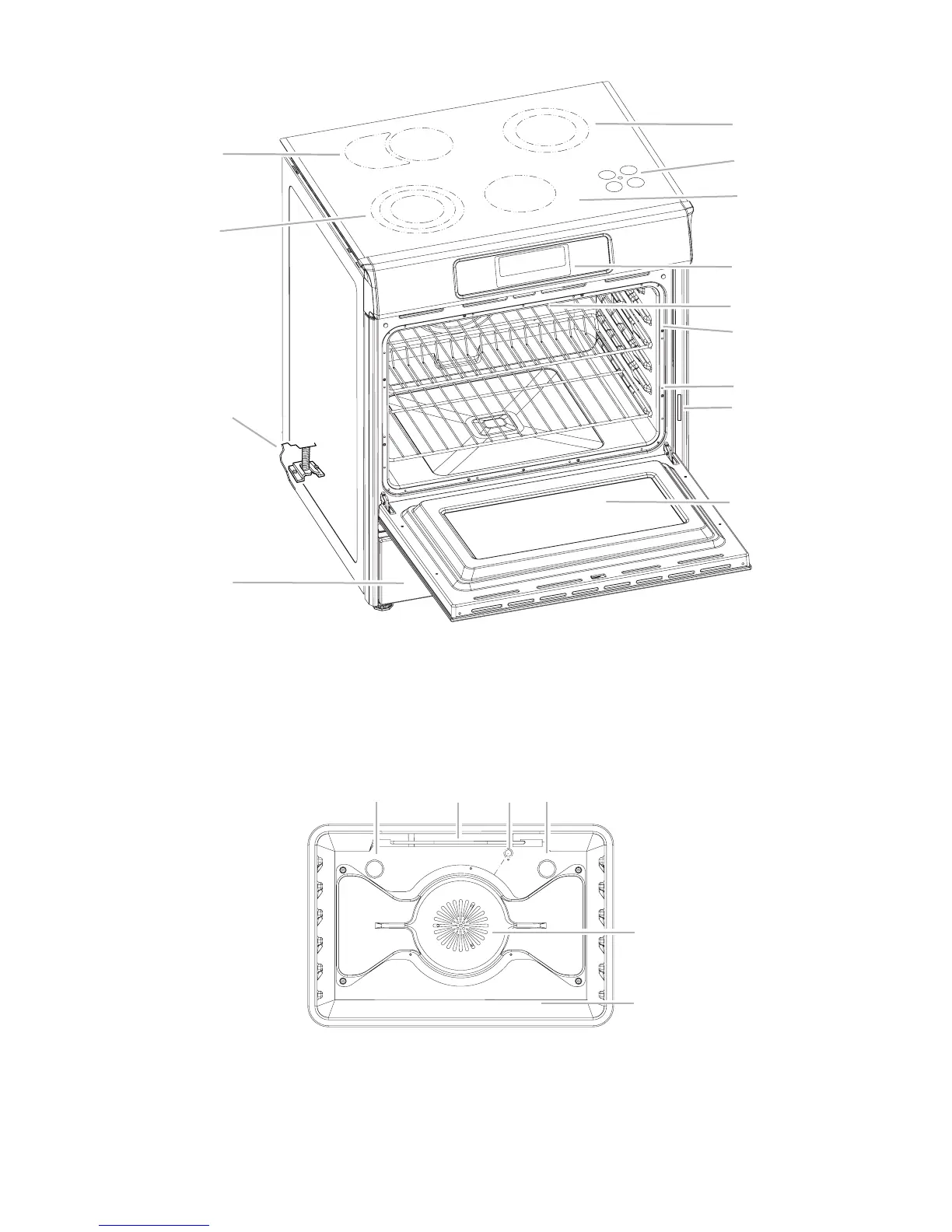

Range
Oven Interior
A. Dual-size oval element
B. Triple-size element
C. Anti-tip bracket
D. Warming drawer
E. Dual-size element
F. Electronic cooktop touch controls
G. Ceramic surface cooking area
H. Oven control panel
I. Automatic oven light switch/
self-clean latch
J.
Temperature probe jack
(not shown)
K. Door gasket
L. Model and serial number
M. Oven door window
Parts and Features
not shown
(on some models)
Broiler pan and grid
Roasting rack
Temperature probe
A
B
C
D
E
F
G
I
H
J
K
L
M
A. Oven lights
B. Full and center broil elements
C. Oven cavity sensor
D. T.H.E.™ convection fan and element (not visible)
E. CleanBake™ element (not visible)
A
B
C
A
D
E
