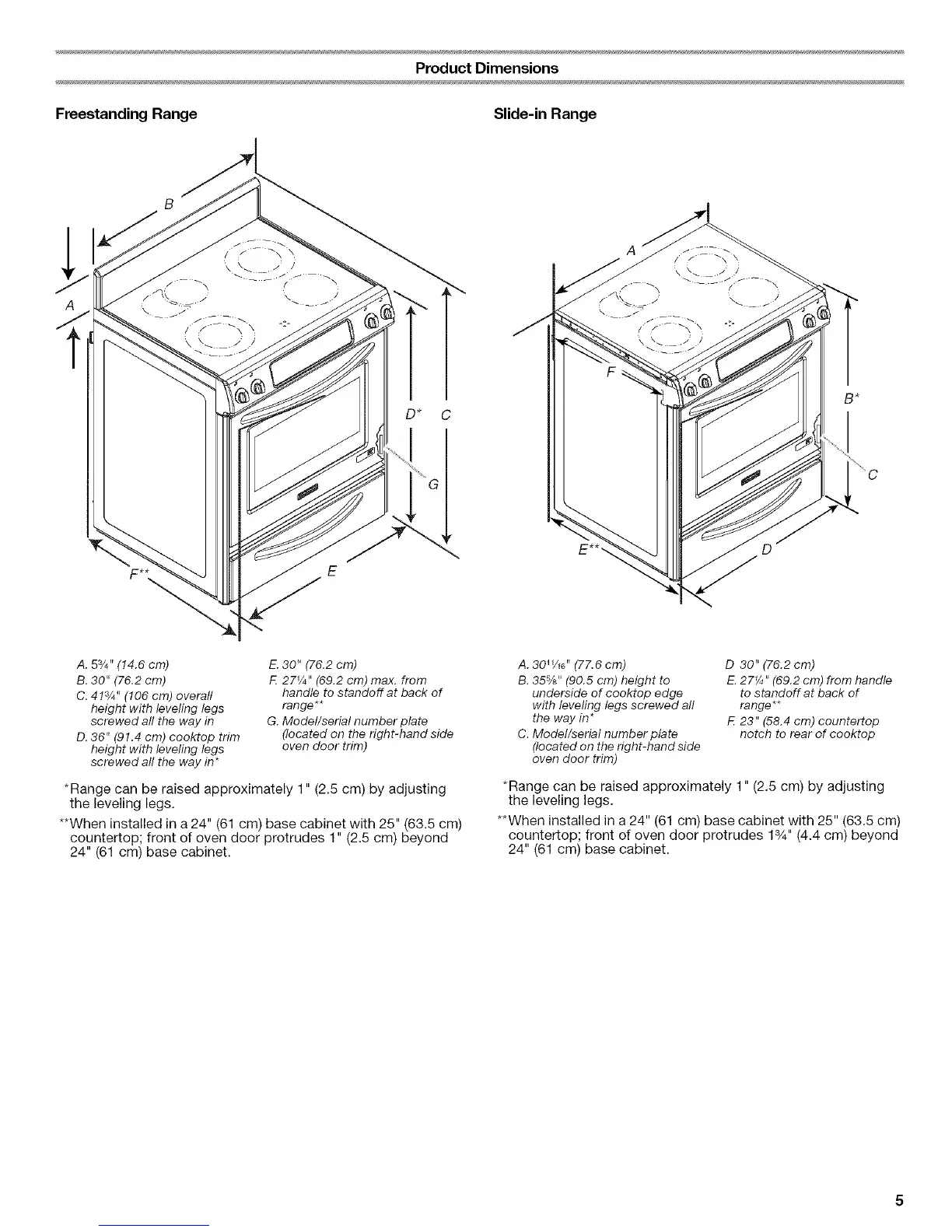

Product Dimensions
Freestanding Range Slide-in Range
A
A. 53/4``(14.6 cm)
B. 30" (76.2 cm)
C. 413/4" (106 cm) overari
height with leveling legs
screwed all the way in
D. 36" (91.4 cm) cooktop trim
height with leveling legs
screwed all the way in*
E. 30" (76.2 cm)
F. 27_A'' (69.2 cm) max. from
handle to standoff at back of
range**
G. Model/serial number plate
(located on the right-hand side
oven door trim)
*Range can be raised approximately 1" (2.5 cm) by adjusting
the leveling legs.
**When installed in a 24" (61 cm) base cabinet with 25" (63.5 cm)
countertop; front of oven door protrudes 1" (2.5 cm) beyond
24" (61 cm) base cabinet.
A. 3011/16'' (77.6 cm)
B. 35-%" (90.5 cm) height to
underside of cooktop edge
with levering legs screwed all
the way in*
C. Model/serial number plate
(located on the right-hand side
oven door trim)
D 30" (76.2cm)
E. 27¼" (69.2 cm) from handle
to standoff at back of
range**
F. 23" (58.4 cm) countertop
notch to rear of cooktop
*Range can be raised approximately 1" (2.5 cm) by adjusting
the leveling legs.
**When installed in a 24" (61 cm) base cabinet with 25" (63.5 cm)
countertop; front of oven door protrudes 13/4'' (4.4 cm) beyond
24" (61 cm) base cabinet.
