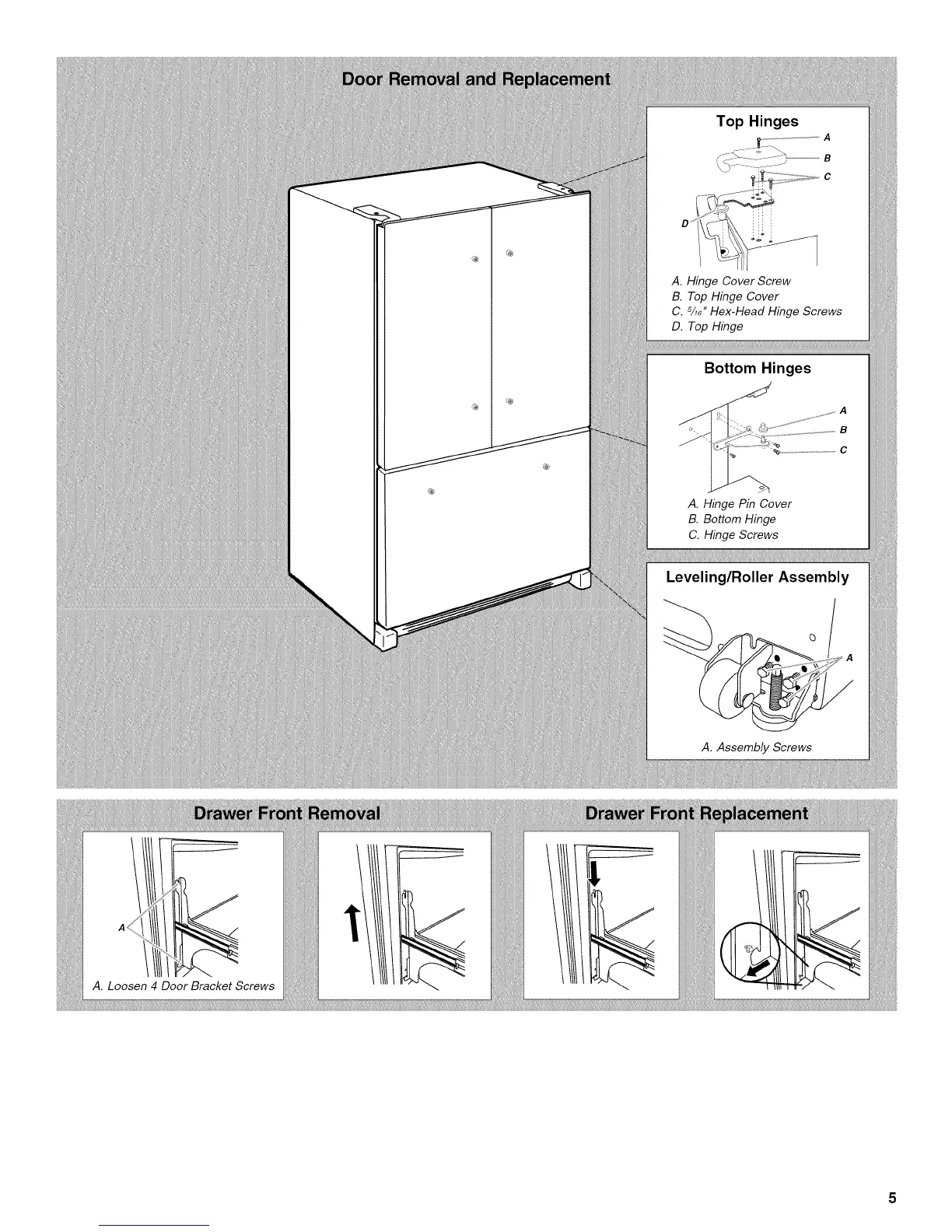

Top Hinges
A. Hinge Cover Screw
B. Top Hinge Cover
C. 5/16" Hex-Head Hinge Screws
D. Top Hinge
Bottom Hinges
B
C
A. Hinge Pin Cover
B. Bottom Hinge
C. Hinge Screws
Leveling/Roller Assembly
A. Assembly Screws
A. Loosen 4 Door Bracket Screws
