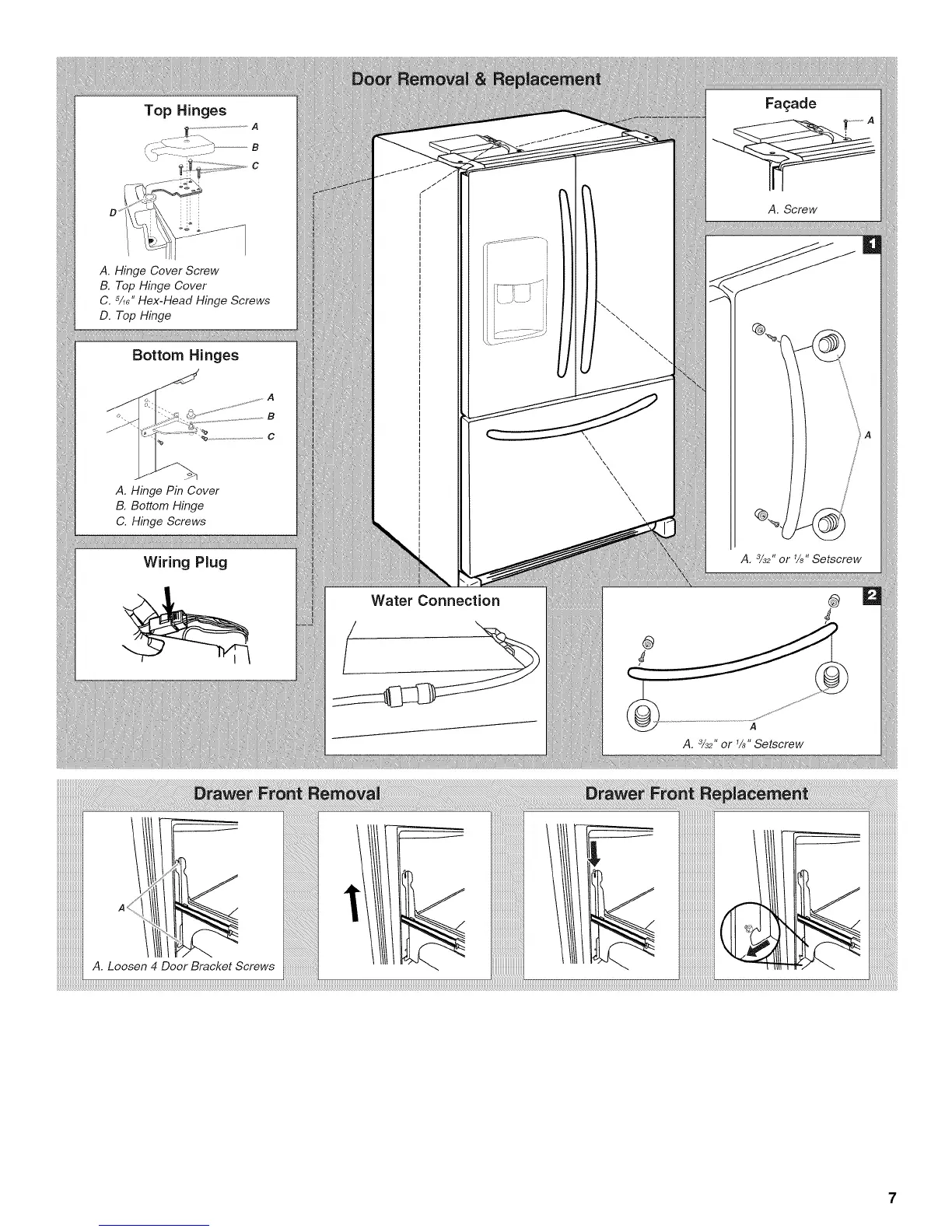

KitchenAid KFIL27CXMS3 - Water Connection

Top Hinges
A. Hinge Cover Screw
B, Top Hinge Cover
C, 5/18"Hex-Head Hinge Screws
D. Top Hinge
Bottom Hinges
A
B
C
A, Hinge Pin Cover
B, Bottom Hinge
C. Hinge Screws
Wiring Plug
Water Connection
\\
\\
\\\\
\\
\\
\\\
\\
\\\
\\
\\
\
Fa_:ade
A. Screw
A. 3/32"or 1/8"Setscrew
A
A, 3/32" or 1/8"Setscrew
A. Loosen 4 Door Bracket Screws
