KitchenAid KPM5 - Stand Mixer Wiring Diagram - International Models - Bowl Lift and R F Filter

KITCHENAID
Stand Mixer Service Manual LIT4177310-C 2005 KitchenAid
.
Appendix E

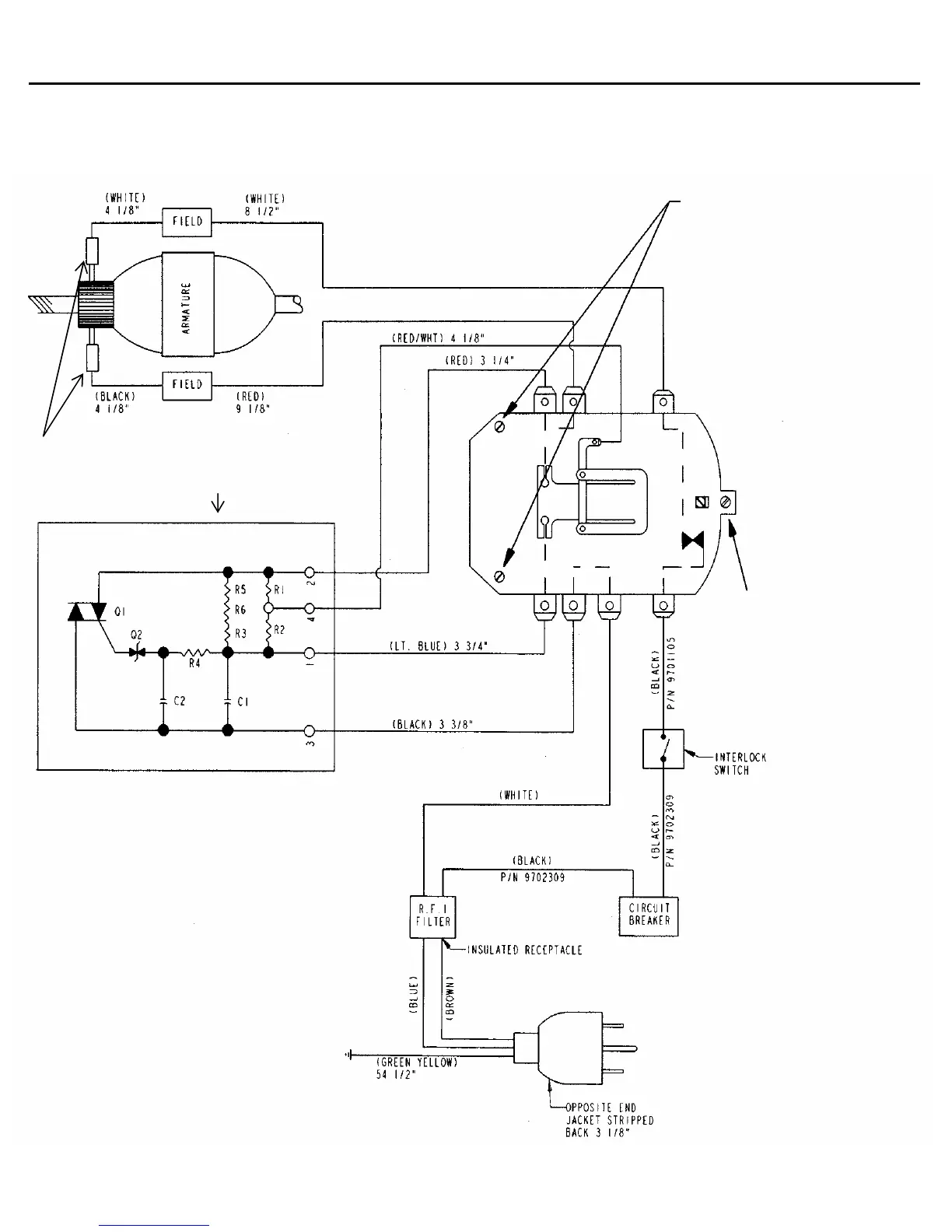

STAND MIXER WIRING DIAGRAM
INTERNATIONAL MODELS - BOWL LIFT and R F FILTER
Adjust these screws equally to give
60 R P M at the planetary on Stir Speed.
If using a digital tachometer at the
attachment hub, set the reading to 40 - 64
R P M on Stir Speed.
Adjust this screw to give 175
- 180 R P M at the planetary for
speed 6 after Stir Speed has been
adjusted. If using a digital
tachometer at the attachment hub,
set the reading at 141 - 170 R P M.
Phase Control
Brush Holders
