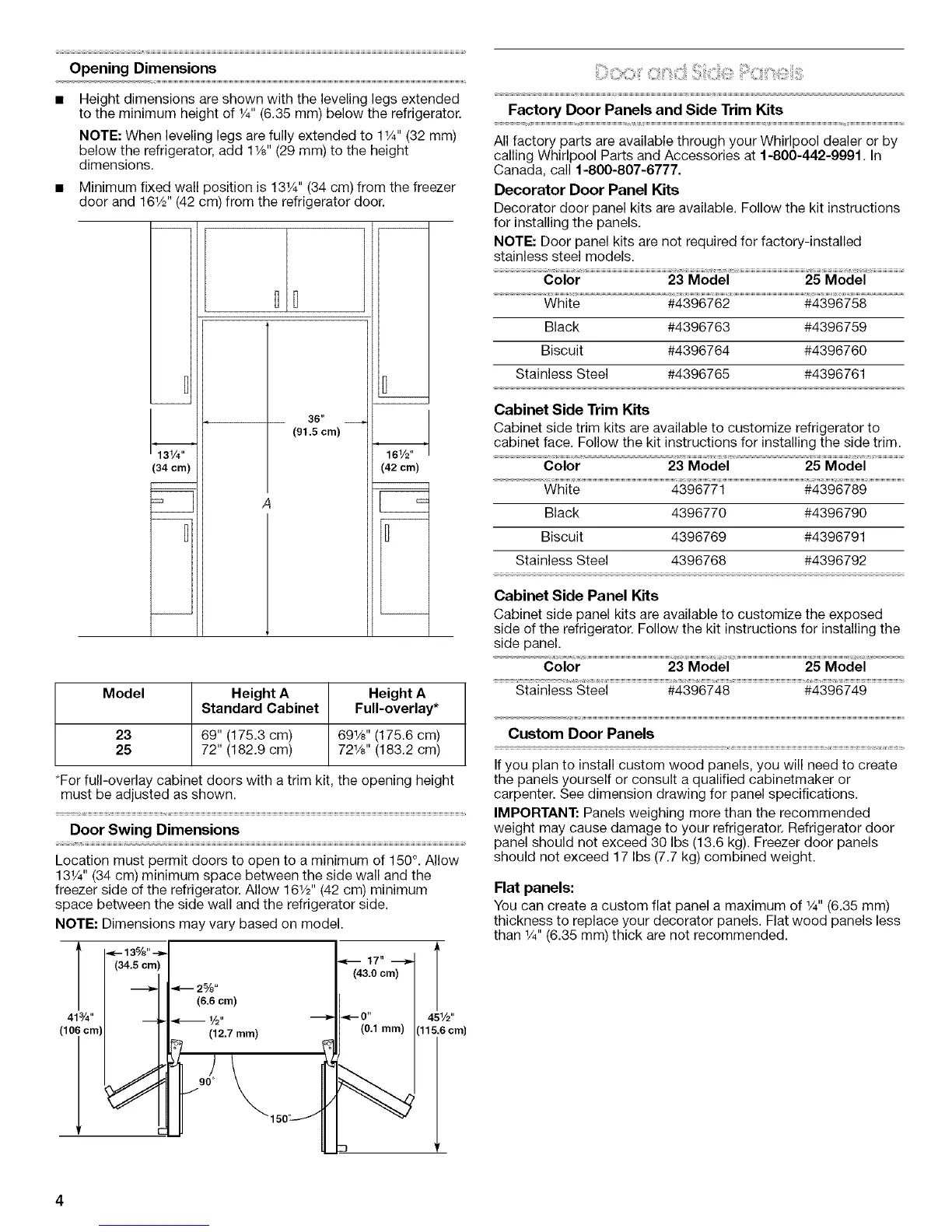

Opening Dimensions
• Height dimensions are shown with the leveling legs extended
to the minimum height of 1/4"(6.35 mm) below the refrigerator.
NOTE: When leveling legs are fully extended to 11/4"(32 mm)
below the refrigerator, add 11/8"(29 mm) to the height
dimensions.
• Minimum fixed wall position is 131/4'' (34 cm) from the freezer
door and 161/2'' (42 cm) from the refrigerator door.
131/4"
(34 cm)
36" _
(91.5 cm)
A
161/2"
(42 cm)
Model Height A Height A
Standard Cabinet Full-overlay*
23 69" (175.3 cm) 691/8''(175.6 cm)
25 72" (182.9 cm) 721/8'' (183.2 cm)
*For full-overlay cabinet doors with a trim kit, the opening height
must be adjusted as shown.
Door Swing Dimensions
Location must permit doors to open to a minimum of 150°. Allow
131/4'' (34 cm) minimum space between the side wall and the
freezer side of the refrigerator. Allow 161/='' (42 cm) minimum
space between the side wall and the refrigerator side.
NOTE: Dimensions may vary based on model.
!
(34.5 crnll
-_a,.- I I<[_ 25/8 "
I II (o0oml
(,lioml .
T
451/2''
[115.6 cm)
Factory Door Panels and Side Trim Kits
All factory parts are available through your Whirlpool dealer or by
calling Whirlpool Parts and Accessories at 1-800-442-9991. In
Canada, call 1-800-807-6777.
Decorator Door Panel Kits
Decorator door panel kits are available. Follow the kit instructions
for installing the panels.
NOTE: Door panel kits are not required for factory-installed
stainless steel models.
Color 23 Model 25 Model
White #4396762 #4396758
Black #4396763 #4396759
Biscuit #4396764 #4396760
Stainless Steel #4396765 #4396761
Cabinet Side Trim Kits
Cabinet side trim kits are available to customize refrigerator to
cabinet face. Follow the kit instructions for installing the side trim.
Color 23 Model 25 Model
White 4396771 #4396789
Black 4396770 #4396790
Biscuit 4396769 #4396791
Stainless Steel 4396768 #4396792
Cabinet Side Panel Kits
Cabinet side panel kits are available to customize the exposed
side of the refrigerator. Follow the kit instructions for installing the
side panel.
i,
Color 23 Model 25 Model
Stainless Steel #4396748 #4396749
Custom Door Panels
If you plan to install custom wood panels, you will need to create
the panels yourself or consult a qualified cabinetmaker or
carpenter. See dimension drawing for panel specifications.
IMPORTANT: Panels weighing more than the recommended
weight may cause damage to your refrigerator. Refrigerator door
panel should not exceed 30 Ibs (13.6 kg). Freezer door panels
should not exceed 17 Ibs (7.7 kg) combined weight.
Flat panels:
You can create a custom flat panel a maximum of 1/4"(6.35 mm)
thickness to replace your decorator panels. Flat wood panels less
than 1/4"(6.35 mm) thick are not recommended.
To Next Page
