KitchenAid KSRK25FVBL01 - Refrigerator Shelf Parts

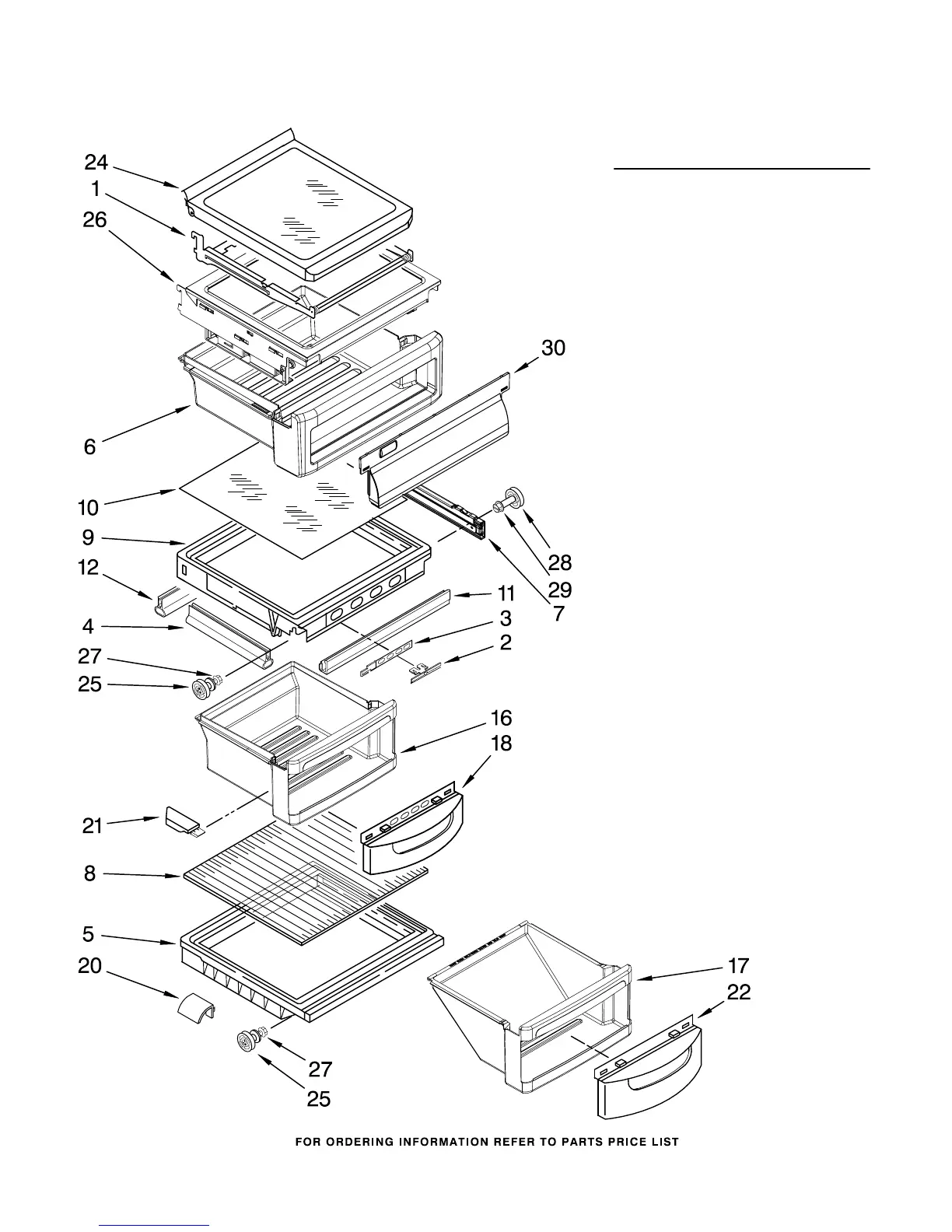

REFRIGERATOR SHELF PARTS
4
For Models: KSRK25FVWH01, KSRK25FVBL01, KSRK25FVBT01, KSRK25FVMK01, KSRK25FVSS01, KSRK25FVMS01
(White) (Black) (Biscuit) (Mono Stainless) (Stainless Steel) (Mono Stainless)
W10233042
Illus. Part
No. No. DESCRIPTION
1 2195975 Shelf Assembly,
Cantilever (3)
2 2301025 Button, Humidity
3 2301026 Slide, Humidity
4 2301117 Gasket, Side (2)
5 2301568 Cover, Meat Pan
(Includes Items
13, 14, 15 & 20)
6
W10142717 Snack Pan
(Includes 30)
7 Glide Assy
2301549 Left Side
2301548 Right Side
8 2301010 Glass, Cover
9 2301567 Cover, Crisper
(Includes 2,
3, 4, 11, 12,
13, 14 & 19)
10 2301009 Glass, Cover
11 2301116 Gasket (Front)
12 2301115 Gasket (Rear)
16
W10165598 Crisper Pan
(Includes 13,
14, 18, 19 & 21)
17
W10165656 Meat Pan
(Includes 13,
14, 19 & 22)
18 2301001 Window, Crisper
20 2301126 Deflector
21 Cap, Crisper Pan
2301016 Right Side
2301017 Left Side
22 2301227 Window, Meat Pan
24 2216102 Shelf & Roller
Assembly
25 2196485 Stud Assembly
26
W10141750 Shelf, Snack Pan
27 3400894 Screw
28 2196483 Stud Assembly
29 8281158 Screw
30 2179243 Trim, Snack Pan
