KitchenAid KSRV22FVBL01 - Air Flow Parts

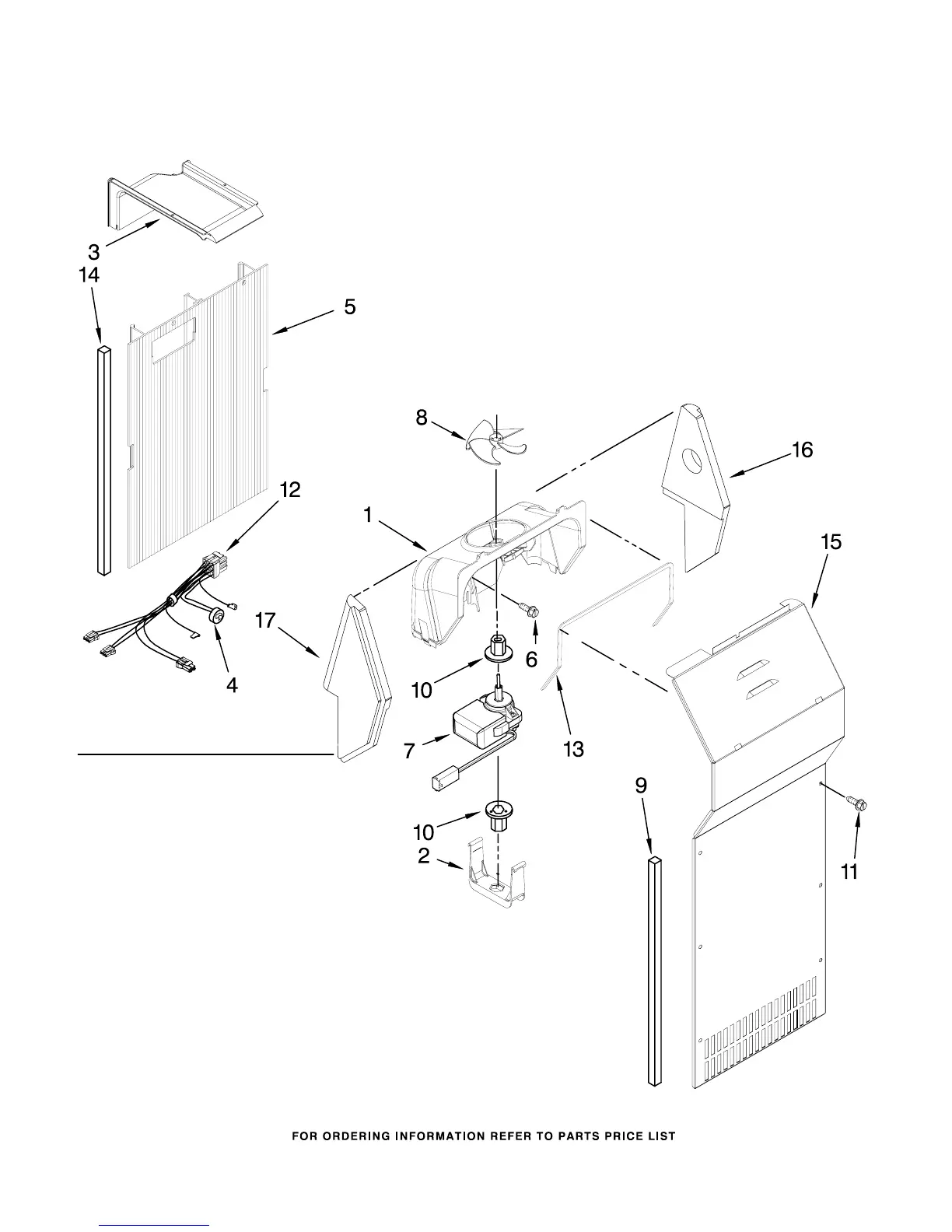

AIR FLOW PARTS
17
For Models: KSRV22FVWH01, KSRV22FVBT01, KSRV22FVBL01, KSRV22FVSS01, KSRV22FVMS01
(White) (Biscuit) (Black) (Stainless) (Monochromatic Stainless)
W10246564
Illus. Part
No. No. DESCRIPTION
1 2182119 Fan Scroll
2 2155590 Retainer,
Fan Motor
3 2313359 Diffuser, Air Duct
4 2319914 Bi−Metal, Defrost
5 2312009 Air Duct Freezer
6 489478 Screw
7 2315549 Fan Motor
8 2169142 Fan Blade
9 2304241 Gasket, Evaporator
Cover (2)
10 2176759 Fan Grommet (2)
11 8281159 Screw
12 2310237 Harness, Fan
Evaporator
(Includes #4)
13 2155788 Gasket, Fan Scroll
14 2203875 Gasket
15
W10207507 Cover, Evaporator
(Includes #9)
16 2203595 Support, R.S
17 2203596 Support, L.S
