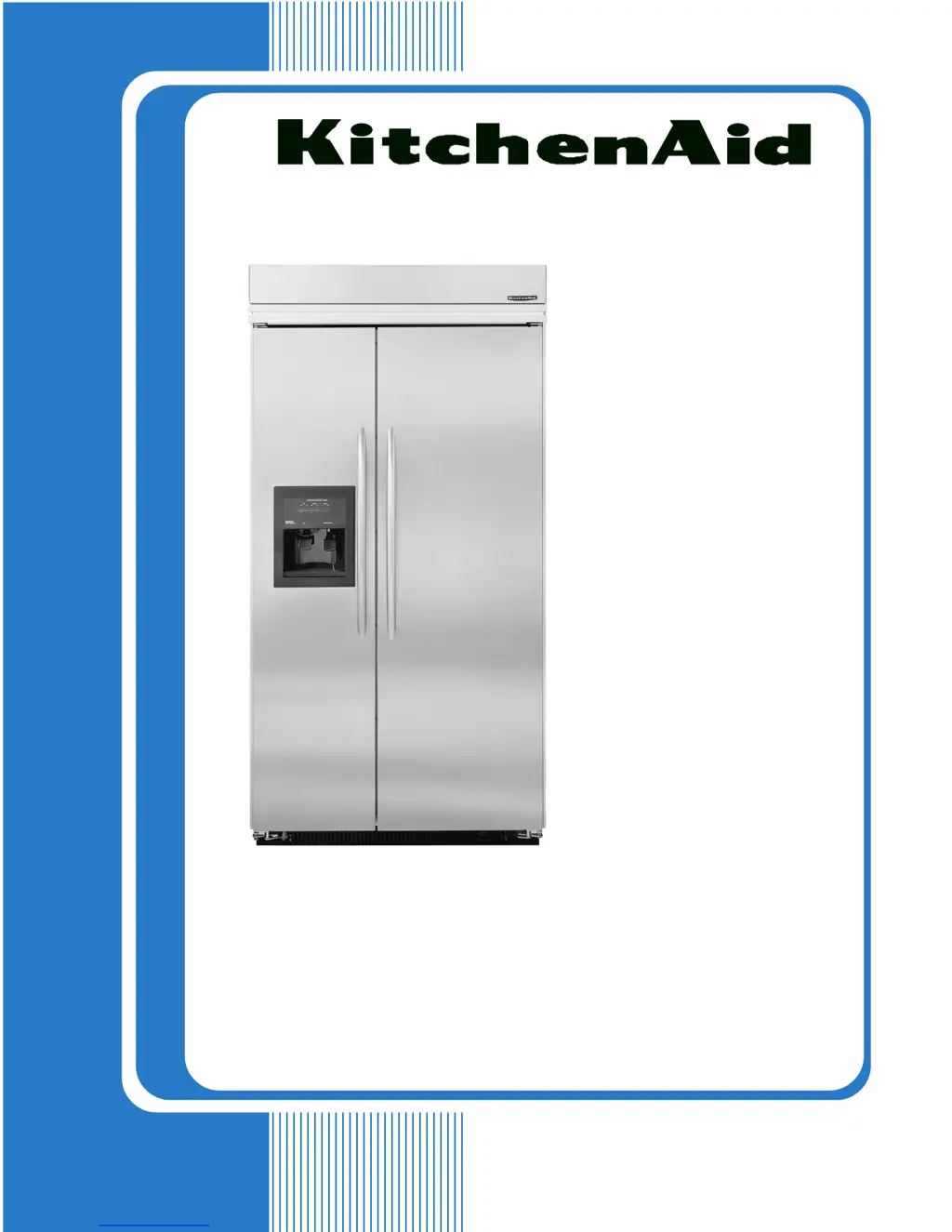

TECHNICAL EDUCATION
JOB AID 4317326A
KAR-11
2001 K MODEL
BUILT-IN SIDE-BY-SIDE
REFRIGERATOR WITH VARIABLE
CAPACITY COMPRESSOR
MODELS:
KSSC36FKB00
KSSC36FKS00
KSSC36QKS00
KSSC42FKB00
KSSC42FKS00
KSSC42QKS00
KSSC48FKB00
KSSC48FKS00
KSSC48QKS00
KSSP36QKS00
KSSP42QKS00
KSSP48QKS00
KSSS36FKB00
KSSS36FKT00
KSSS36FKW00
KSSS36FKX00
KSSS36QKB00
KSSS36QKT00
KSSS36QKW00
KSSS36QKX00
KSSS42FKB00
KSSS42FKT00
KSSS42FKW00
KSSS42FKX00
KSSS42QKB00
KSSS42QKT00
KSSS42QKW00
KSSS42QKX00
KSSS48FKB00
KSSS48FKT00
KSSS48FKW00
KSSS48FKX00
KSSS48QKB00
KSSS48QKT00
KSSS48QKW00
KSSS48QKX00

Table of Contents

Questions and Answers

  • S
    Spencer PachecoAug 21, 2025
    Why is my KitchenAid KSSC42QKS00 compartment too cold?
    • C
      Cindy KramerAug 21, 2025
      If your KitchenAid Refrigerator compartment is too cold, here are some possible causes: * The refrigerator control may be set too cold. Try setting it to a higher temperature. * The refrigerator thermistor could be malfunctioning. Check the wires and connectors. Run diagnostics, and if a defective thermistor is indicated, confirm with an ohms test. * The air door might be stuck open or inoperative. Look for ice or other blockages in the air door. Run a diagnostics test to operate the air door. Check for proper DC input voltage. If the voltage is normal and the door still won't operate, replace the air door. * The air door seal might be missing or damaged. Repair or replace the seal. * There could be an issue with the main PC board. Run a diagnostics test to operate the air door.
  • C
    cdayAug 25, 2025
    Why is my KitchenAid KSSC42QKS00 freezer too cold?
    • A
      afritzAug 26, 2025
      If your KitchenAid Refrigerator's freezer compartment is too cold: * The freezer control may be set too cold. Set it to a higher temperature. * The refrigerator may be operating in Max Cool or Automatic Max Ice Mode. This is normal operation. * The freezer thermistor might be faulty. Check the wires and connectors. Run diagnostics, and if a defective thermistor is indicated, confirm with an ohms test. * There might be no evaporator fan motor feedback. The fan motor will run at 3000 rpm.
  • J
    Jose NguyenAug 28, 2025
    What to do if the 'Call Service' icon lights up on my KitchenAid KSSC42QKS00?
    • L
      Lisa JacksonAug 28, 2025
      If the "Call Service" icon lights up and/or the alarm is activated on your KitchenAid Refrigerator, it could be due to several reasons: * The main control board may be overheating, possibly due to blocked condenser airflow or a malfunctioning condenser fan motor. Check these components. * The refrigerator temperature might be above 48°F or the freezer above 15°F for more than 3 hours. In this case, run diagnostics to test all components. * Both thermistors might have failed. Run diagnostics and test the thermistors and their leads. * There might be no feedback from the evaporator fan motor. Run diagnostics and test the fan motor and its wiring.
  • P
    pearsonstacySep 1, 2025
    What to do if the condenser fan runs but the compressor won't start on my KitchenAid KSSC42QKS00?
    • M
      Michael WilkinsSep 1, 2025
      If the condenser fan runs but the compressor won't start on your KitchenAid Refrigerator, the following could be the issue: * There may be no DC control voltage from the main PCB to the inverter board. * The control voltage wires may be loose or reversed. Check the connections and repair as needed. * There may be an issue with the compressor. * There may be an issue with the inverter board.
  • F
    fvasquezSep 5, 2025
    Why does my KitchenAid Refrigerator run too long?
    • J
      James MartinSep 5, 2025
      It is normal for your KitchenAid Refrigerator to run for extended periods. It is designed to run almost constantly at the lowest possible compressor speed because starting and stopping the compressor uses more power than continuous low rpm operation.
  • M
    Mary SanchezSep 8, 2025
    How to fix no temperature display and no interior lights on my KitchenAid KSSC42QKS00?
    • M
      Michael BanksSep 8, 2025
      If there is no temperature display and no interior lights on your KitchenAid Refrigerator, consider these possibilities: * The unit may be set to Holiday Mode. Press the Holiday Mode key to cancel this operation. * Either door may have been open for over 10 minutes. Close the door and/or check the door switches.
  • H
    hardincodyNov 12, 2025
    Why is my KitchenAid KSSC42QKS00 Refrigerator compartment too warm?
    • M
      Matthew MartinezNov 12, 2025
      If your KitchenAid Refrigerator compartment is too warm, there are several potential causes: * The refrigerator control might be set too warm. Try setting it to a lower temperature. * There might be an issue with the refrigerator thermistor. Check the wires and connectors. Run diagnostics, and if the thermistor is indicated as defective, confirm with an ohms test. * The air door could be stuck closed or inoperative. Look for ice or other blockages. Run a diagnostics test to operate the air door. * The evaporator fan motor may not be running. Run a diagnostics test to operate the evaporator fan motor. Check for a blocked fan blade and repair if necessary. Check for 5-17vdc from pin P7-9 to P7-10; if the voltage is correct, replace the motor. * There could be blocked airflow. Chec...
  • J
    Jeffery PittsNov 16, 2025
    Why is my KitchenAid Refrigerator freezer compartment too warm?
    • K
      Kaitlyn RhodesNov 16, 2025
      If your KitchenAid Refrigerator's freezer compartment is too warm, consider the following: * The freezer control might be set too warm. Set it to a lower temperature. * The freezer thermistor may be faulty. Check the wires and connectors. Run diagnostics, and if a defective thermistor is indicated, confirm with an ohms test. * The evaporator fan motor might not be running. Run a diagnostics test to operate the evaporator fan motor. Check for a blocked fan blade and repair as necessary. Check for 5-17vdc from pin P7-9 to P7-10; if the voltage is correct, replace the motor. * The condenser fan motor may not be running. Check for a blocked fan blade and repair as necessary. * Frost may be blocking the evaporator. Run diagnostics to operate the defrost system, and test the defrost h...

Summary

KitchenAid Technical Education

General Information, Specifications, and Installation

Covers safety, model details, specifications, warranty, installation clearances, and leveling.

Refrigerator Theory of Operation

Explains electronic controls, component functions, defrost, alarms, modes, and air circulation.

Component Access and Testing Methods

Guides for locating, removing, and testing all major refrigerator components.

Diagnosis and Troubleshooting Procedures

How to use the diagnostic mode and a chart for identifying and resolving common problems.

Wiring Diagrams and Strip Circuits

Electrical schematics and simplified circuit diagrams for various refrigerator systems.

KitchenAid KSSC42QKS00 Specifications

General IconGeneral
BrandKitchenAid
Model NumberKSSC42QKS00
Refrigerator TypeSide-by-Side
Ice MakerYes
Water DispenserYes
FinishStainless Steel
Counter DepthNo
Energy Star CertifiedYes
Width42 in.
