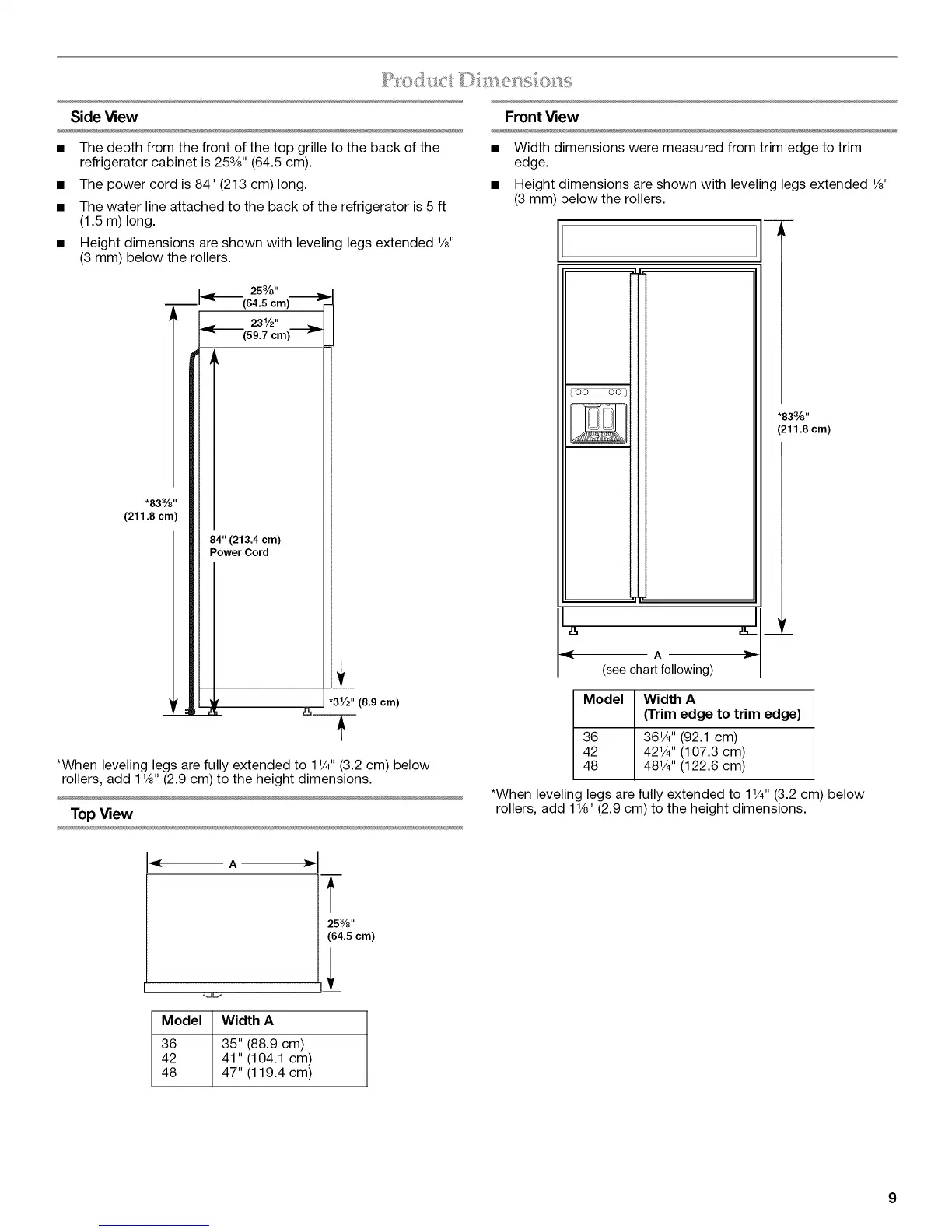

Side View
• The depth from the front of the top grille to the back of the
refrigerator cabinet is 253/8'' (64.5 cm).
• The power cord is 84" (213 cm) long.
• The water line attached to the back of the refrigerator is 5 ft
(1.5 m) long.
• Height dimensions are shown with leveling legs extended V8"
(3 mm) below the rollers.
"833/8"
(211.8 cm)
ml* m
k
T
253/8"
---_
(64.5 cm)
231/2"
(59.7 cm)
84" (213.4 cm)
Power Cord
"31/2" (8.9 cm)
*When leveling legs are fully extended to 1V4"(3.2 cm) below
rollers, add 1V8"(2.9 cm) to the height dimensions.
TopView
Front View
• Width dimensions were measured from trim edge to trim
edge.
• Height dimensions are shown with leveling legs extended V8"
(3 mm) below the rollers.
(see chart following)
*83%"
(211.8 cm)
_f
Model Width A
(Trim edge to trim edge)
36 36V4" (92.1 cm)
42 42V4" (107.3 cm)
48 48V4" (122.6 cm)
*When leveling legs are fully extended to 1V4" (3.2 cm) below
rollers, add 1V8" (2.9 cm) to the height dimensions.
A
Model Width A
36 35" (88.9 cm)
42 41" (104.1 cm)
48 47" (119.4 cm)
T
253/8''
(64.5 cm)
