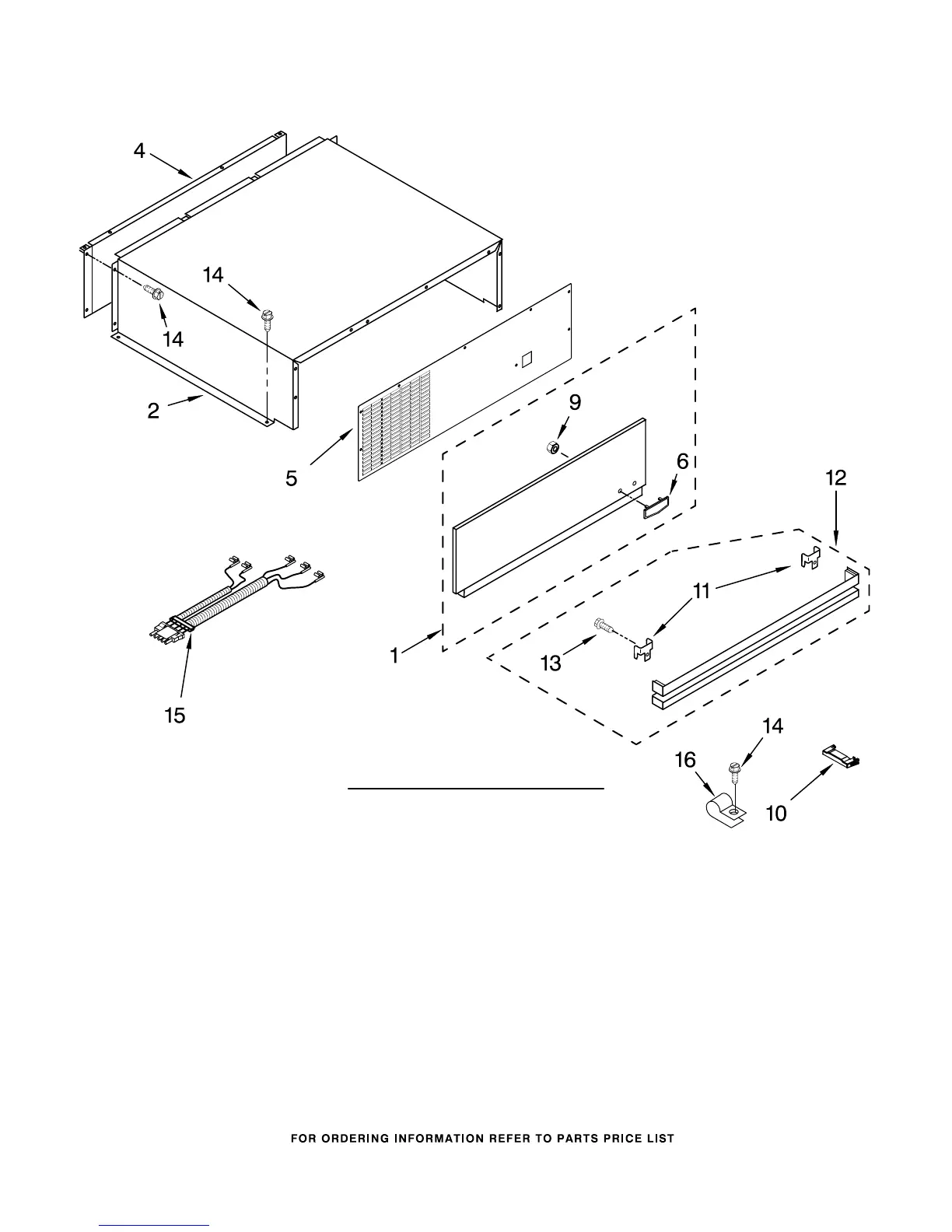

TOP GRILLE AND UNIT COVER PARTS
8
Illus. Part
No. No. DESCRIPTION
For Model: KSSC48QMS00
(Stainless Steel)
8198472
1 2257412S Panel, Decorator
2 2259320 Cover, Unit
4 2256466 Back Panel
5 2259095 Cover, Unit
Front
6 2005292 Nameplate
9 2004333 Nut
10 2221297 Enclosure,
Terminal
11 2254759 Bracket, Louver
12 2254762S Grille, Louver
13 488879 Screw
14 487415 Screw
15 2187429 Wire Assembly,
RC/FC Light Switch
16 489348 Clamp
