I
O
O
O
Hinge
®
NOTE: Do not place the door stop screw in
the 130° position on Overlay Series models.
See "Adjust and Remove Doors."

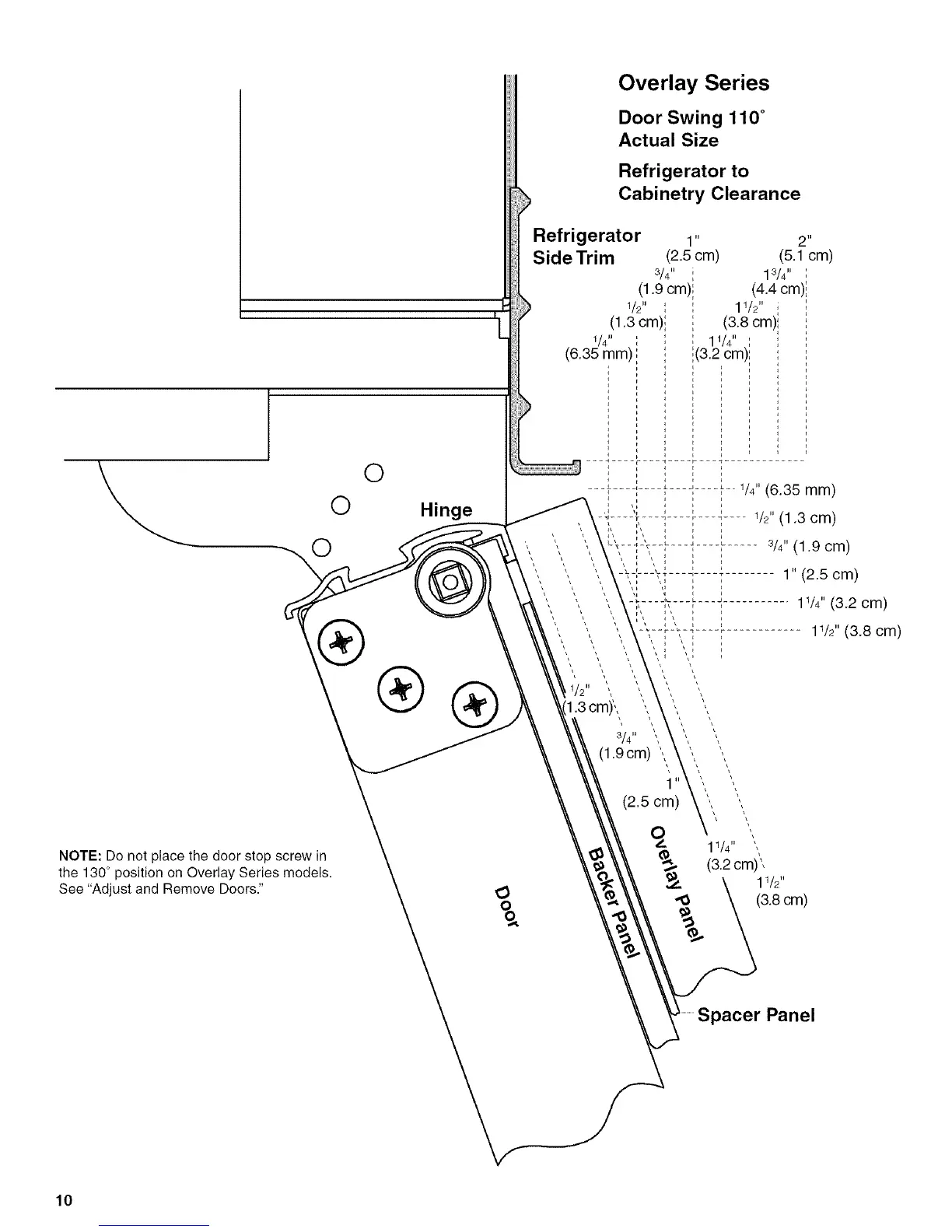

Overlay Series
Door Swing 110 °
Actual Size
Refrigerator to
Cabinetry Clearance
Refrigerator 1"
Side Trim (2.5cm)
3/4"
(1.9 cm)
1/2"
(1.3 cm)
1/4"
(6.35 mm)
1/2" ,
1.3cmi",
&
3/4"(1.9 cm)
1" (2.5 cm)
11/4"(3.2 cm)
1W' (3.8 cm)
Panel
