KitchenAid KSSO42QMX01 - Page 6

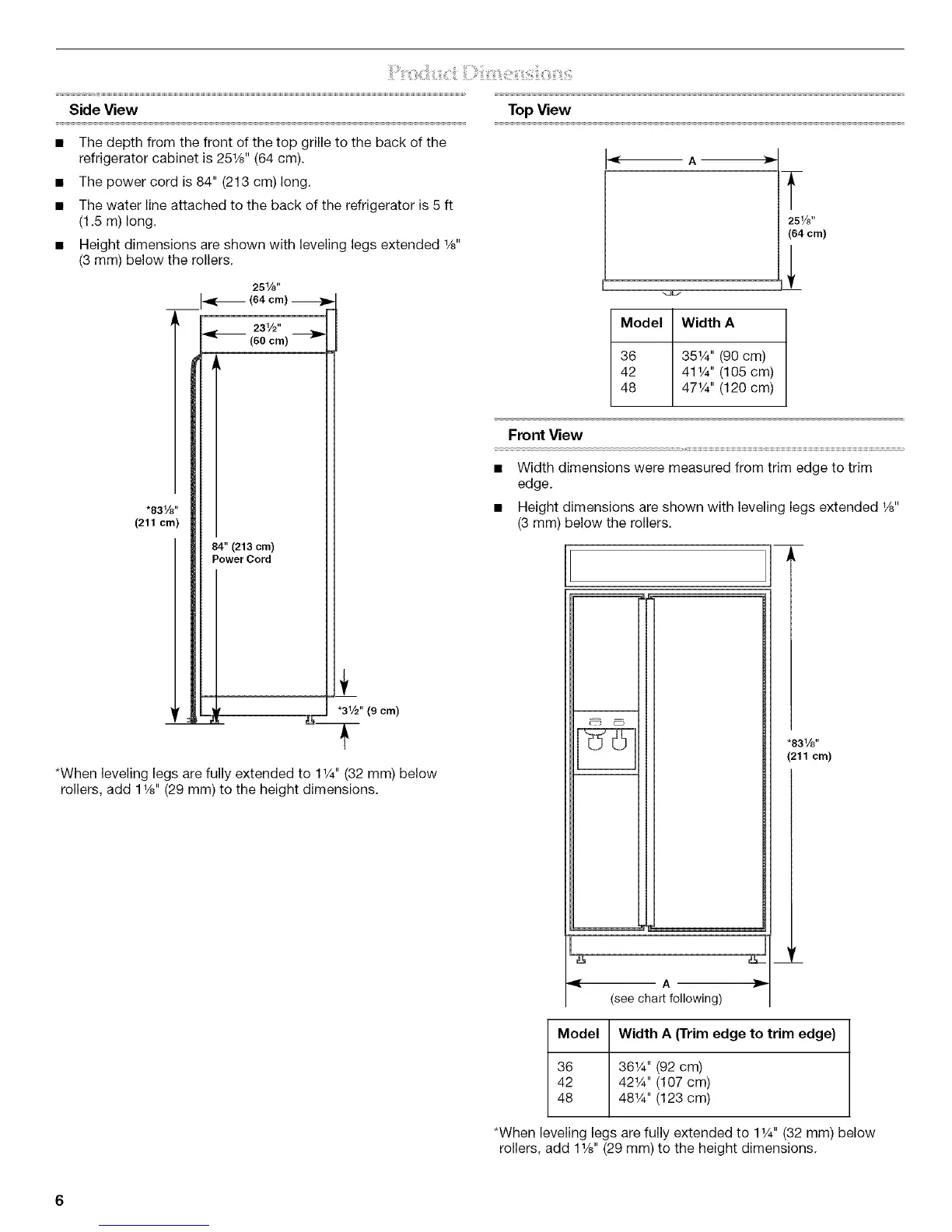

Side View Top View
• The depth from the front of the top grille to the back of the
refrigerator cabinet is 251/8'' (64 cm).
• The power cord is 84" (213 cm) long.
• The water line attached to the back of the refrigerator is 5 ft
(1.5 m)long.
• Height dimensions are shown with leveling legs extended 1/8"
(3 mm) below the rollers.
A
T
251/8"
(64 cm)
.831/8 ''
(211 cm)
v ==
251/8"
(64 cm)
231/2"
(60 cm)
84" (213 cm)
Power Cord
"31/2'' (9 cm)
Model Width A
36 351/4'' (90 cm)
42 411/4" (105 cm)
48 471/4'' (120 cm)
Front View
• Width dimensions were measured from trim edge to trim
edge.
Height dimensions are shown with leveling legs extended 1/8"
(3 mm) below the rollers.
m
.831/8 ''
(211 cm)
*When leveling legs are fully extended to 11/4"(32 mm) below
rollers, add 11/8"(29 mm) to the height dimensions.
(see chart following)
Model Width A (Trim edge to trim edge)
36 361/4'' (92 cm)
42 421/4'' (107 cm)
48 481/4'' (123 cm)
*When leveling legs are fully extended to 11/4"(32 mm) below
rollers, add 11/8"(29 mm) to the height dimensions.
