KitchenAid KSSP36QMS02 - Page 8

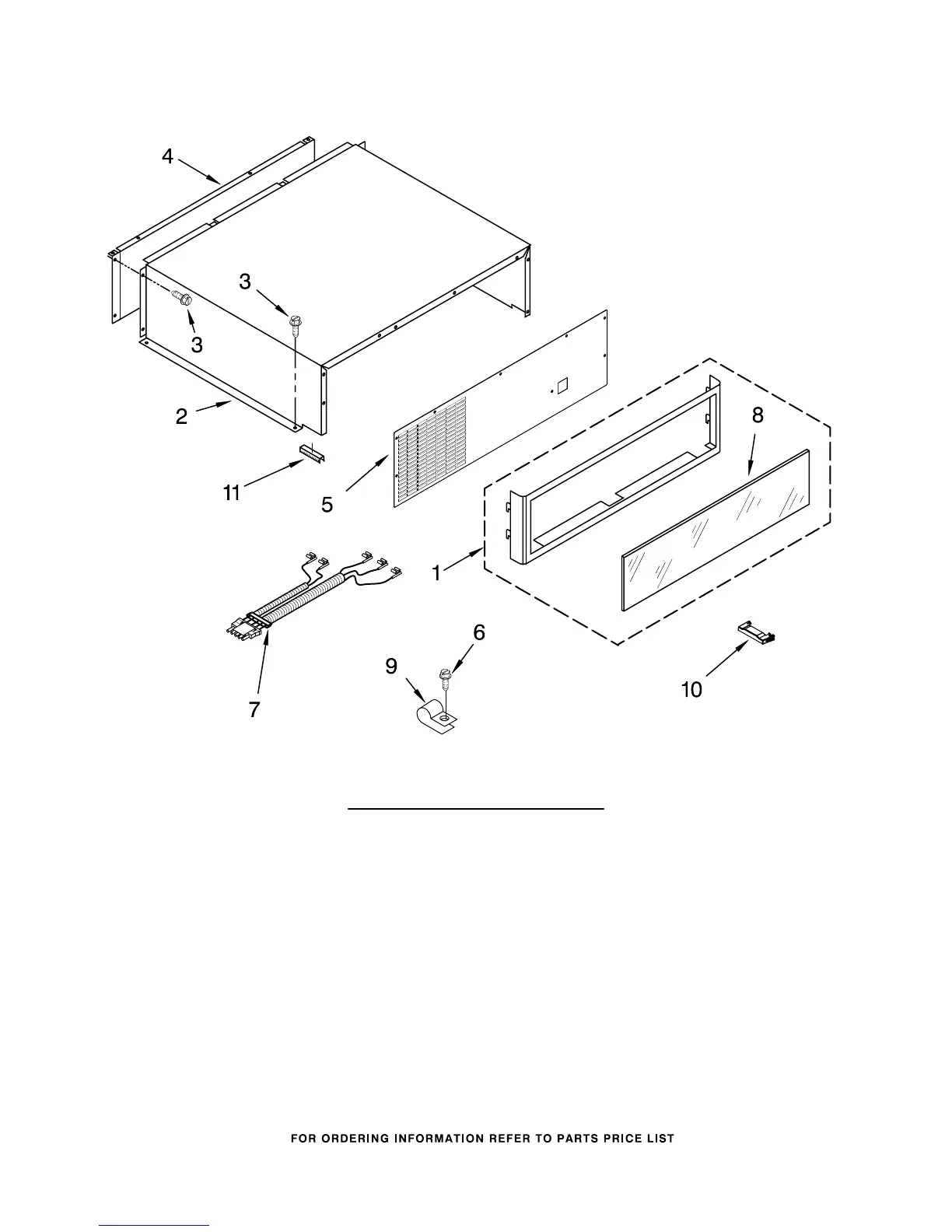

TOP GRILLE AND UNIT COVER PARTS
8
For Model: KSSP36QMS02
(Stainless Steel)
8214649
Illus. Part
No. No. DESCRIPTION
1 Top Grille
Assembly
2257401S Stainless Steel
2 2259320 Cover, Unit
3 486194 Screw
4 2256466 Back Panel
5 2302974 Cover, Unit Front
6 487415 Screw
7 2187429 Wire Assembly
RC/FC Light Switch
8 Panel, Decorative
Insert
2220944 Stainless Steel
9 489348 Clamp
10 2221297 Enclosure,
Connector
11 2215910 Grommet, Flexible
