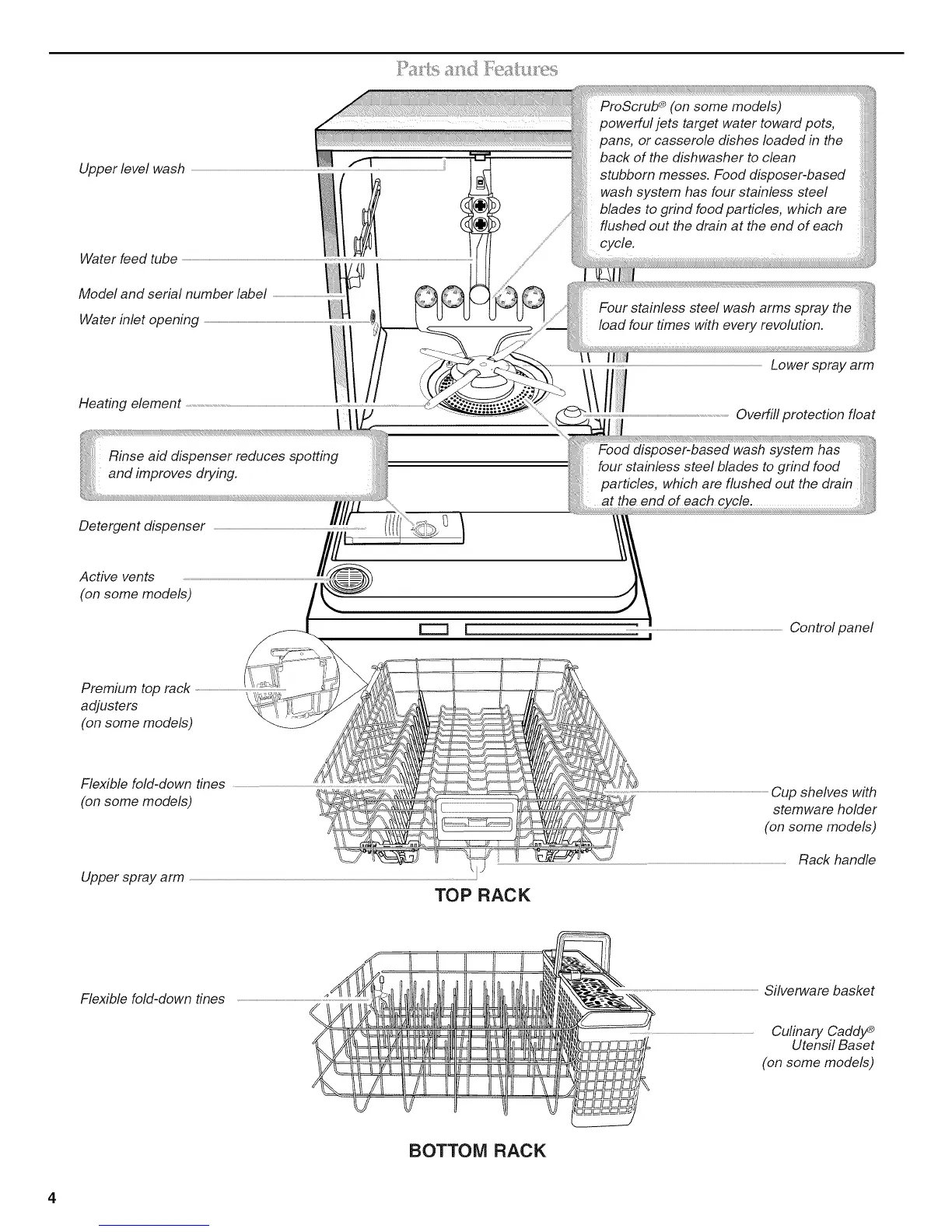

KitchenAid KUDC10IXBL5 - Parts and Features; Product View

Upper level wash f! ...........................................................................................
J
Water feed tube
Model and serial number label
Water inlet opening
ProScrub ® (on some models)
powerful jets target water toward pots,
pans, or casserole dishes loaded in the
back of the dishwasher to clean
stubborn messes. Food disposer-based
wash system has four stainless steel
blades to grind food particles, which are
flushed out the drain at the end of each
cycle.
Four stainless steel wash arms spray the
load four times with every revolution.
Heating element
Rinse aid dispenser reduces spotting
and improves drying.
Lower spray arm
Overfill protection float
Food disposer-based wash system has
four stainless steel blades to grind food
particles, which are flushed out the drain
at the end of each c'
Active vents
(on some models)
.................................................................................................................................................................................................................Con_olpanel
Premium top rack ................................................................................................................
adjusters
(on some models)
Flexible fold-down tines
(on some models)
Upper spray arm
.............................il
TOP RACK
Cup shelves with
stemware holder
(on some models)
......................................................................................................................................................................................Rack handle
Flexible fold-down tines
Silverware basket
..................................................................................................................................................................Culinary Caddy e
Utensil Baset
(on some models)
BOTTOM RACK
