9

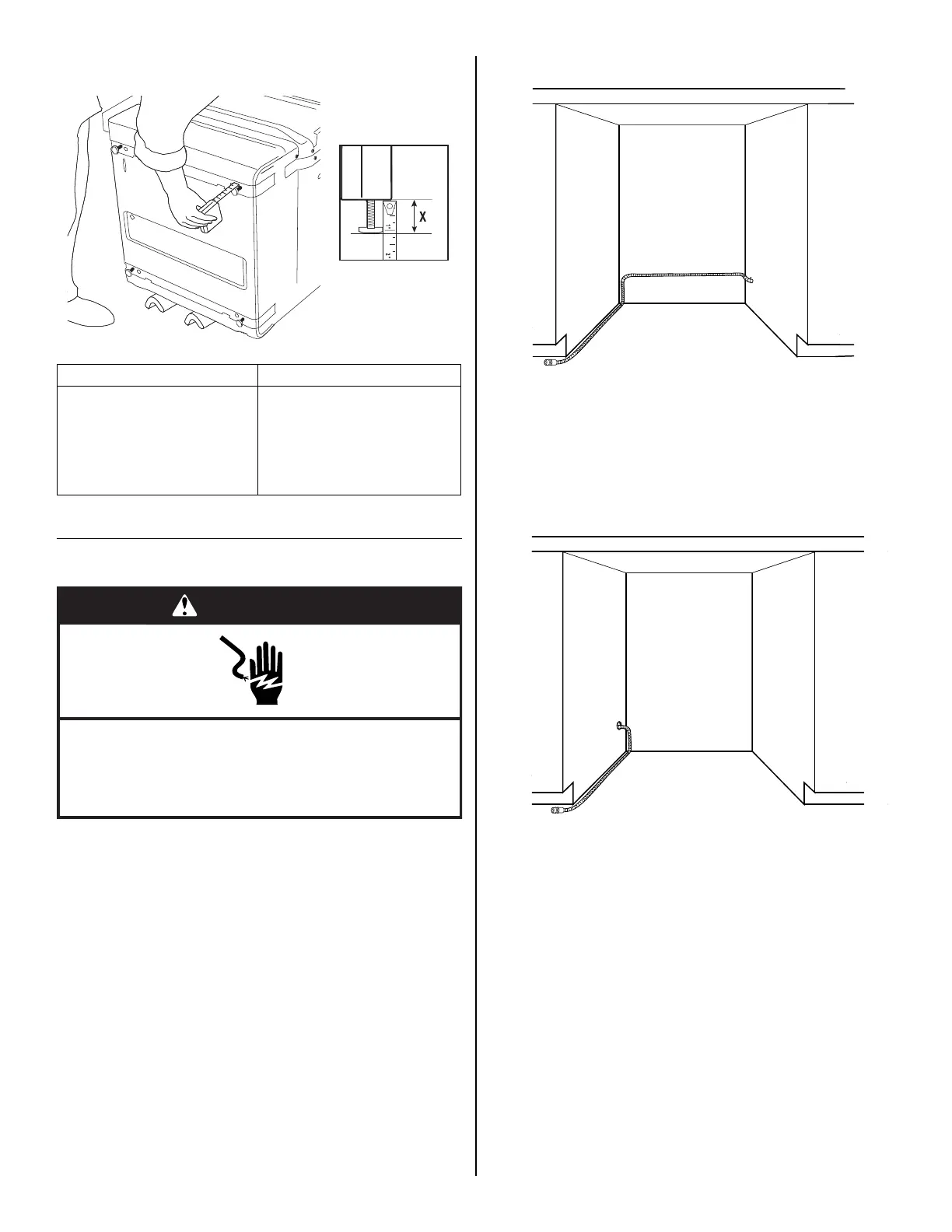

3. Adjust leveling legs based on the cabinet opening
measurement and the chart below.
4. Using two or more people, place dishwasher in upright
position.
Route Electrical Wiring
Follow all national and local codes and ordinances for completing
electrical supply to cabinet.
Option 1: Right-hand side utility route
After routing the electrical wire through the right-hand hole, attach
the wire to back left-hand side of cabinet wall 8" (20.32 cm) above
the floor. Then continue routing the wire along the left-hand side of
cabinet opening to the front of the opening.
Option 2: Left-hand side utility route
After routing the electrical wire through the left-hand hole,
continue routing the wire along the left-hand side of cabinet to the
front of the opening.
H : X H : X
33
³⁄₄
" (85.7 cm) : 0" 34
¹⁄₂
" (87.6 cm) :
⁵⁄₈
" (1.6 cm)
34" (86.3 cm) :
¹⁄₈
" (0.3 cm) 34
⁵⁄₈
" (87.9 cm) :
³⁄₄
" (1.9 cm)
34
¹⁄₈
" (86.7 cm) :¼" (0.6 cm) 34
³⁄₄
" (88.3 cm) :
⁷⁄₈
" (2.2 cm)
34
¹⁄₄
" (87 cm) :
³⁄₈
" (1 cm) 34
⁷⁄₈
" (88.6 cm) :1" (2.5 cm)
34
³⁄₈
" (87.3 cm) :½" (1.3 cm) 35" (88.9 cm) :1
¹⁄₈
" (2.9 cm)
X
WARNING
Disconnect electrical power at the fuse box or circuit
breaker box before installing dishwasher.
Failure to do so can result in death or electrical shock.
Electrical Shock Hazard
Route wire through 1½" (3.81 cm) hole located 8" (20.32 cm) above
the floor.
Route wire through 1½" (3.81 cm) hole located 8" (20.32 cm) above
the floor.
