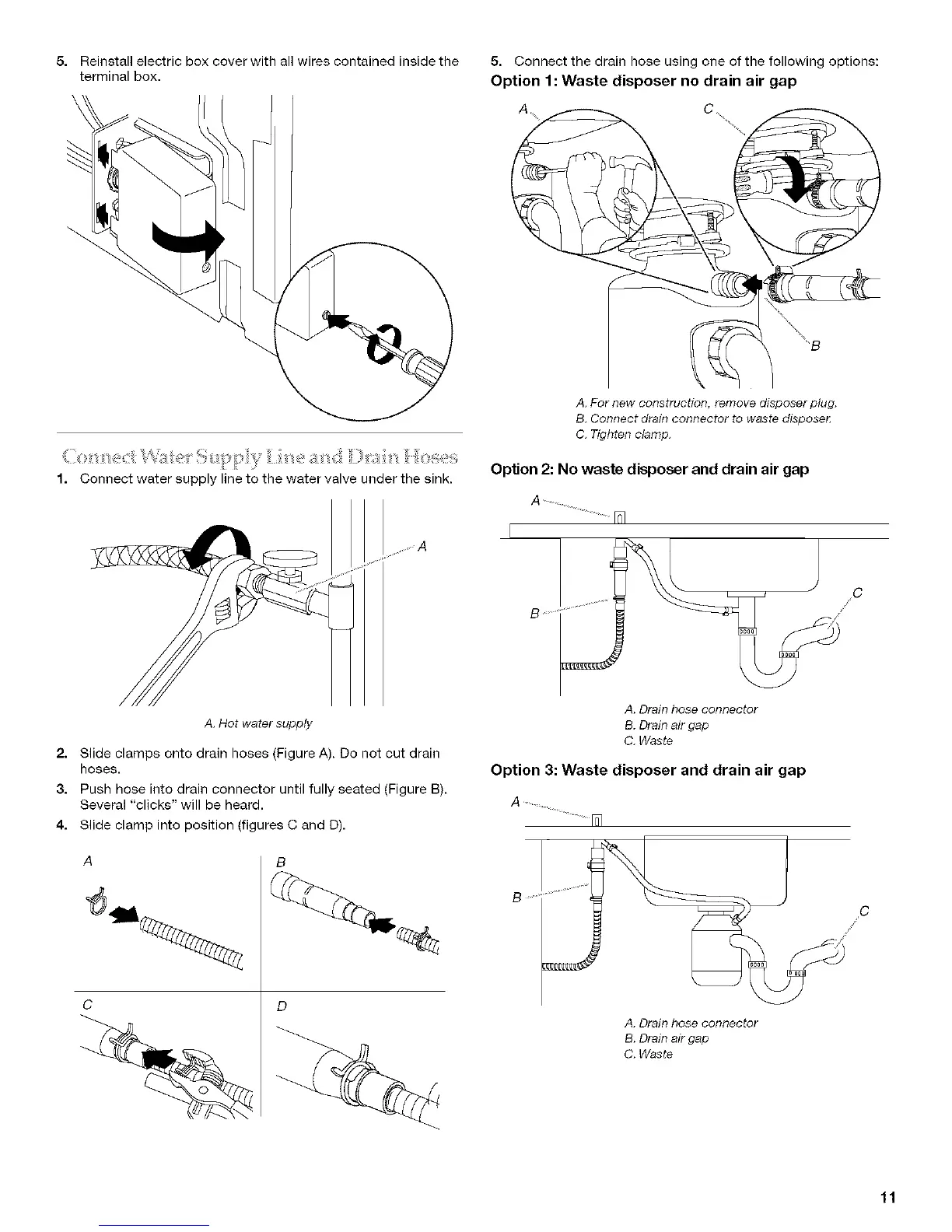

5. Reinstall electric box cover with all wires contained inside the 5. Connect the drain hoseusing one of the following options:
terminal box. Option 1: Waste disposer no drain air gap
1. Connect water supply line to the water valve under the sink.
A. For new construction, remove disposer plug.
B. Connect drain connector to waste dispose_
C. Tighten clamp.
Option 2: No waste disposer and drain air gap
C
A. Hot water supply
2. Slide clamps onto drain hoses (Figure A). Do net cut drain
hoses.
3. Push hose into drain connector until fully seated (Figure B).
Several "clicks" will be heard.
4. Slide clamp into position (figures C and D).
A B
C D
A. Drain hose connector
B. Drain air gap
C. Waste
Option 3: Waste disposer and drain air gap
S .......
/C
A. Drain hose connector
B. Drain air gap
C. Waste
11
