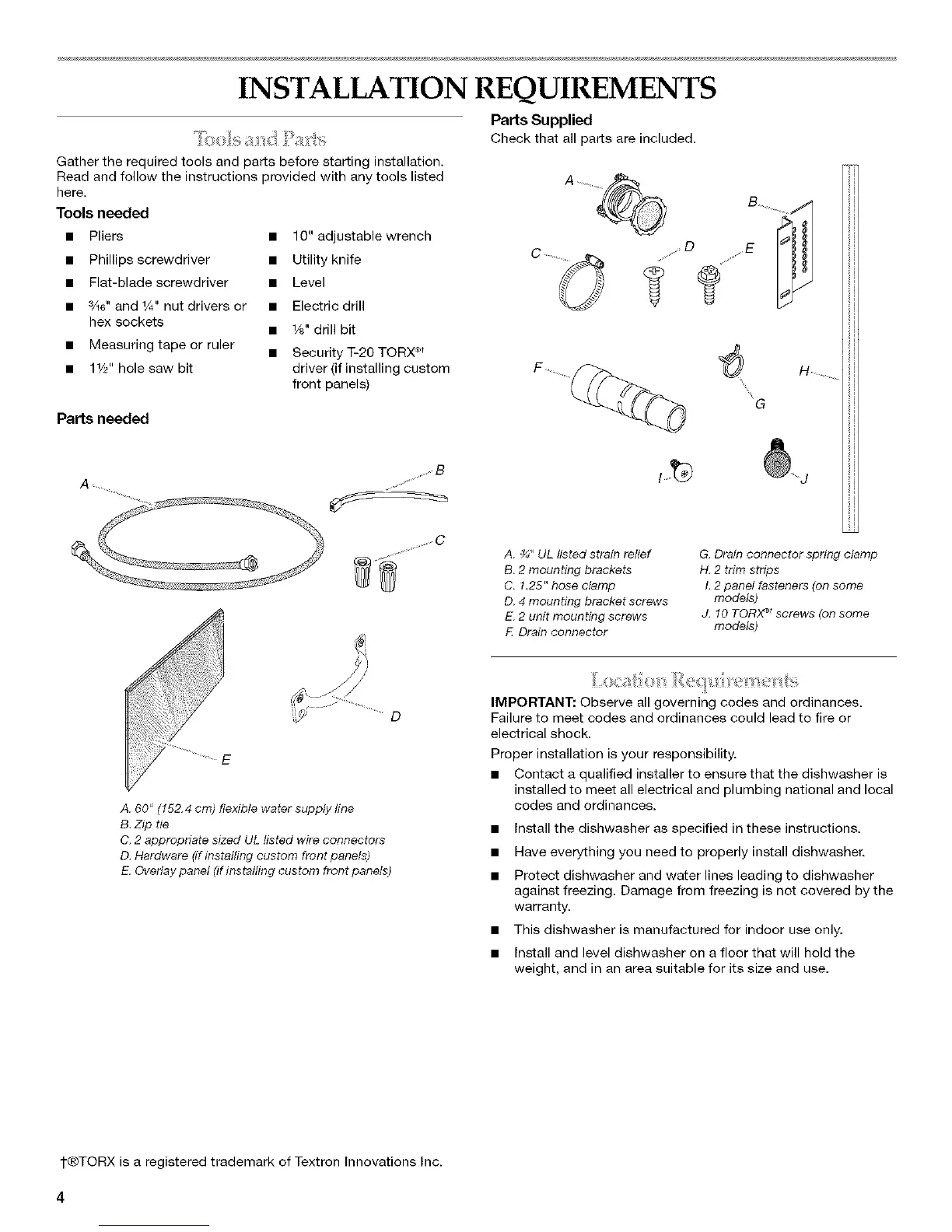

INSTALLATION REQUIREMENTS
Gather the required tools and parts before starting installation.
Read and follow the instructions provided with any tools listed
here.
Tools needed
• Pliers
• Phillips screwdriver
• Flat-blade screwdriver
• 3_6"and 1/_,,nut drivers or
hex sockets
• Measuring tape or ruler
• 11/2"hole saw bit
• 10" adjustable wrench
• Utility knife
• Level
• Electric drill
• 1A,"drill bit
• Security T-20 TORX ®_
driver (if installing custom
front panels)
PaNs needed
PaNs Supplied
Cheekth_ allpartsareineluded.
A. _4"UL Iisted strain relief
B. 2 mounting brackets
C. 1.25" hose clamp
D. 4 mounting bracket screws
E. 2 unit mounting screws
tE Drain connecter
G. Drain connector spring clamp
H. 2 trim strips
L 2 panel fasteners (on some
models)
J. 10 TORX_1screws (on some
models)
.... O
E
A. 60" (152.4 cm) flexible water supply fine
B. Zip tie
C. 2 appropriate sized UL listed wire connectors
D. Hardware (it installing custom front panels)
E. Overlay panel (if installing custom front panels)
IMPORTANT: Observe all governing codes and ordinances.
Failure to meet codes and ordinances could lead to fire or
electrical shock.
Proper installation is your responsibility.
• Contact a qualified installer to ensure that the dishwasher is
installed to meet all electrical and plumbing national and local
codes and ordinances.
• Install the dishwasher as specified in these instructions.
• Have everything you need to properly install dishwasher.
• Protect dishwasher and water lines leading to dishwasher
against freezing. Damage from freezing is not covered by the
warranty.
• This dishwasher is manufactured for indoor use only.
• Install and level dishwasher on a floor that will hold the
weight, and in an area suitable for its size and use.
1-®TORX is a registered trademark of Textron Innovations Inc.
4
