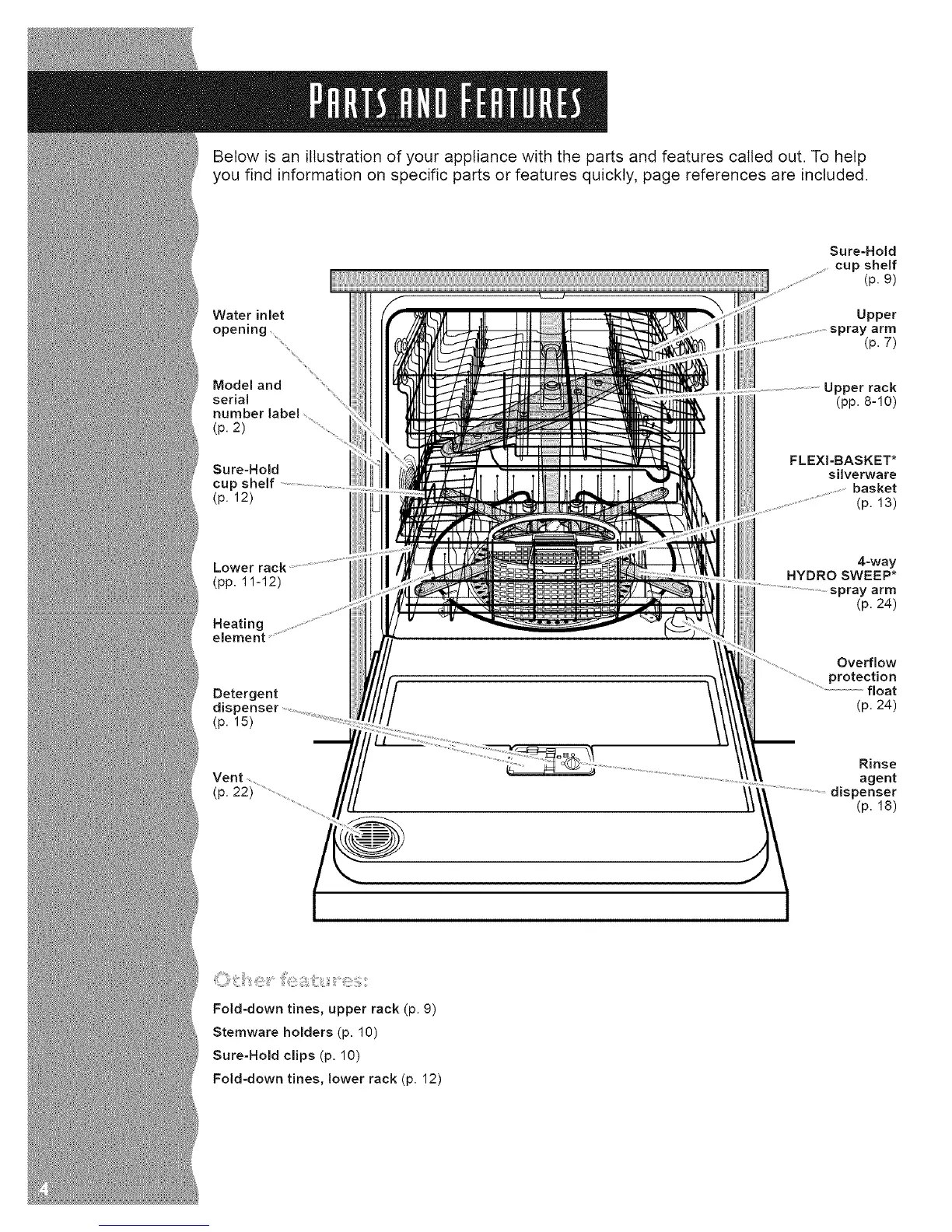

Below is an illustration of your appliance with the parts and features called out. To help
you find information on specific parts or features quickly, page references are included.
Water inlet
opening .....
Model and ..................
serial
number label .....
(p. 2)
Sure-Hold
cup shelf
(p. 12)
Sure=Hold
cup shelf
(p. 9)
Upper
r arm
(p. 7)
Upper rack
(pp. 8-10)
FLEXI-BASKET*
silverware
basket
(p. 13)
Lower rack
(pp. 11-12)
Heating
element
Detergent
(p. 15)
4-way
HYDRO SWEEP*
spray arm
(p. 24)
Overflow
protection
float
(p. 24)
Rinse
agent
dispenser
(p. 18)
Fold-down tines, upper rack (p. 9)
Stemware holders (p. 10)
Sure-Hold clips (p. 10)
Fold-down tines, lower rack (p. 12)
