KitchenAid W10746327A - Door Removal and Replacement

7
WARNING
Electrical Shock Hazard
Disconnect power before removing doors.
Failure to do so can result in death or electrical shock.

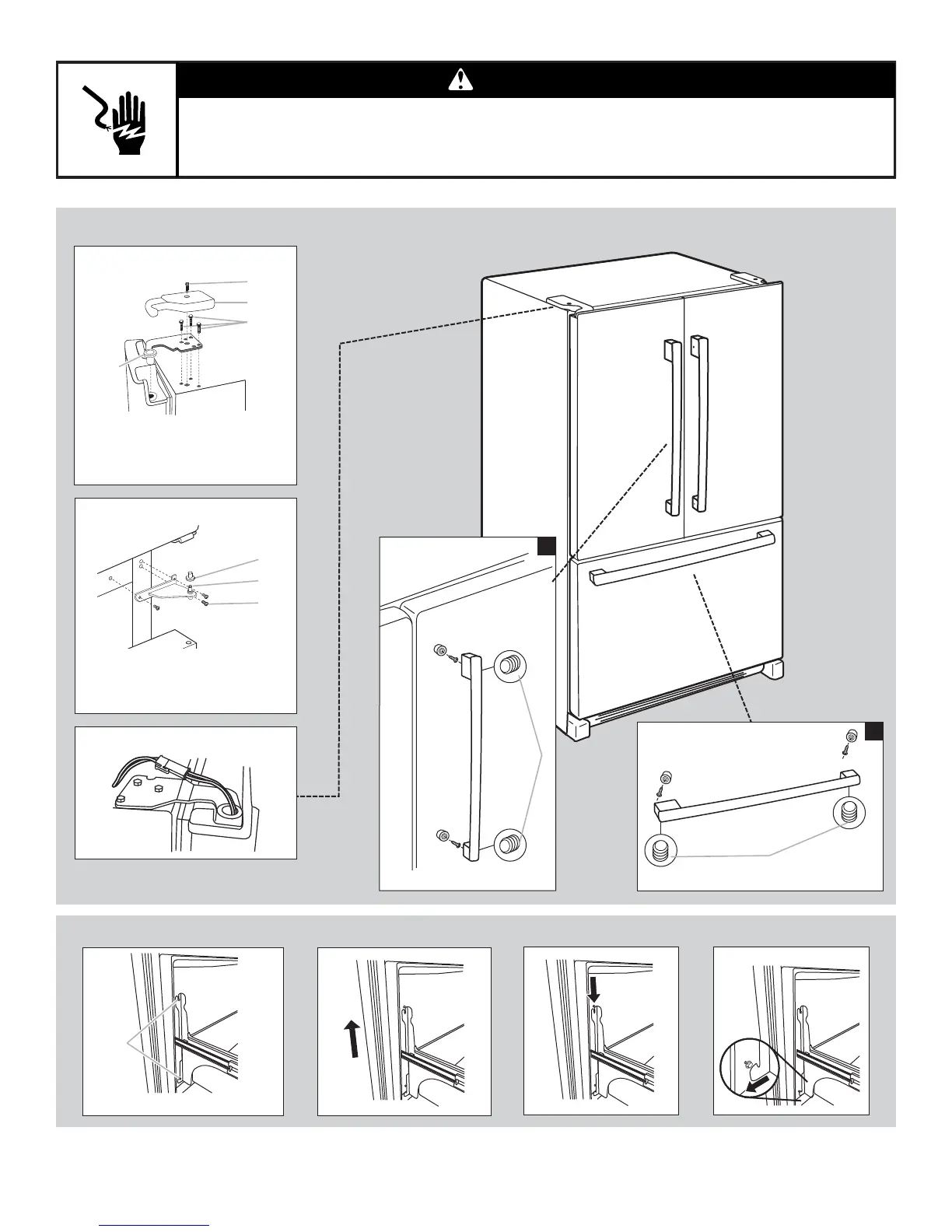

Door Removal and Replacement
A. Hinge Pin Cover
C. Hinge Screws
B. Bottom Hinge
Bottom Hinges
Wiring Plug
A
B
C
1
A. ³⁄₃₂ " or ¹⁄₈ " Setscrews
A. ³⁄₃₂ " or ¹⁄₈ " Setscrews
2
A
A
Drawer Front Removal
A. Loosen 4 Door Bracket Screws
A
Drawer Front Replacement
Top Hinges
A. Hinge Cover Screw
B. Top Hinge Cover
C. ⁵⁄₁₆" Hex-Head Hinge Screws
D. Top Hinge
B
A
C
D
