Kitz 150 SCTBZ Series User Manual

DocumentNo.：KE-1027-00                                       Sheet:2/29
Ⅰ ConstructionandDesignFeatures


1. ConstructionandDesignFeatures

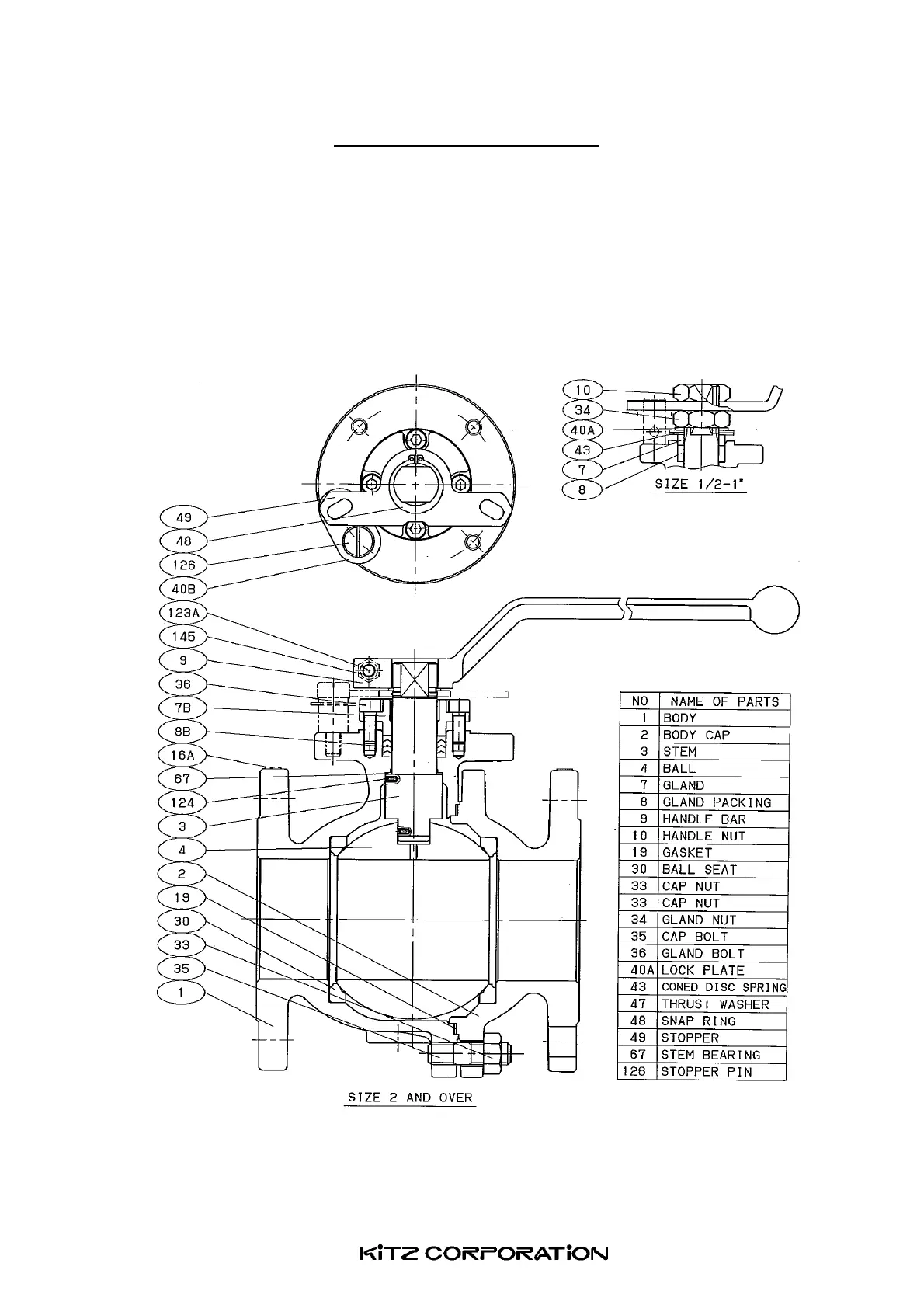

1.1 Thetypicalvalvedesignisasillustratedbelow.
1.2 Rangeofoperationfromfullopeningtofullclosingis90°.
1.3 The ball is supported by both ball seats. When the valve is pressurized, the ball moves
againstthedownstreamseattocompletetheseal,shuttingoffflowofthelinefluid.
1.4 Thisballvalvedesignmaybeusedonapplicationswhereabi-directionalflowisneeded.


Thisillustrationrepresentsatypicalconstruction.
