MULTIPURPOSE WIRELESS VIDEO DOOR PHONE INTERCOM SYSTEM
WITH MULTI MONITOR
www.elmic.pl, elmic@elmic.pl
Key introduction:
A. Indoor monitor keys
（
6pcs Key
）
:
1. （OK key）: work as a off-hook key and a on-hook key; as a speaking key, one of the key to choose one-way or both-way
talkback function.
2. （↑UP / Video key）: work as option key for MENU, as video key when calling or monitoring, as option key when
calling extension monitor.
3. （↓DOWN// Photo key）work as option key for MENU, as photo key when calling or monitoring, as entrance key for
exposure adjust, as option key when calling extension monitor.
4. “EXIT / monitor” key: work as monitor key for standby mode, as exit key for MENU，one of the key to choose one-
way or both-way talkback function.
5. “MENU / unlock” key: work as unlock key when communicating with outdoor unit, as right moving key for time
setting, MENU key for standby mode.
6. Switch key”ON/OFF”: work as infrared lamps switch while communicating, for exposure adjustment.
B. Outdoor unit keys
1. Doorbell key “Call”: ring the bell and trigger photo or video taking there is no one on-hook.
2. Reset: match the communication code with the handset

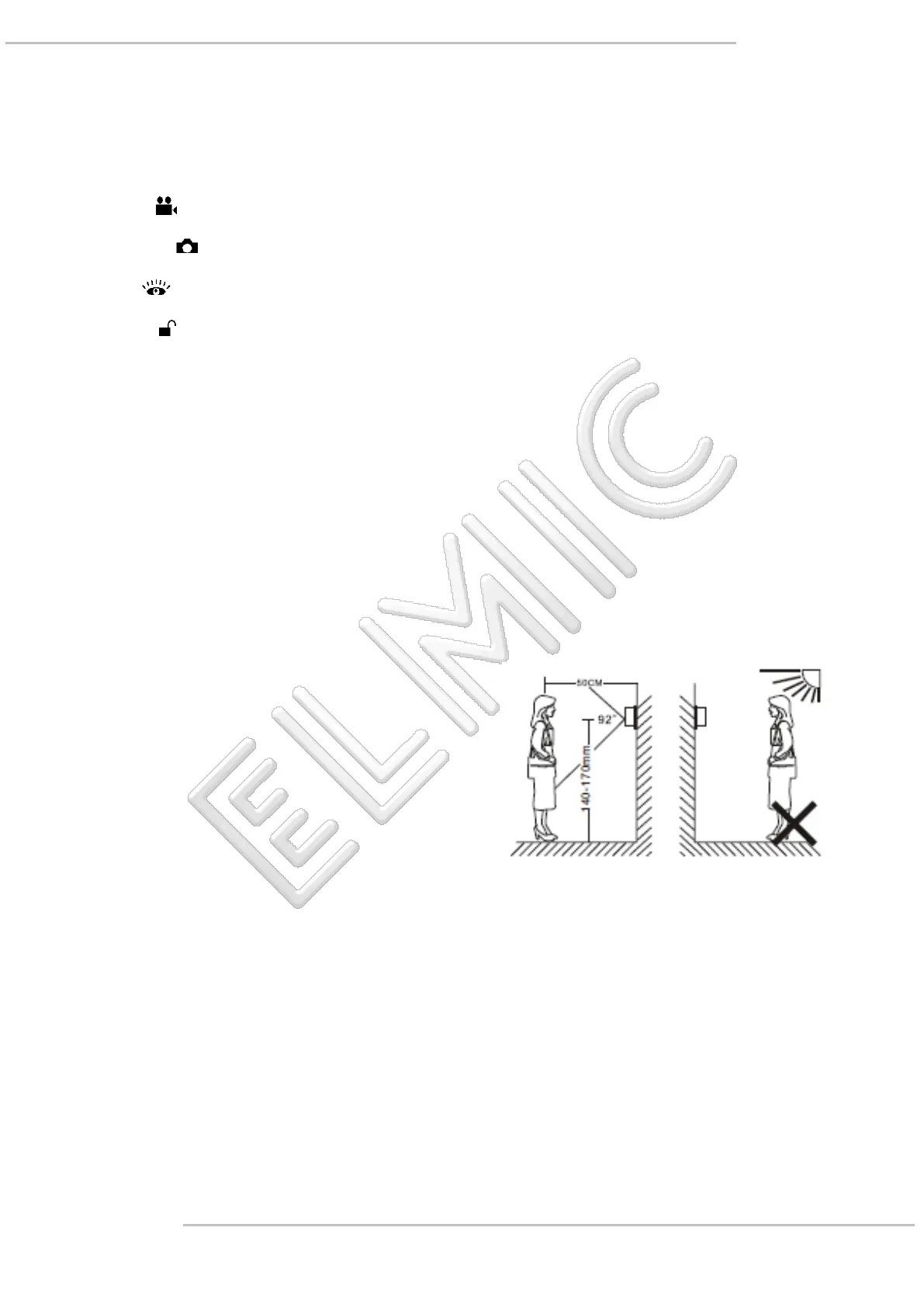

Installation Guide
Outdoor unit shall be installed at 1.4~1.7 meter above the floor, and the camera shall avoid facing the sunlight directly.
