KKT KOLBE EBMS4503S - Control Panel and Display

45
EN
Your new appliance
Sensor keys
1
Start
2
Stop / cancel
Key lock / Child lock
3
Steam cooking functions
4
Non-steam cooking functions /
Microwave and oven functions
5
Time setting
(time of day / cooking duration)
6
Activation of parameter settings
7
Opening the water tank
8
Pre-heating function
Automatic programmes
9
Decreasing the parameter settings /
Scrolling back through the options
10
Increasing the parameter settings /
Scrolling forward through the options
Display icons
11 Water tank - level indicator
Water tank completely lled
Water tank empty /
Filling necessary for steam operation and
cleaning
12 Key lock status display
Key lock / child lock activated
13 Time display
Clock display
Cooking duration
14 Display of power setting and cooking quantity
Power setting
in microwave mode
Setting the cooking/thawing quantity
in automatic programmes
15 Heat level and automatic programme display
Set cooking temperature
Set grill level
Automatic defrost
Automatic programme (without steam)
Automatic steam cooking programme
16 Operating display of the functions
Steam cooking
Microwave
Oven
Defrost
Automatic programme
Pre-heating
17 Operating display of the cooking chamber ele-
ments / Heating types
Hot air /
Fan + Ring heater
Convection grill /
Fan + grill element
Grill /
Grill element
Steam
Icon combinations and description of the cooking functions see corresponding table

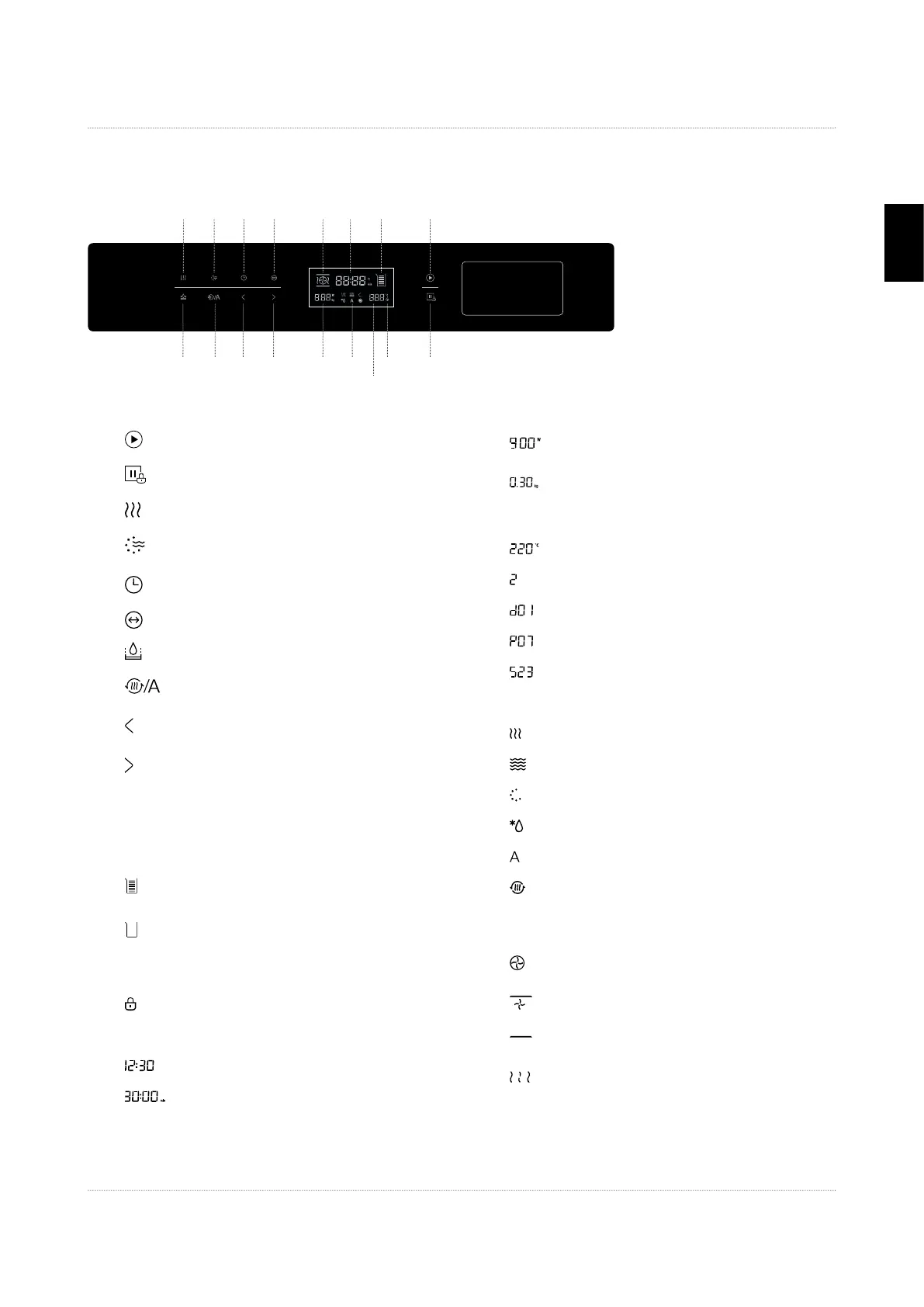

Control panel and display
173
147 8 9 10 2
134
16
11 15 6
15
12
