Specications

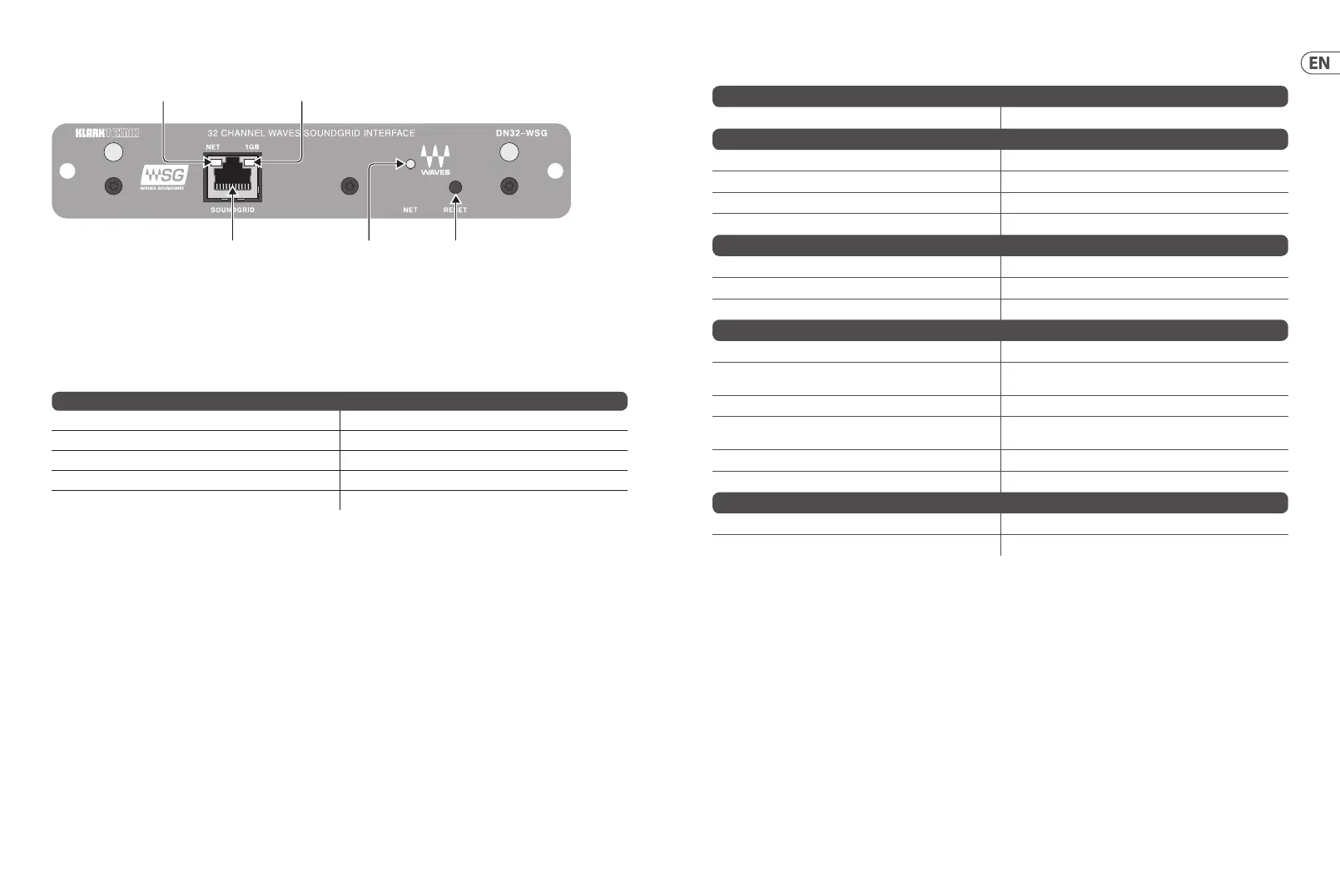

6. Basic Setup
Green Ethernet LED
Ethernet Port NET LED
Yellow Ethernet LED
RESET Button
For a simple connection between a computer with WAVES SoundGrid and the X32, simply connect the included Ethernet cable to the
port on the DN32-WSG, and to the computer’s Ethernet port. WAVES also supports more complex connections that allow external
processing of eects to conserve the computer’s processing. See waves.com for more details.
The yellow LED on the right side of the Ethernet port will light to indicate a 1 Gigabit Ethernet connection.
The green LED on the left side of the Ethernet port will light when connection is achieve, and blink to indicate Ethernet activity.
The NET LED will light dierent colors depending on the connection state:
Condition LED Color
Firmware update Yellow
Device is up, but SoundGrid network is not found Flashes red
SoundGrid network found Blue
Device ID mode Revolving colors
Hardware error state White
Press the RESET button to return the DN32-WSG to its factory state.
s
Connectors
RJ45, Gigabit Ethernet 1 Gbit/s, 100 Mbit/s 1
Input/Output Characteristics
Input/Output channels 32 / 32
Sample rates 44.1 kHz / 48 kHz
Sample word length 24-bit PCM
Clock synchronization Console sync-over-Ethernet (SoE)
Indicators
Ethernet link, LED in socket, ashes with network activity Green
1 Gbit/s Ethernet link, LED in socket Yellow
Network LED RGB
System Requirements
CPU Intel Core i5 / i7 / Xeon / AMD Quad-Core
Memory
8 GB RAM
8 GB free disk space on the system drive
Network Wired Ethernet interface, 1 GB/s
Screen resolution
Minimum: 1280 x 768
Recommended: Full HD
Windows OS Windows 10 64 bit
Mac OSX 10.11.6 - 10.14
Physical
Dimensions 30 x 165 x 138 mm (1.2 x 6.5 x 5.4")
Weight 0.14 kg (0.3 lbs)
Please refer to waves.com for most up-to-date system requirements of WAVES application software.
