P. 2
• Never place the unit where it could be subject to mechanical vibration or shock or lack of ventilation.
• During assembling or dis-assembling the fan may not connect to the electric circuit. Connect to the mains supply
only after the fan has been fully and correct assembled.
• Do not place the power cord under the carpet or hang the carpet not over the power cord. The power cord should
not cross any passage of people or articles to avoid tripping hazard or damage of the device.
• Pay attention to the security of your children and keep away all packaging parts (plastic bag, cardboard, styropor
etc.) from them.
These instruction for use belong to the appliance and must be kept in a save place. When changing owners, this
instruction must be surrendered to the new owner.
Packing:
• After unpacking the appliance, check the same for transport damage and the contents for completeness! In the
event of damage or an incomplete delivery, contact your authorized retailer!
• Do not discard the original box! It can be use for storage and dispatch to avoid transport damage.
• Dispose of the packing material in a proper manner. Plastic bags should keep away from children!

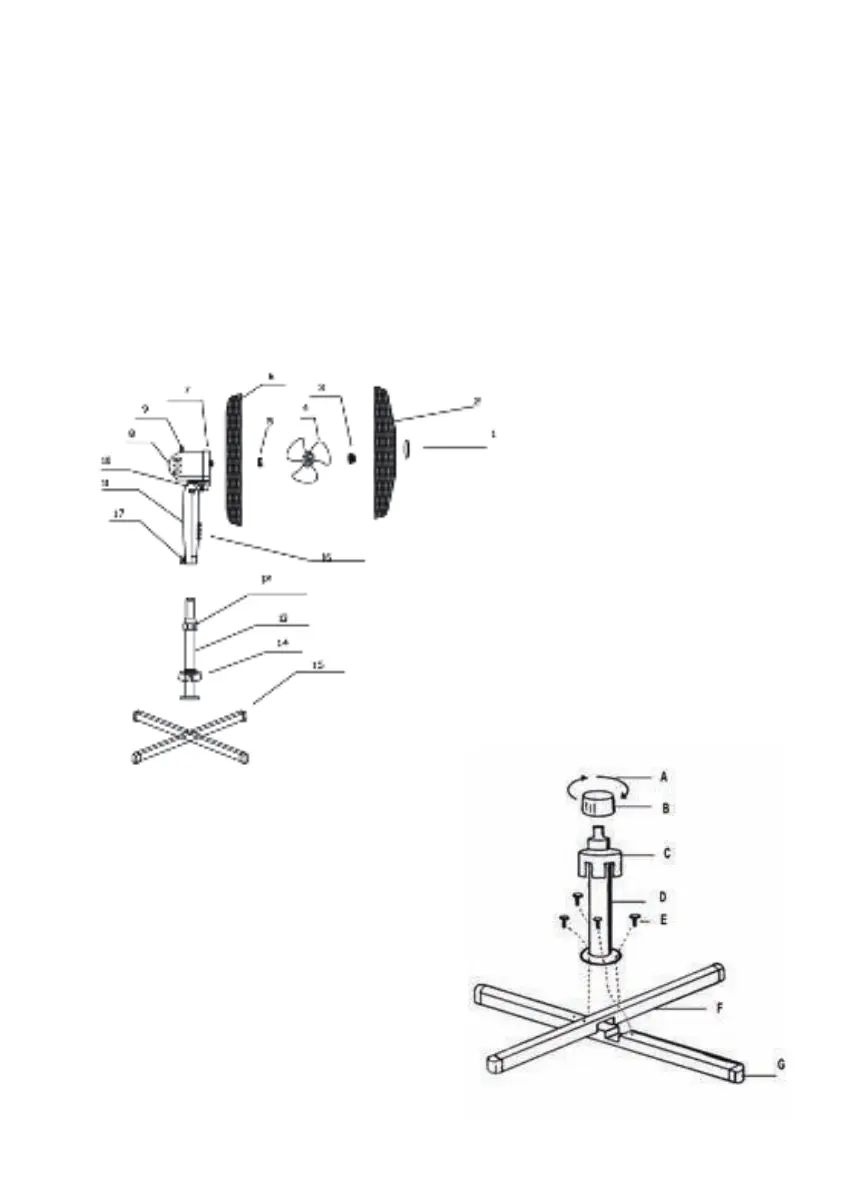

Description :
1) Guard ornament
2) Front grille
3) Blade retaining knob
4) Fan blade
5) Grille retaining ring
6) Rear grille
7) Motor shaft / Motor front
8) Motor housing
9) Oscillating control knob
10) Motor housing assembly/
Tilt adjustment knob
11) Switch compartment
12) Height adjustment ring
13) Lower metal pipe incl. inner pipe
14) Base ornament
15) Feet
16) Fan control switches
17) Retaining screw
Assembly
Caution! The fan should always be switched off
and does not connected to the mains supply,
if you mounting the fan.
Columns assembly :
A) Direction of rotation
B) Height adjustment ring
C) Base ornament
D) Lower metal pipe incl. inner pipe
• Assembly the feet (F) across and place the lower metal pipe
(D) upon the feet and fix it with the 4 screws provided.
• Loosen and remove the height adjustment ring (B) and pull
the base ornament (C) over the lower metal pipe (D).
• Let the Base ornament (C) slide over the mounted feet.
• If the caps from the feet are not mounted, please attach them.
• Pull the inner pipe till the end out of the lower metal pipe (D)
and slide the height adjustment ring (B) over the inner pipe onto lower metal pipe and tighten.
E) 4 screws
F) Feet
G) Caps
