P. 3
Attention:
Height adjustment ring must be fully fastened before start the assembly of the motor section
to the stand.
Assembly of switch compartment, motor and grille :
• Unscrew the retaining screw(17) on the switch compartment (11) and attach the motor with switch compartment
(11) onto the upper (inner) pipe (13).
• Catch the retaining nut in the intended slot on the upper end of the inner pipe (13). Ensure the switch compartment
is pushed fully onto the upper (inner) pipe and secured with the screw provided.
Please assemble ahead as follows:
• Unscrew the blade retaining knob (3) from the motor shaft (7) by rotating it clockwise.
• Unscrew the grille retaining ring (5) by rotating it anti-clockwise.
• Position the rear grille (6) on the motor shaft/motor housing (7) and ensure that the locating pegs are engaged
correctly in the holes in the grille.
• Screw the rear grille with the grille retaining ring (5) by rotating clockwise and tighten firmly.
• Place the fan blade (4) onto the motor shaft (7), locating the slot at the back of the blade on the drive pin that
passes through the motor shaft (7).
• Screw the fan blade (4) with the blade retaining knob (3) counter clockwise.

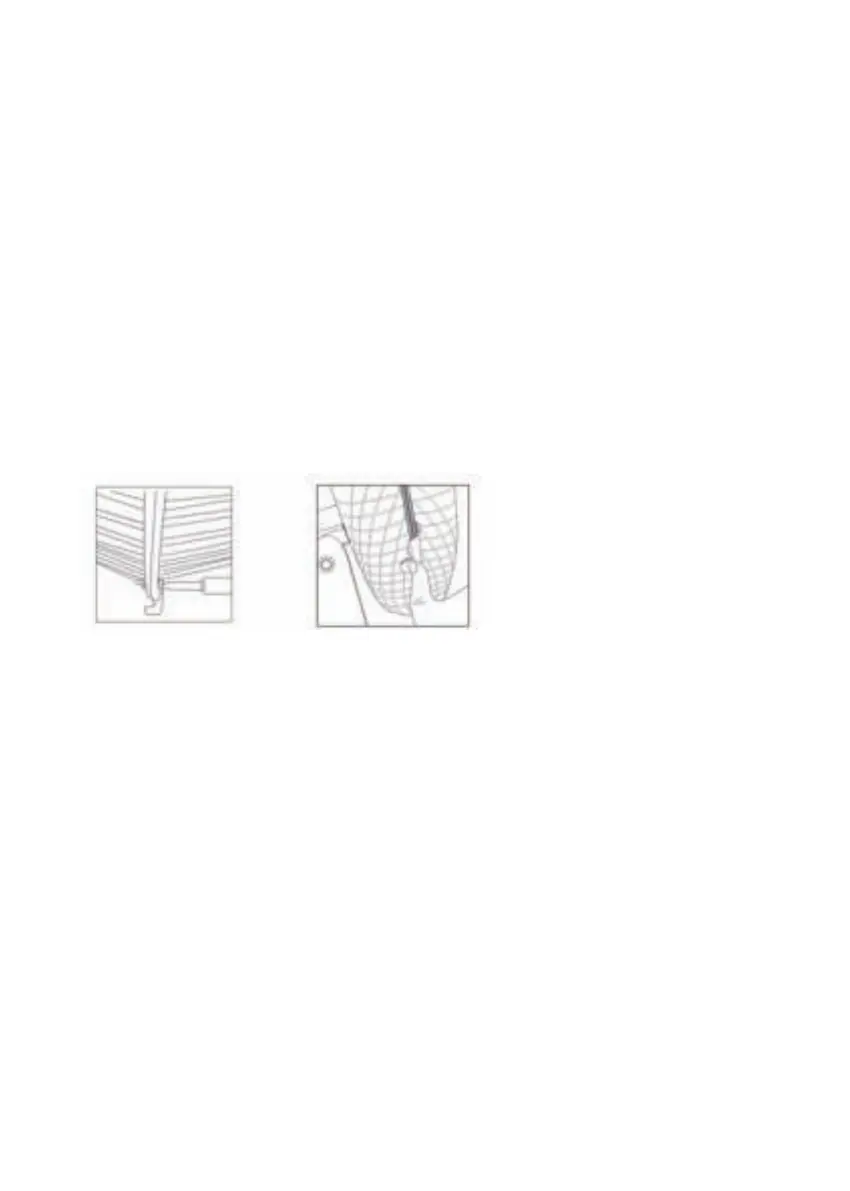

• Un-screw the locking screw mounted on the grille. Mount front grill (2) onto the rear grille (6) with the small round
hole matched for passage of locking screw. Fix both grilles with the clips then use screw driver to tighten the locking
screw – s. Figures:
Operating Instruction:
Connect to the mains supply only after the fan has been fully and correct assembled!
• Place the fan on a stable, flat, dry surface and look for a firm and secure stand.
• Check the fan is switched off.
• Insert the plug of the fan into a suitable socket outlet. The fan is ready to operate.
• By pushing the fan control switch (16) you can choose the speed levels of the fan.
0 = OFF
1 = low speed
2 = medium speed
3 = high speed
Oscillation:
• When you push and pull the oscillating control knob (9) you can switch the oscillating function ON or OFF.
Adjustments:
Caution: The fan should always be switched off and disconnected from the mains supply
when making this adjustment:
• To adjust the air flow upward or mild downward, simply loosen the tilt adjustment knob and move to desired angle
then retighten the tilt adjustment knob.
• The height of the fan can be adjusted by loosening the height adjustment ring (12) carefully raising or lowering the
fan and firmly retightening the height adjustment ring.
Switch off the Fan:
• The fan is connected to the mains supply and ready to operate as long as it is plugged in.
• To completely switch off the fan, set the speed button to position „0“ (Off) and pull the power plug from the socket
outlet.
• Always disconnect the mains plug from the socket outlet when the fan is not in use.
Pay attention that all fan parts
are correct and firmly connected
with each other.
