Klein + Hummel O110 - Frequency Response (free field); THD, 2 nd and 3 rd order distortion; Group Delay; Cumulative Spectral Decay Plot

Active Studio Monitor O 110 Page 7

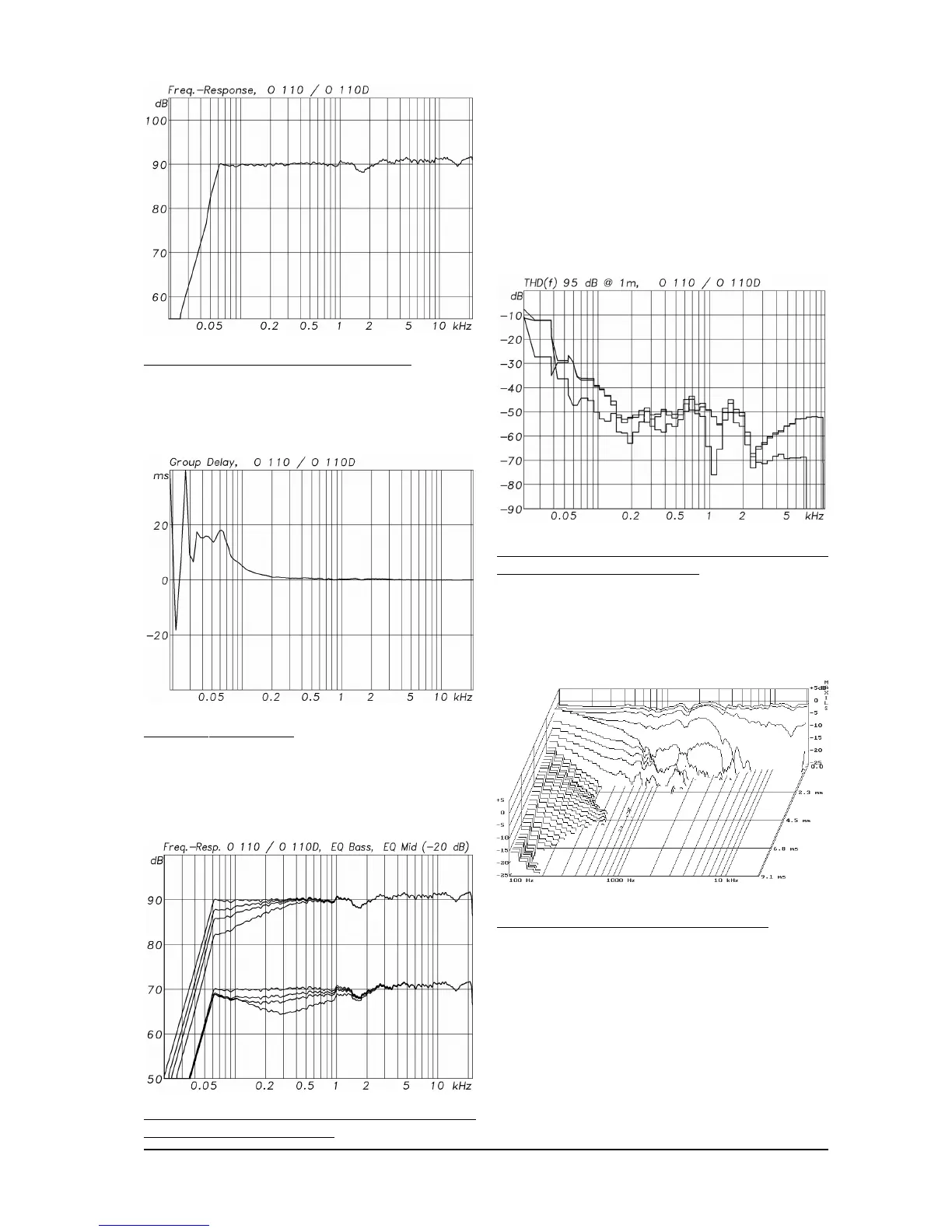

Figure 8: Frequency Response (free field)
Figure 9: THD, 2 nd and 3 rd order distortion
@ 95 dB/SPL and 1 m distance
Figure 10: Group Delay
Figure 11: Cumulative Spectral Decay Plot
The loudspeaker’s cumulative spectral decay plot
indicates a very clean decay without any major
resonances or standing waves being evident.
Figure 12: Equalization BASS (upper set of curves)
and MID (lower set of curves)
