Components Shipped
With Kleen Opener Kits
This manual uses a Right
Side kit as an example. All
information and steps apply
to Left Side kits as well.
When shipped the
Kleen Opener is partially
disassembled.

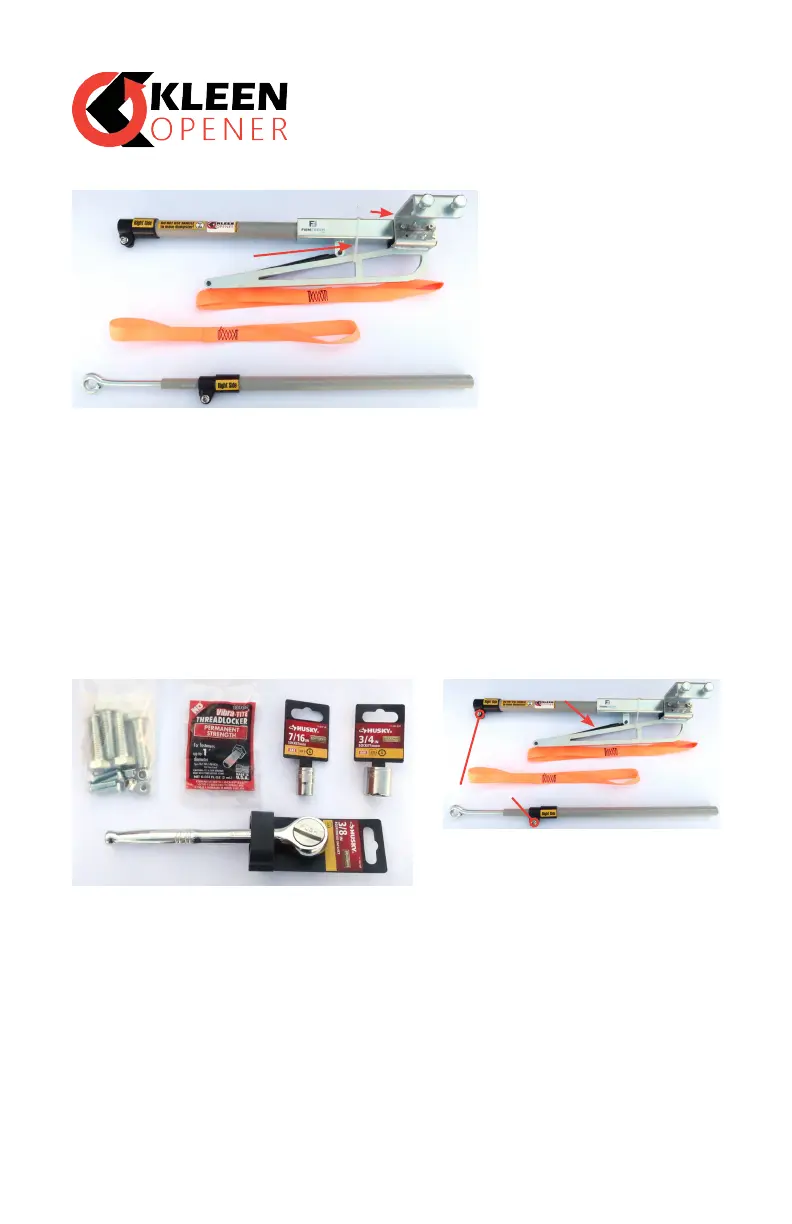

Your Right Side kit comes with three tubes - the larger adapter tube attached to the
mounting bracket, the intermediate tube, and the end tube with the eyelet bolt.
Each kit comes with two orange pull down straps.
Make sure your kit(s) come with coordinating left vs right side tubes. Tubes are labeled
accordingly.
DO NOT REMOVE THE NYLON TIE UNTIL INSTRUCTED
For your safety leave the nylon tie attached to the mounting bracket. This holds the gas spring and
arm in place while you mount. Removing the tie before instructed can lead to injury.
Adapter Tube
Intermediate Tube
Eyelet Bolt
End Tube
Pull Down Straps
Mounting Bracket
DO NOT REMOVE
Other components to note are
the clamp bolts and gas spring.
Gas Spring (black)
Clamp Bolts
Extras Included with the Kleen Opener Kit:
• Threadlocker
• 2 extra orange pull down straps for a longer reach
• Bag of Extras:
- four 1/4” x 1” Clamp Bolts
- four longer 1/2” x 1 3/4” Mounting Bolts
- four Nylon Lock Nuts with Flange
TOOLS NEEDED FOR INSTALLATION not included
(These items come in our Installation Tool Kit for purchase on kleenopener.com)
• 3/8 in. ratchet
• 3/4 in. socket
• 7/16 in. socket
