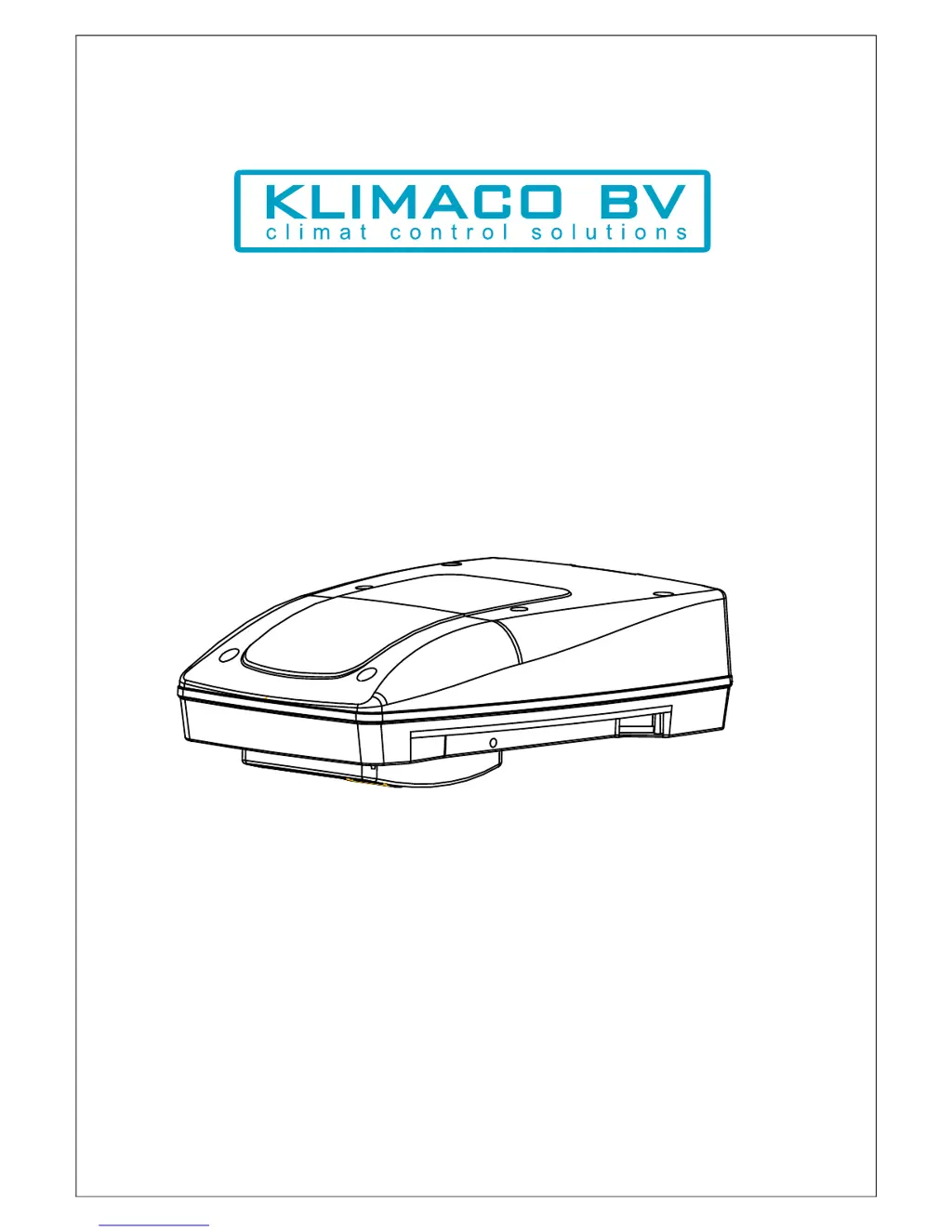

- 1 -

Operation and Installation Manual

For Vehicle Air Conditioner

Model: KL-5200

Before installation and using this unit, please read it carefully.

Keep this manual for future reference.

Imported by

KLIMACO BV The Netherlands

Questions and Answers:

K
kellychristineAug 12, 2025
Why is my Klimaco BV KL-5200 blowing only air and not cooling?
- J
  James AustinAug 12, 2025
  If your Klimaco BV Air Conditioner is running only the fan without cooling, check if the ambient temperature is within the working range. Also, ensure the set temperature isn't too high by re-setting it to a lower setting. If these steps don't resolve the issue, the unit may have a problem such as no refrigerant, compressor damage, a defective outside fan, a defective control system, or a defective temperature sensor. In this case, call a specialized service technician for inspection and maintenance.
M
Meghan MartinezAug 15, 2025
How to troubleshoot Klimaco BV KL-5200 Air Conditioner that won't turn on?
- E
  Eric MckeeAug 15, 2025
  If your Klimaco BV Air Conditioner doesn’t start, the issue might be due to a power failure. You should check the power supply by calling an electrician. Also, the main switch or fuse may have been tripped; in this case, call your electrician. Finally, low power supply voltage may be the cause; call your electrician to resolve this.
