Klipsch CP-4T User Manual

CONNECTION
_
7.5 Watts
+
7.5 Watts
7.5 Watts
7.5 Watts
_
+
_
+
_
+
_
+
_
+
_
+
_
+
_
+
7.5 Watts 7.5 Watts
7.5 Watts
7.5 Watts

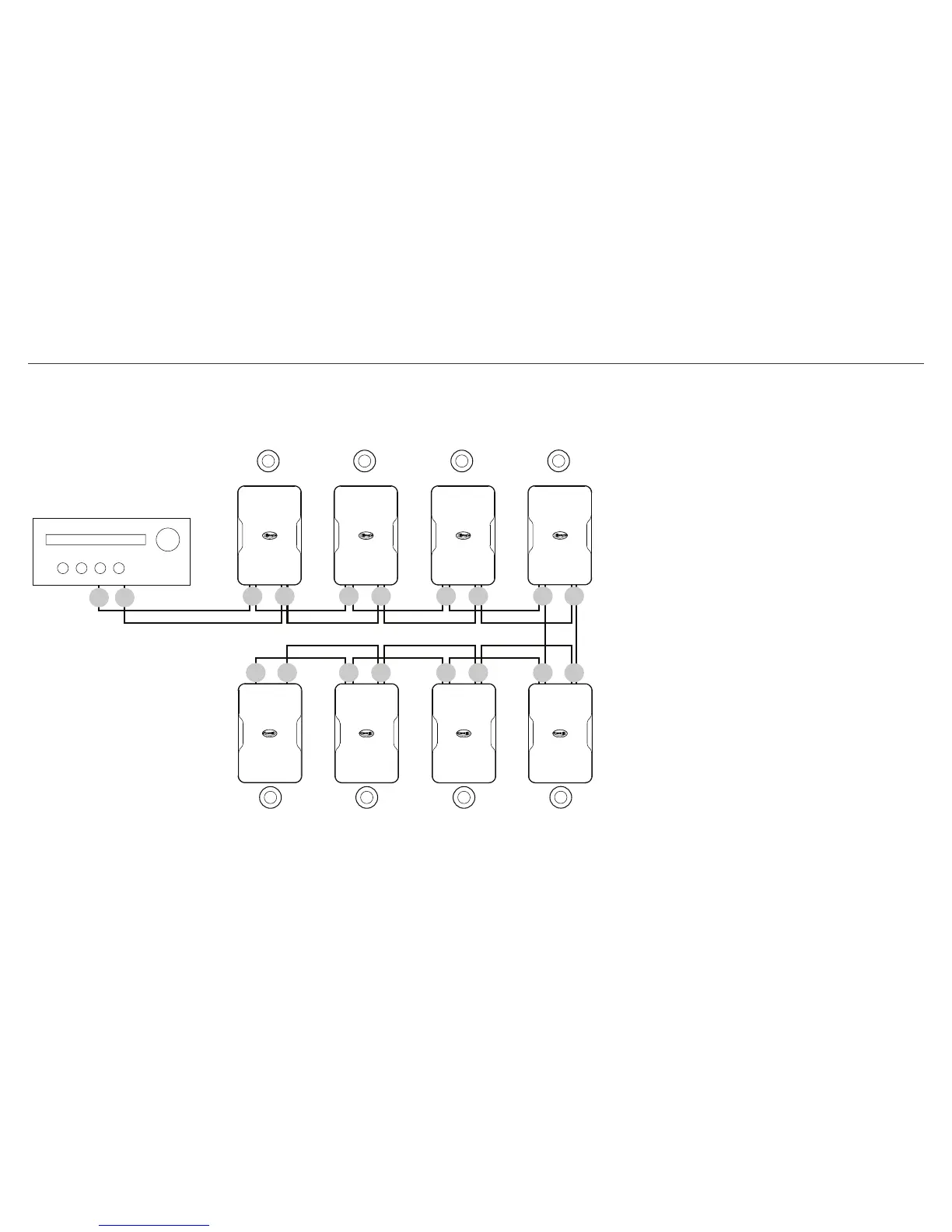

Parallel Wiring
70/100 Volt
Line Distribution Amp
Wire from amp to first speaker, then from first to second speaker, then from second to third speaker,
etc. (“Daisy Chain” wiring).
ALWAYS WIRE IN PARALLEL IN A 70 OR 100 V SYSTEM!
CP-6T Connection Example
Total System Wattage = Spk1 Tapped Watts + Spk2 Tapped Watts + Spk3 Tapped Watts +…….
It is recommended to add 50% additional wattage for the best sound and future system expansion
Total System Wattage =
7.5 + 7.5 + 7.5 + 7.5 + 7.5 + 7.5 + 7.5 + 7.5 + 7.5 + 7.5
Total System Wattage = 75 watts
Add 50% Additional Watts = 37.5 watts
Minimum 70 Volt Amplifier Power Needed:
112.5 = 120 Watt Amplifier

Klipsch CP-4T Specifications
